WII-CLIP V10 --->  Support wasabi2 version

Discuss :

Status: In stock now

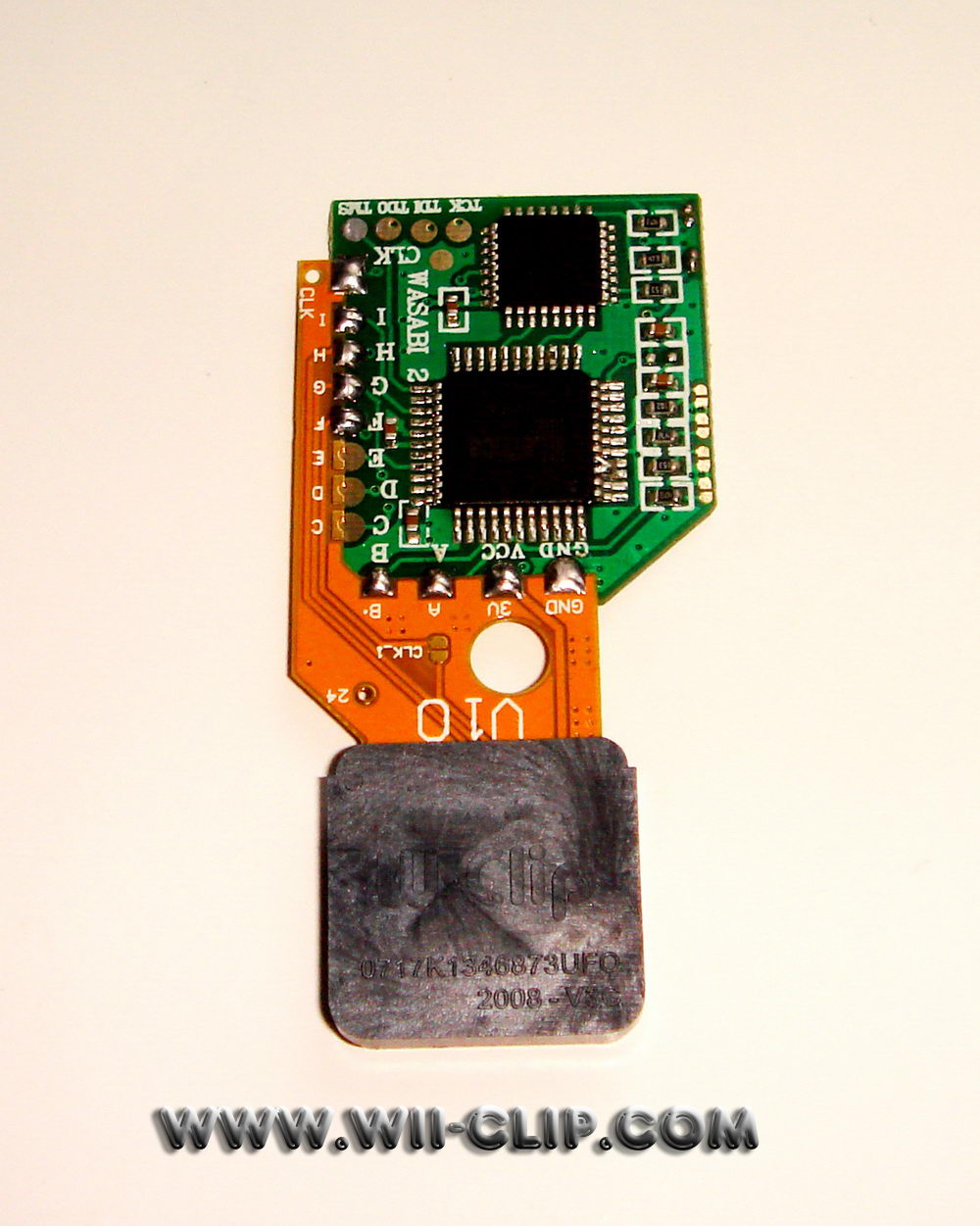

The WII-CLIP V10 for wasabi2 looking:

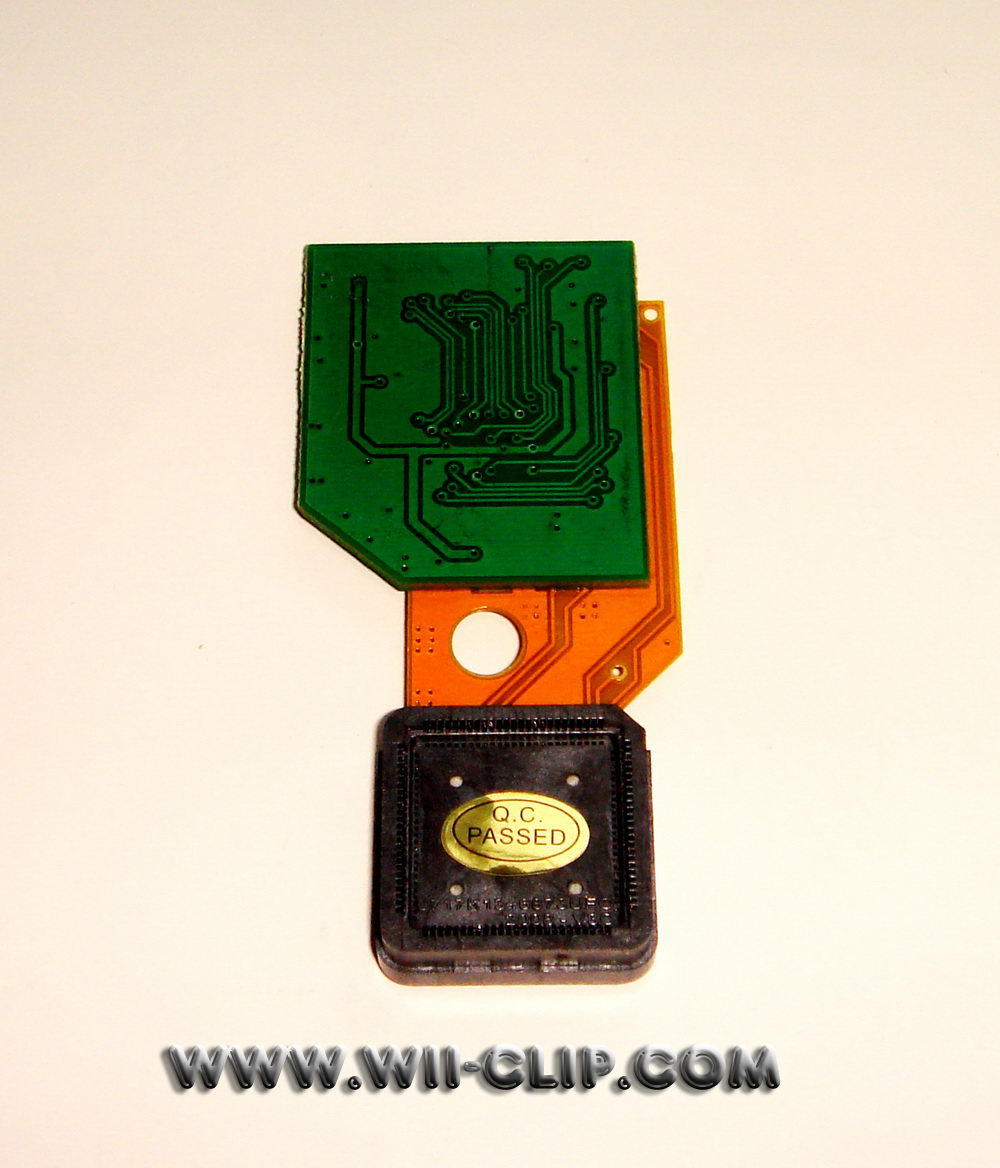

After soldered:






The old install diagram --- 9 wires:

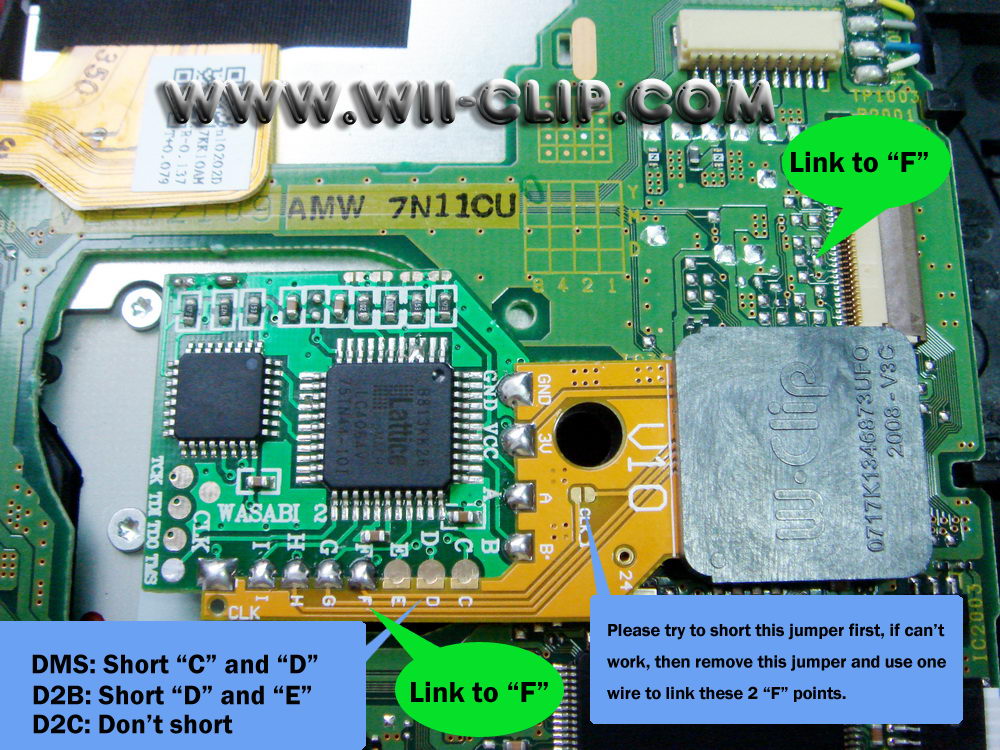

The V10 CLIP install diagram, firstly you just need short the "CLK" jumper, and test it, if it working fine, then  you don't need solder any extra wires again. This way should work with almost wii.

If this way don't work with you, please remove the "CLK" jumper and use one wire to link these 2 "F" points.

Warning: don't keep the "CLK" jumper and link 2 "F" points at the same time!
