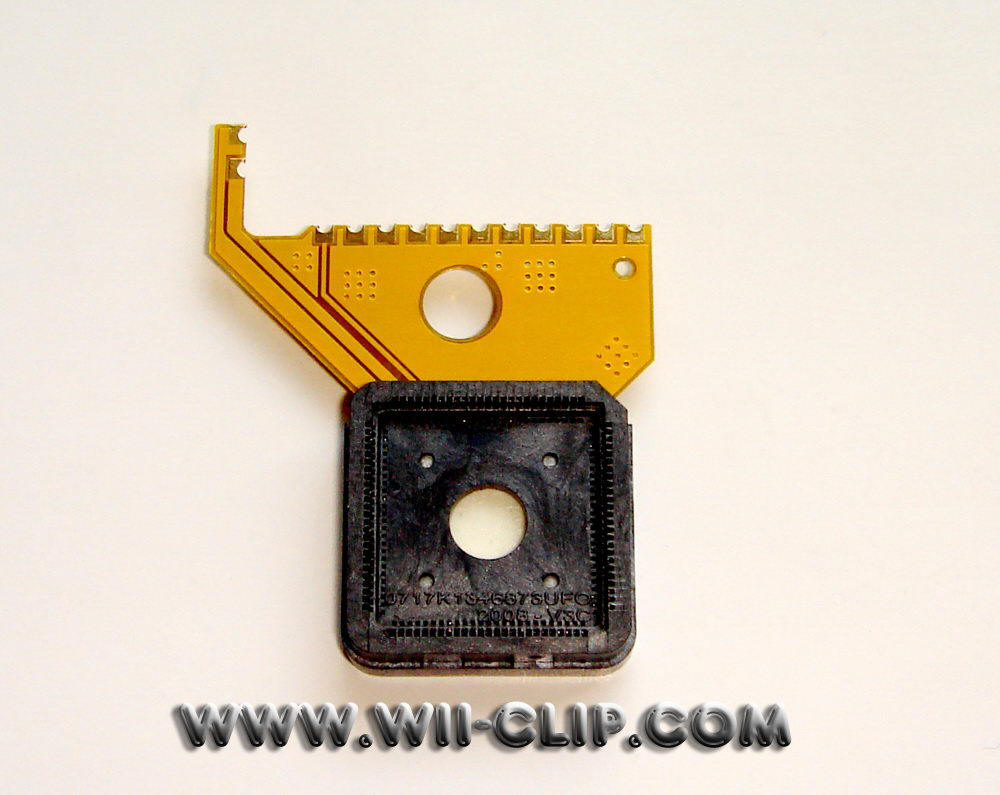

WII-CLIP V12 --->  Support D2SUN V2 and V3 series

Discuss :  WII-CLIP V12 ---> Support D2SUN-2 version



Status: In stock now

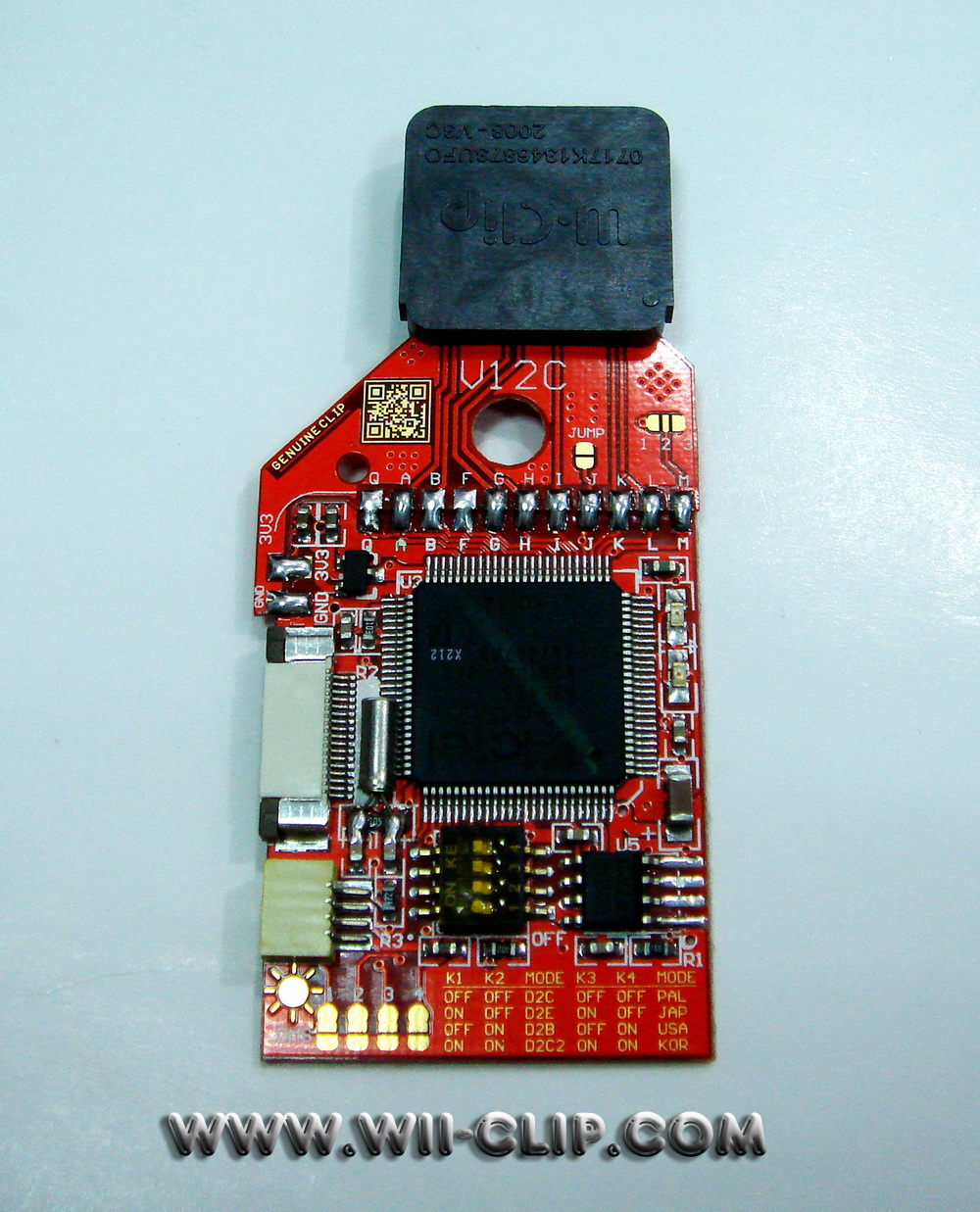

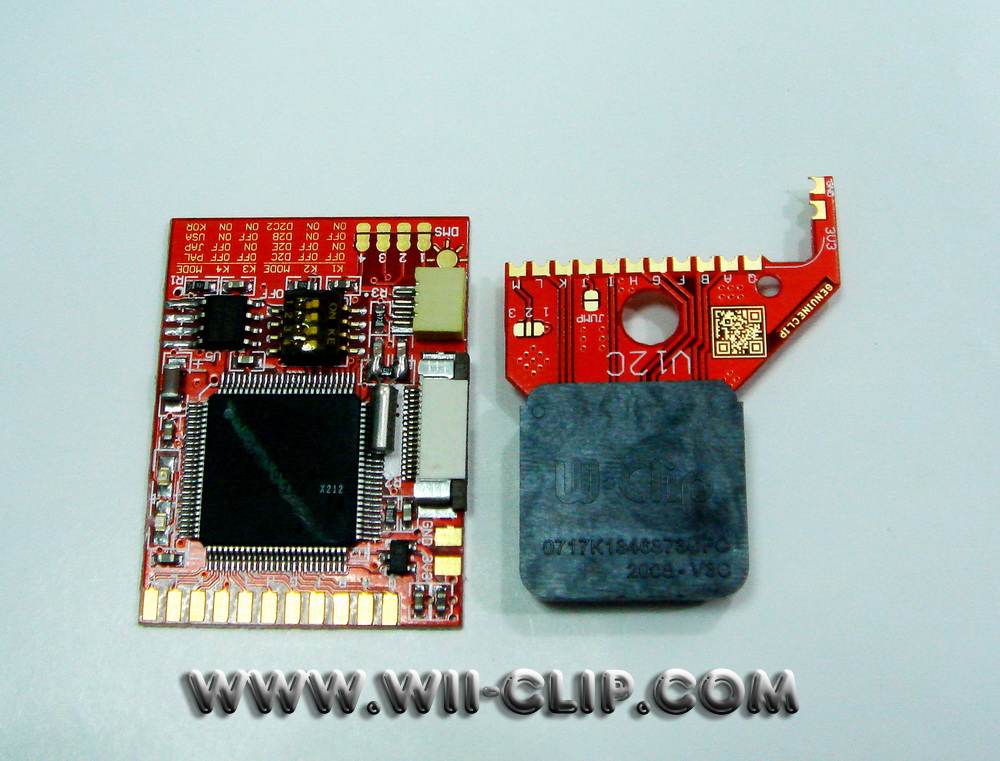

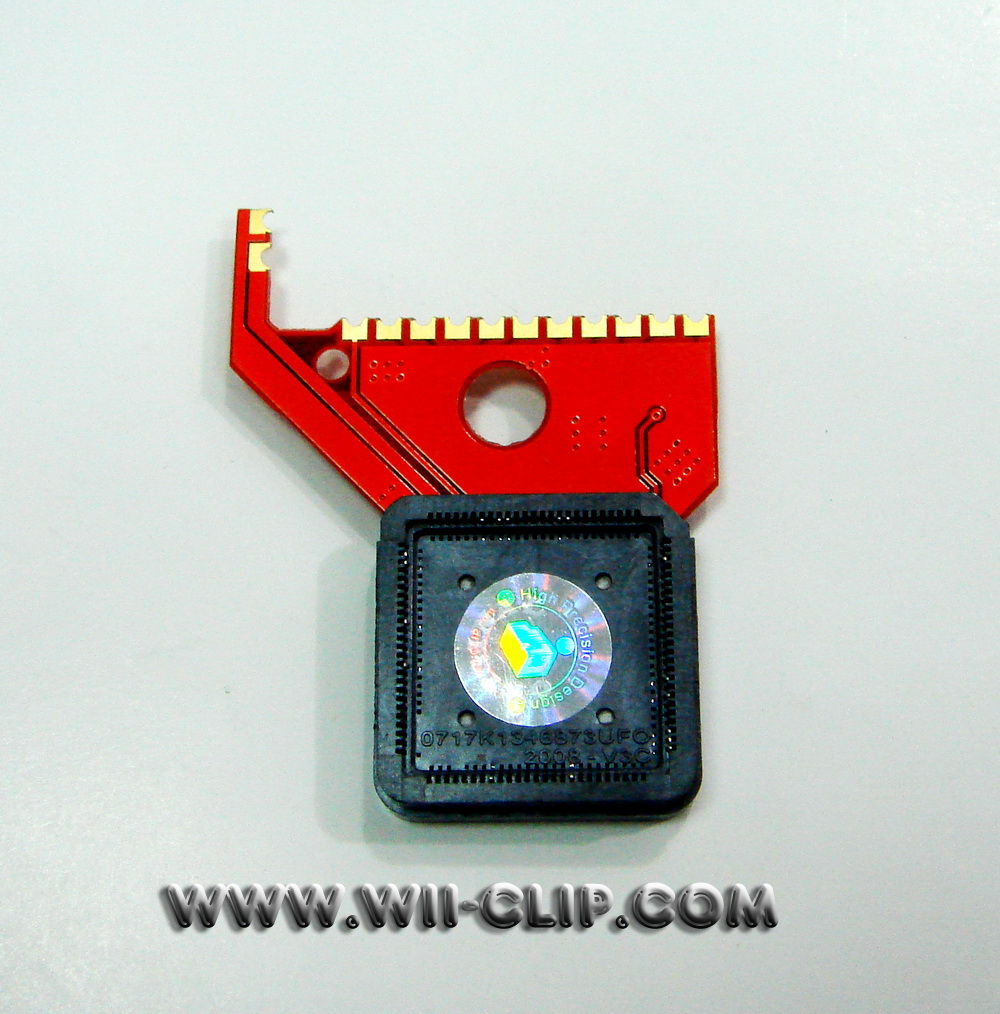

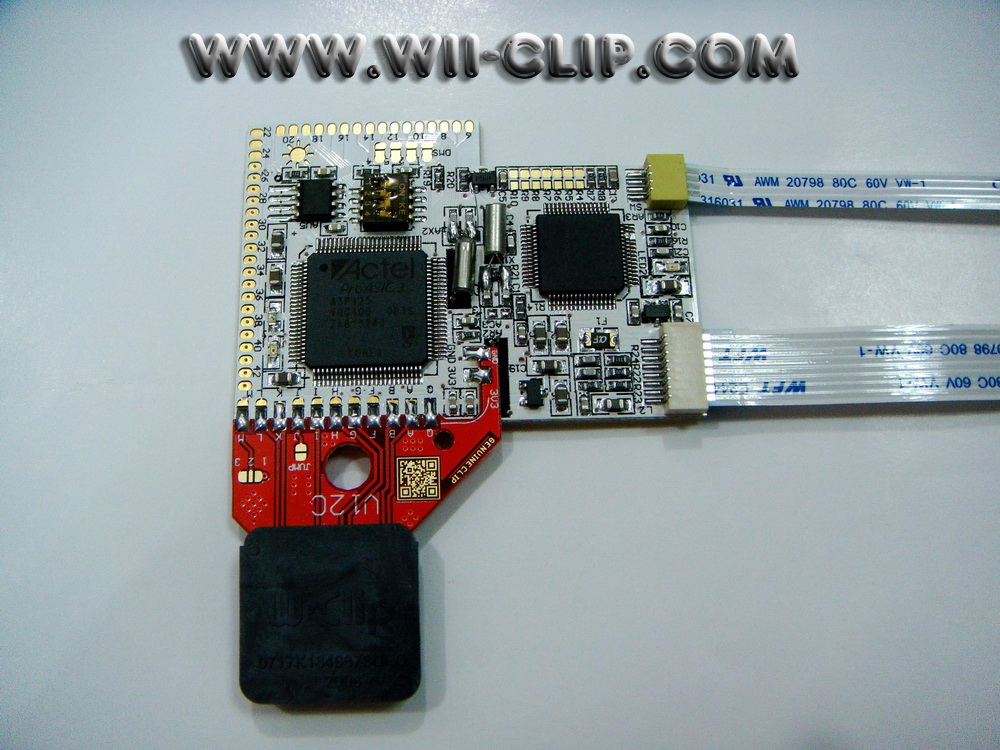

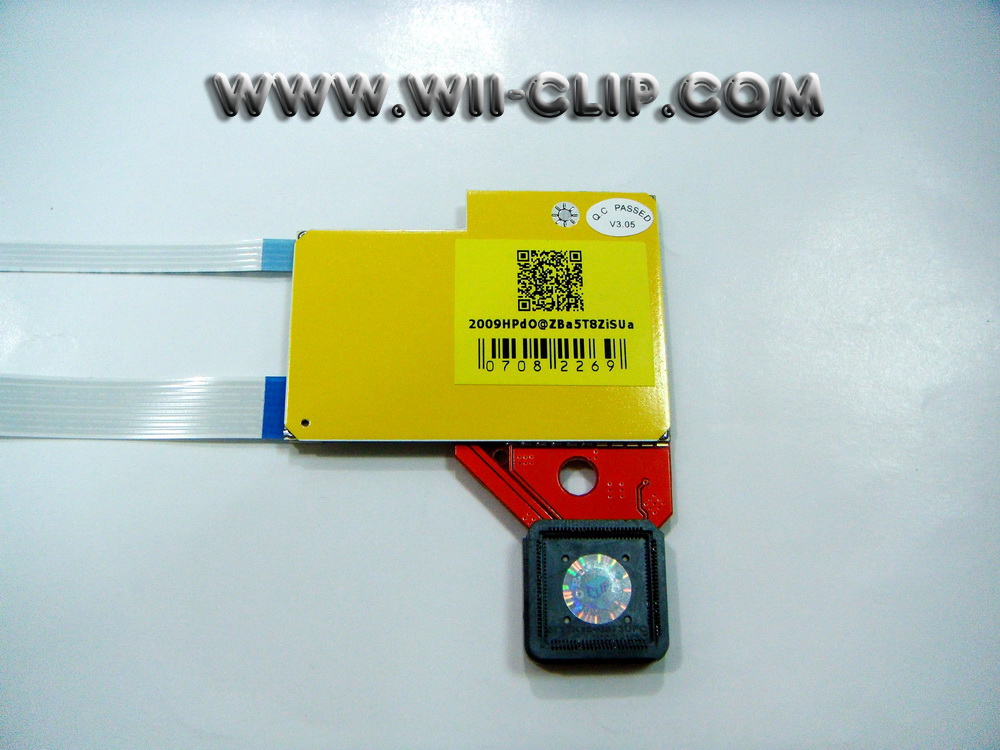

The last WII-CLIP V12C for D2SUN V3Pro

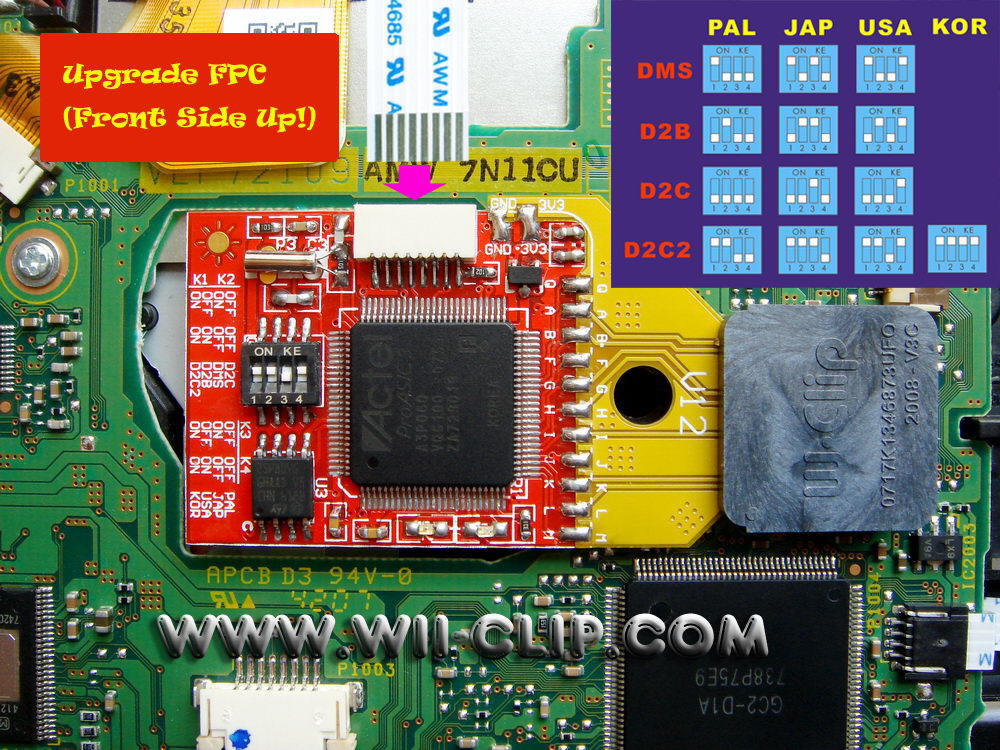

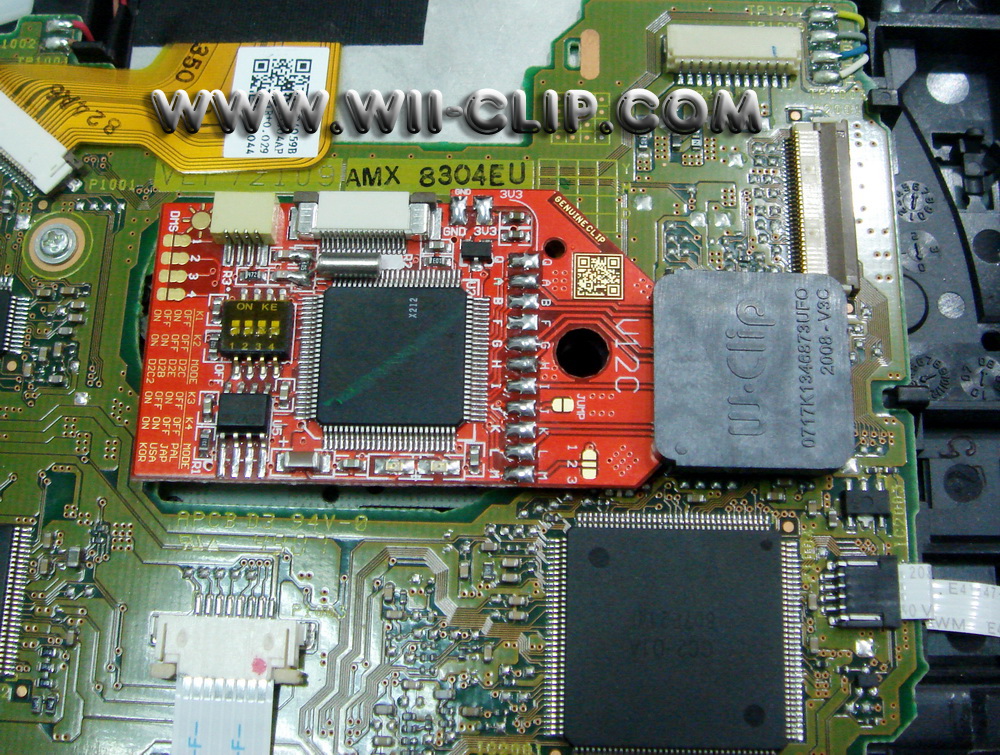

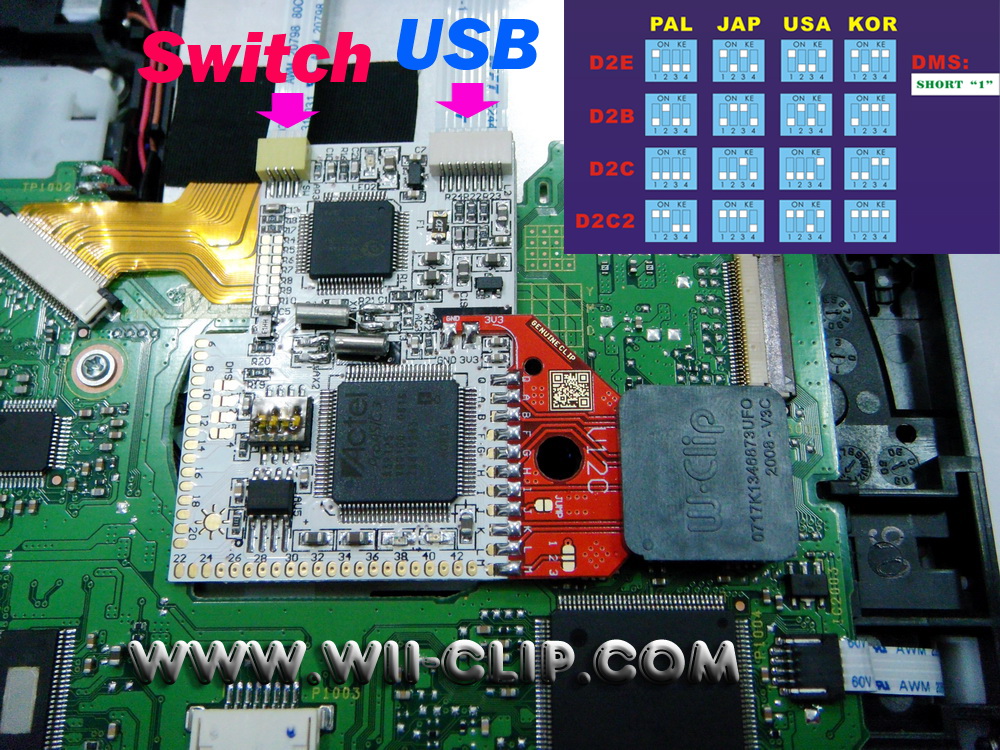

The new WII-CLIP V12C for D2SUN V3Pro install diagram: Zero wire need solder, plug and play!

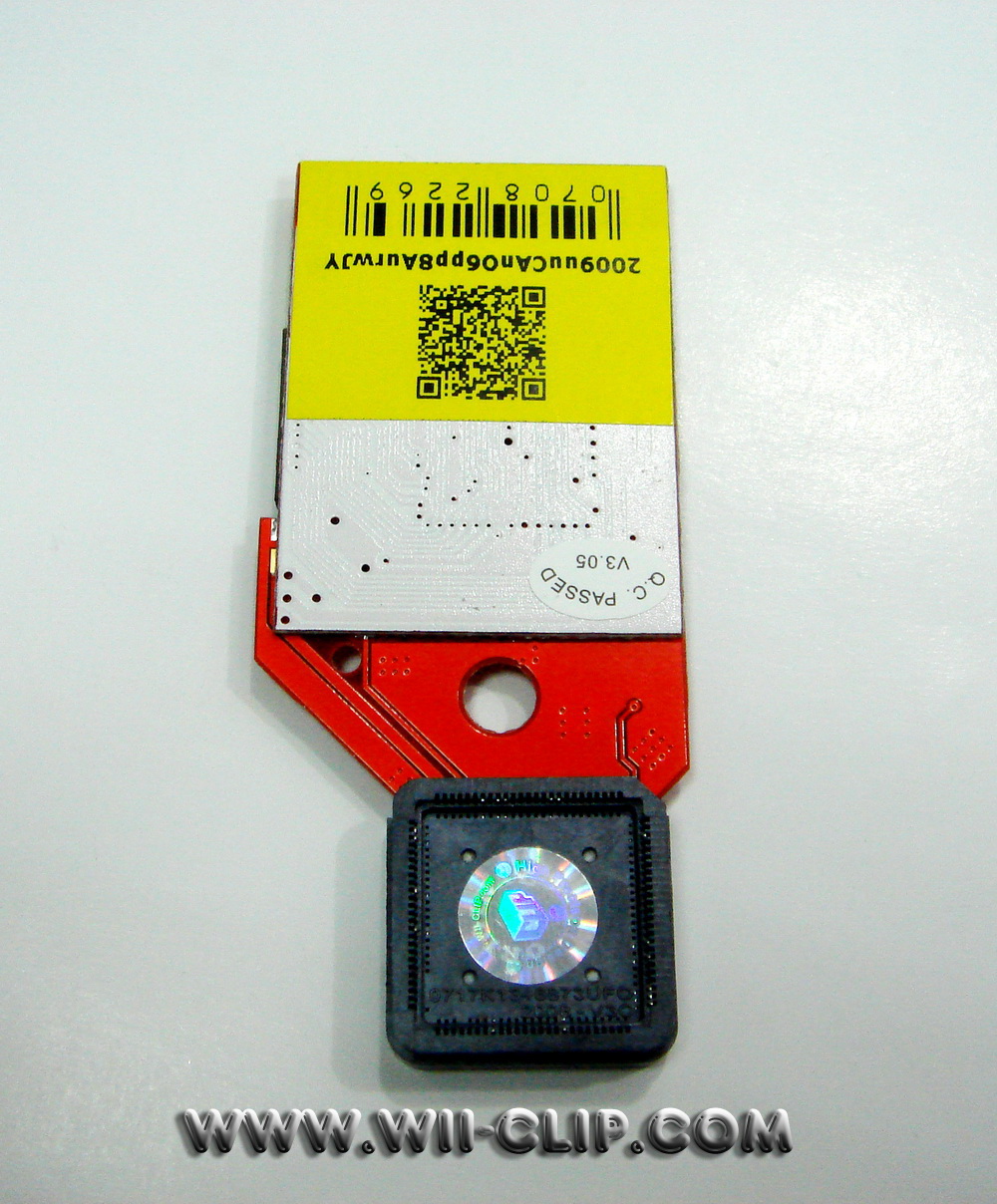

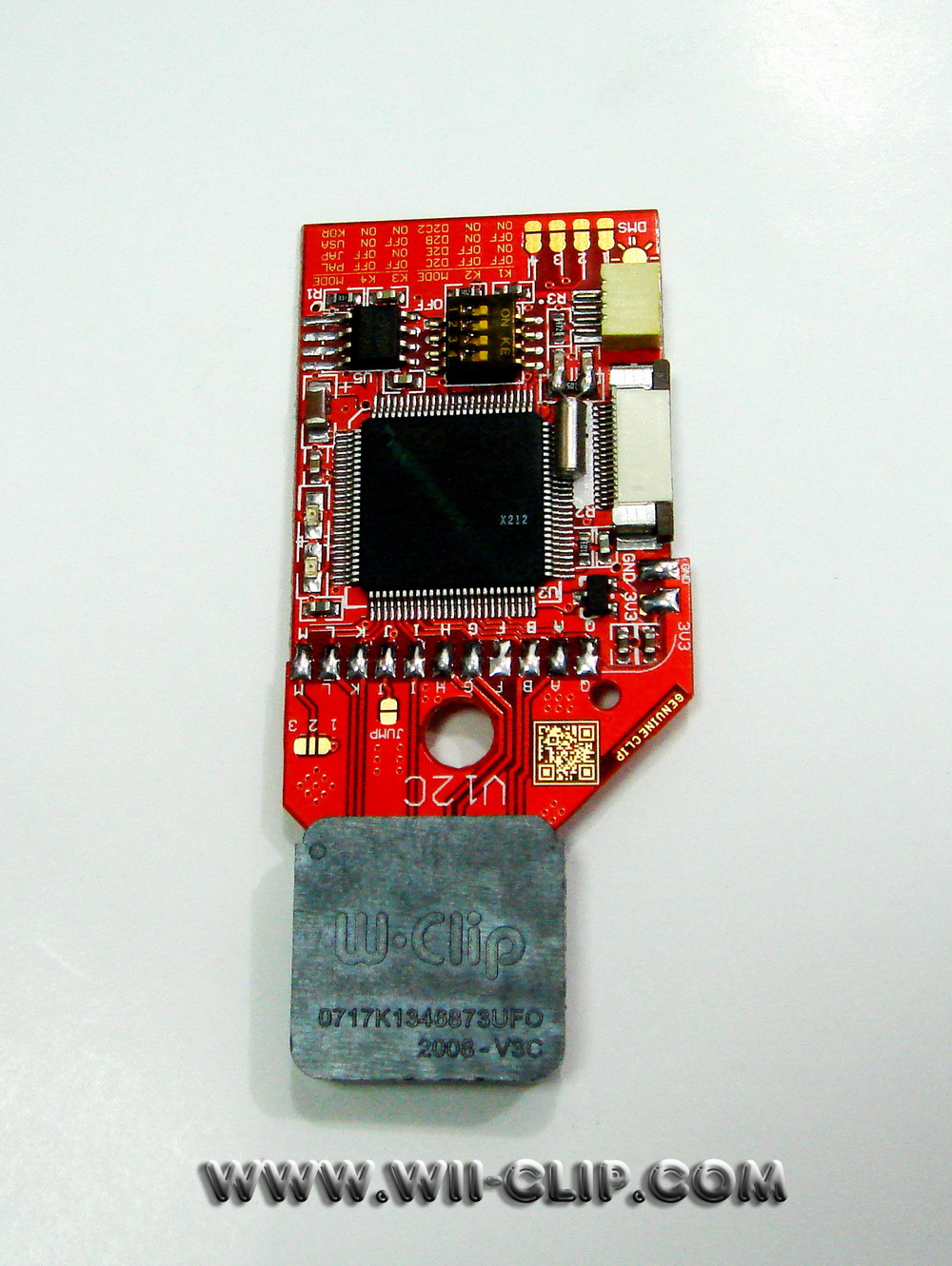

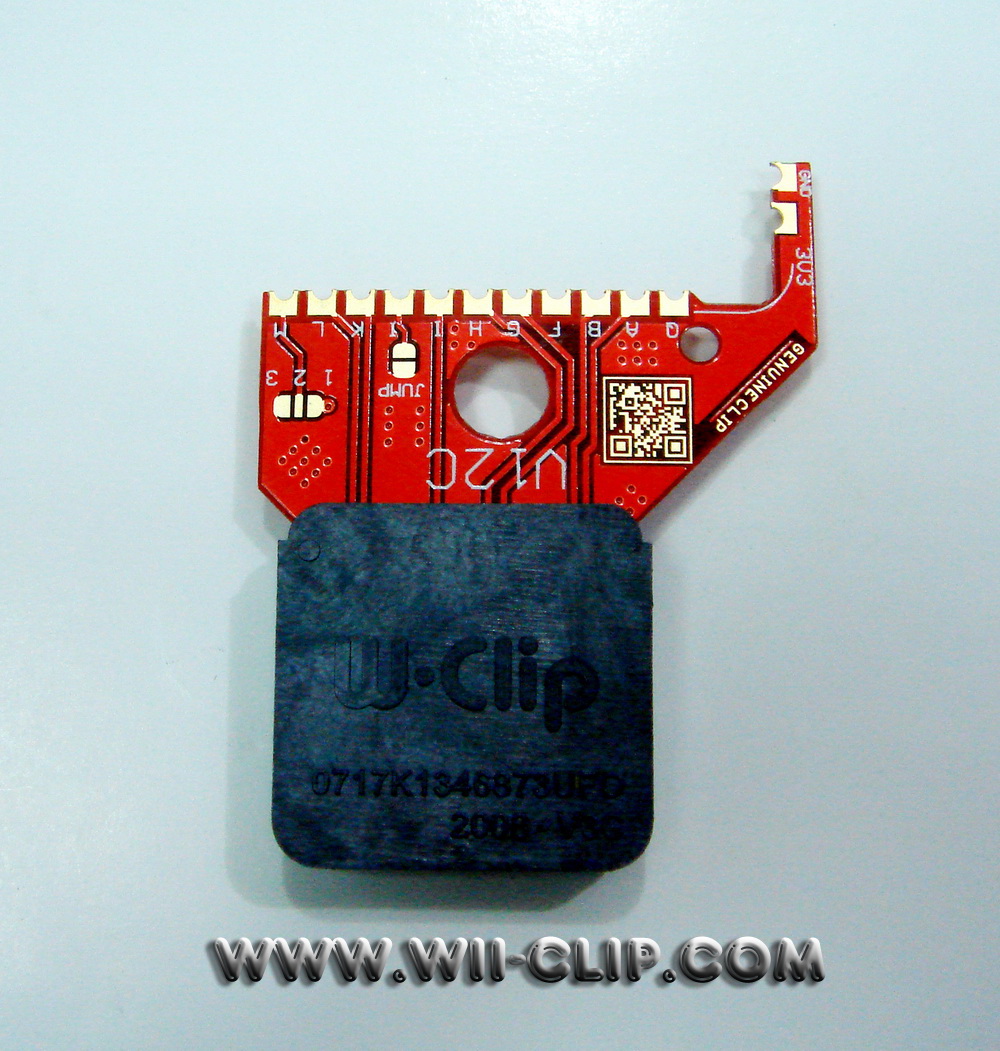

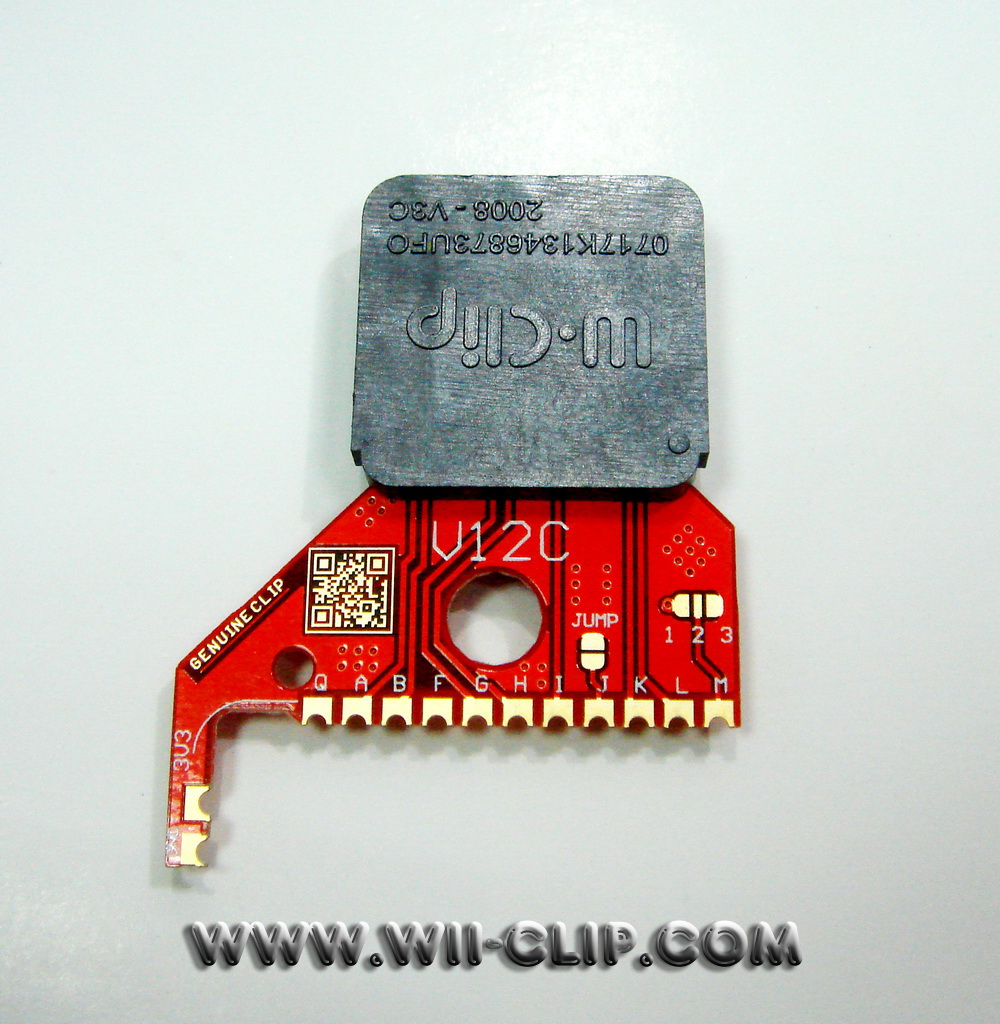

The last WII-CLIP V12C for D2SUN V1.3A / V1.5x / V3.x chips looking:

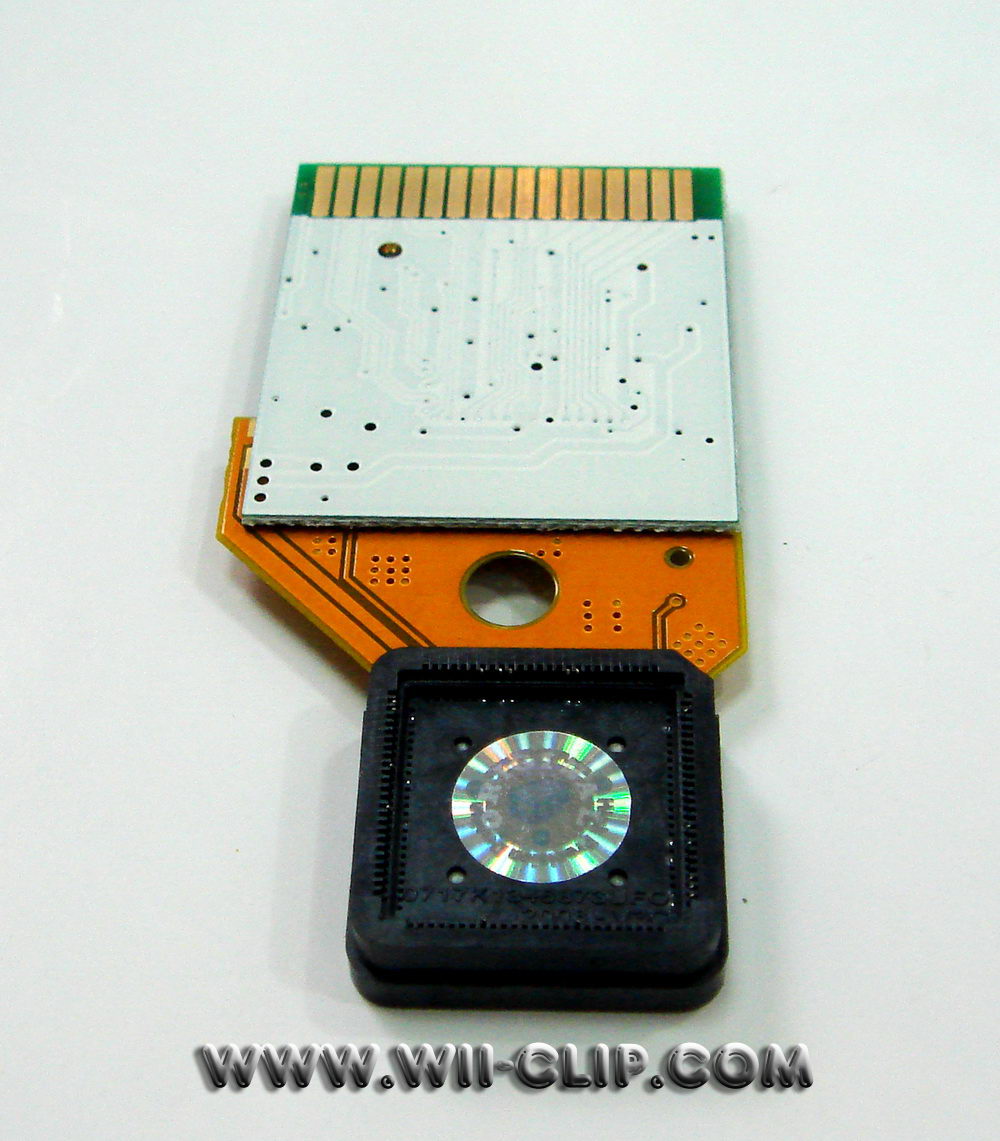

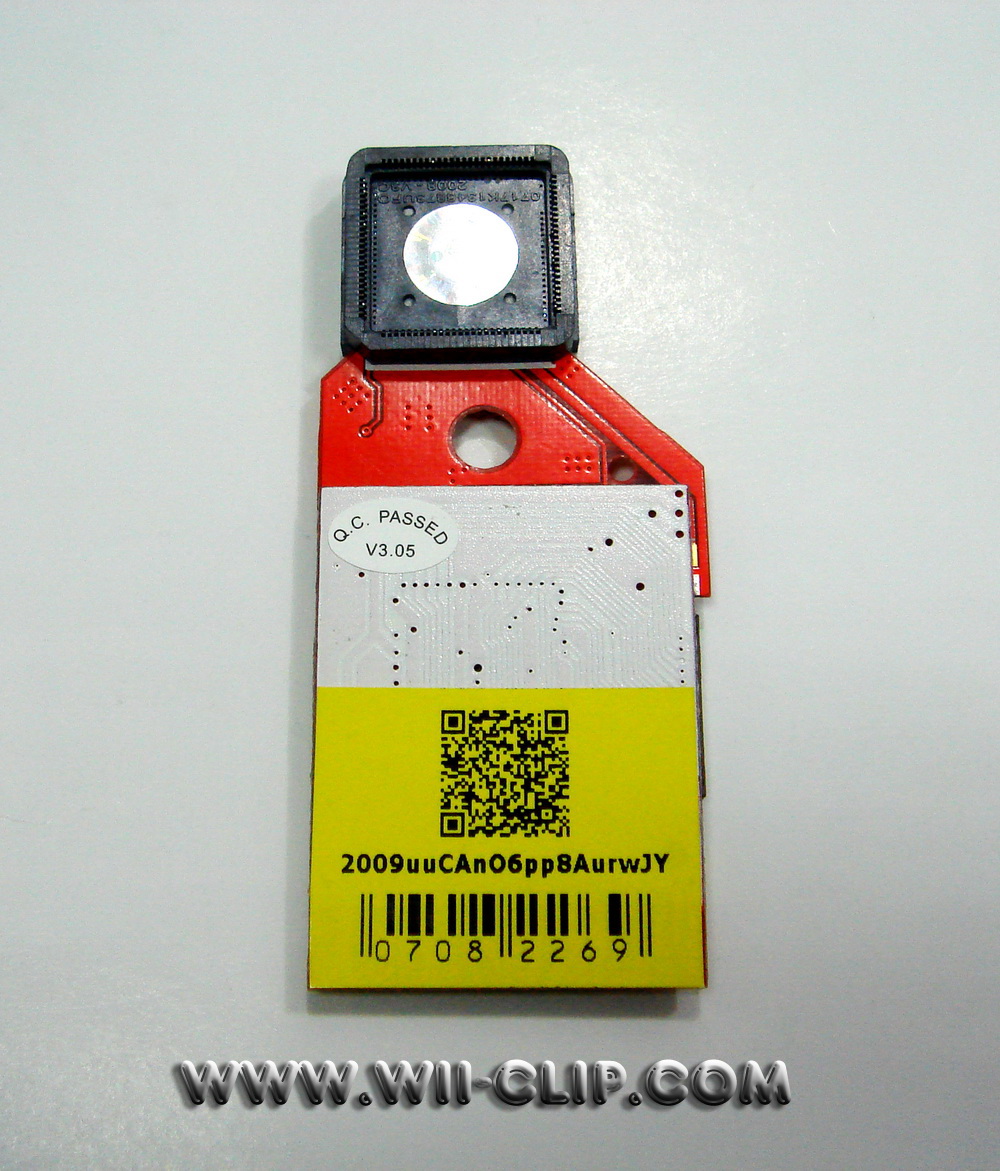

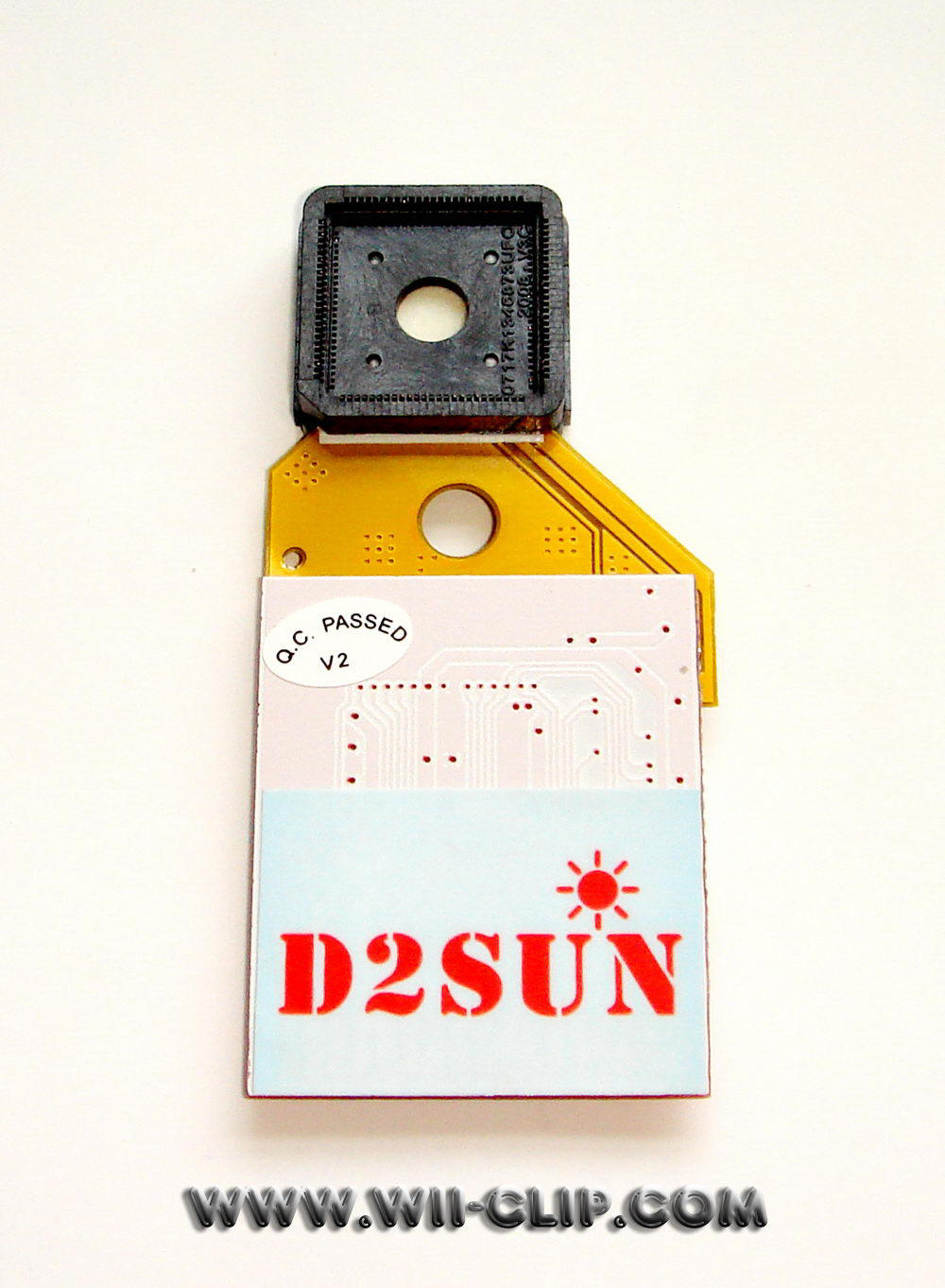

After D2SUN soldered:

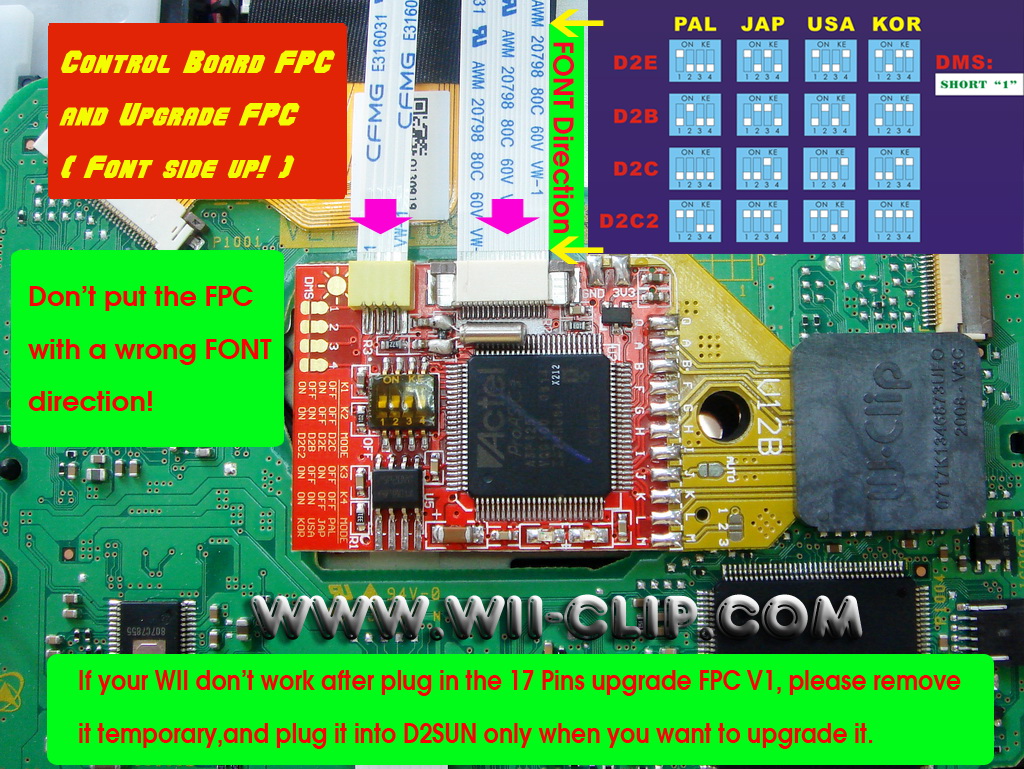

The new WII-CLIP V12C for D2SUN install diagram: Zero wire need solder, plug and play!

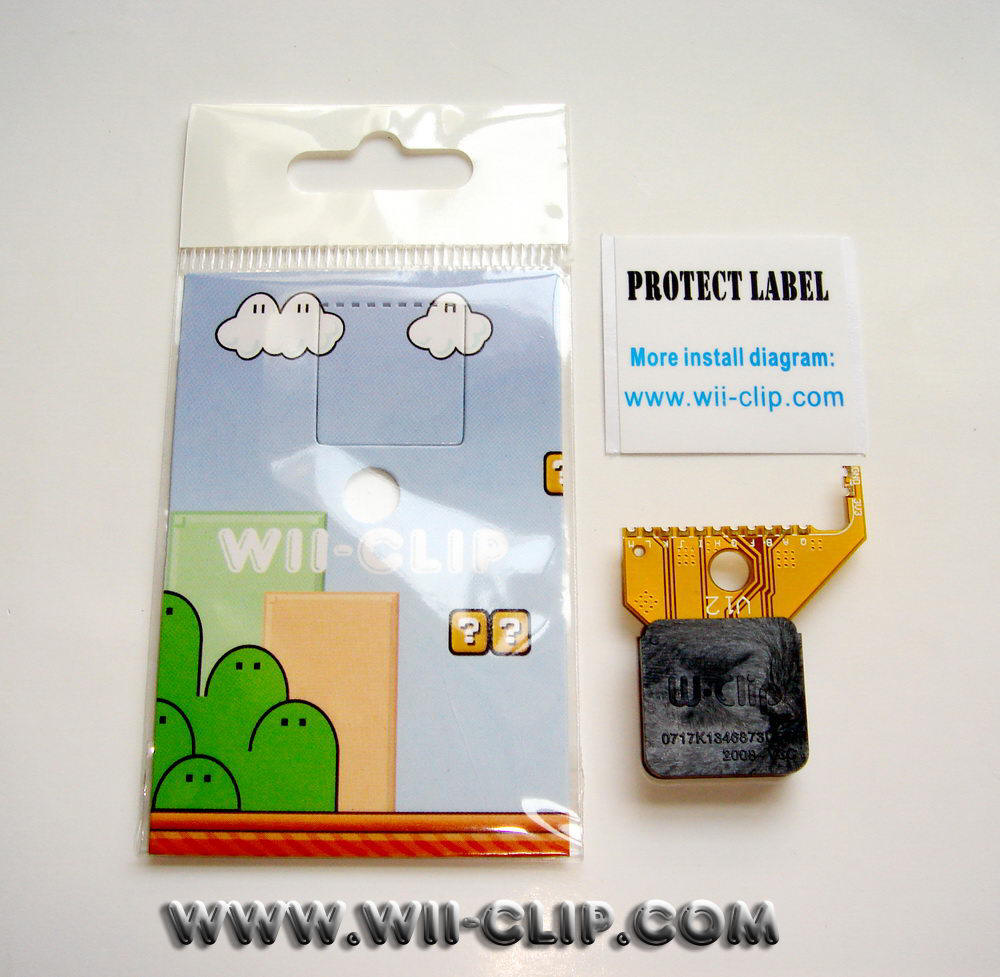

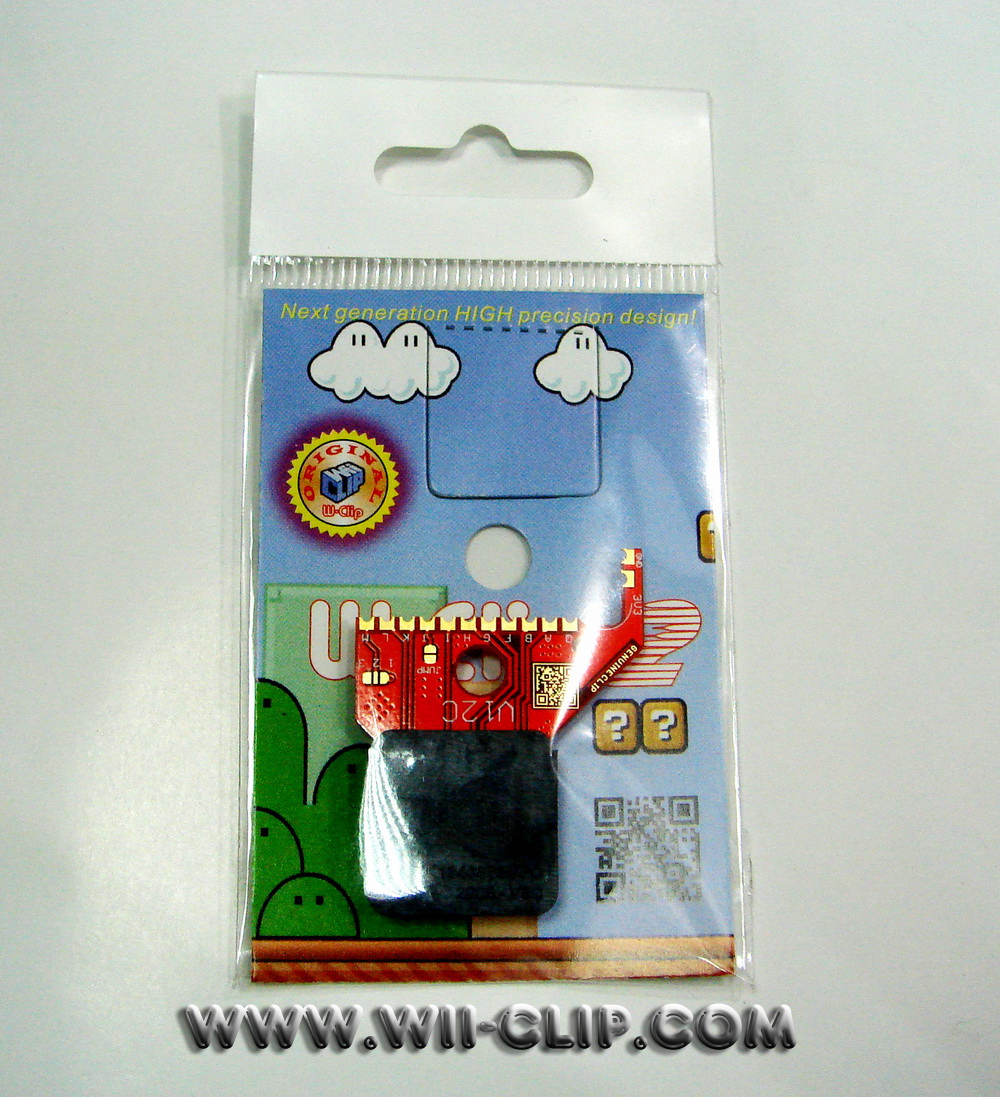

The retail packing:





===========================================================================================================

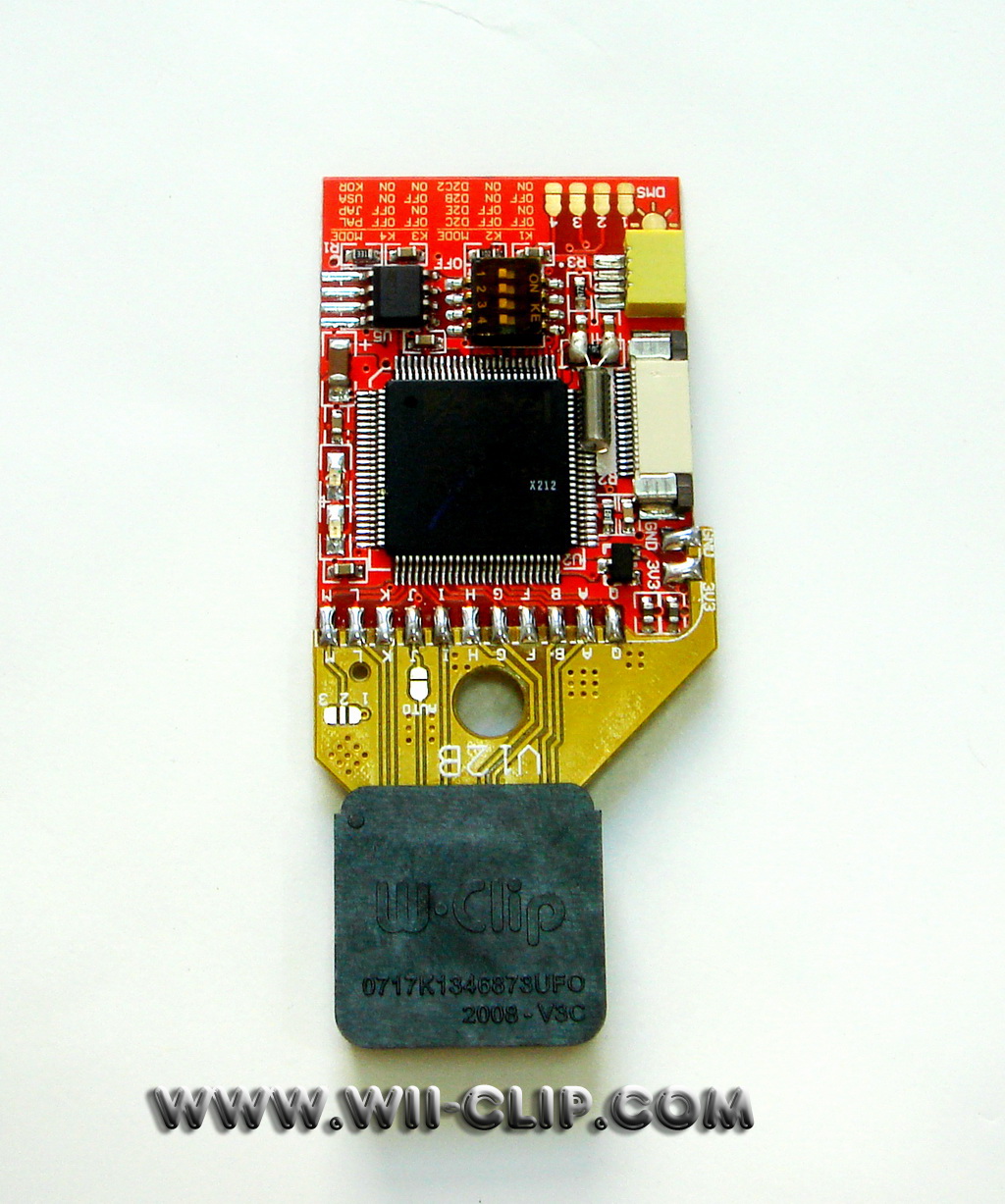

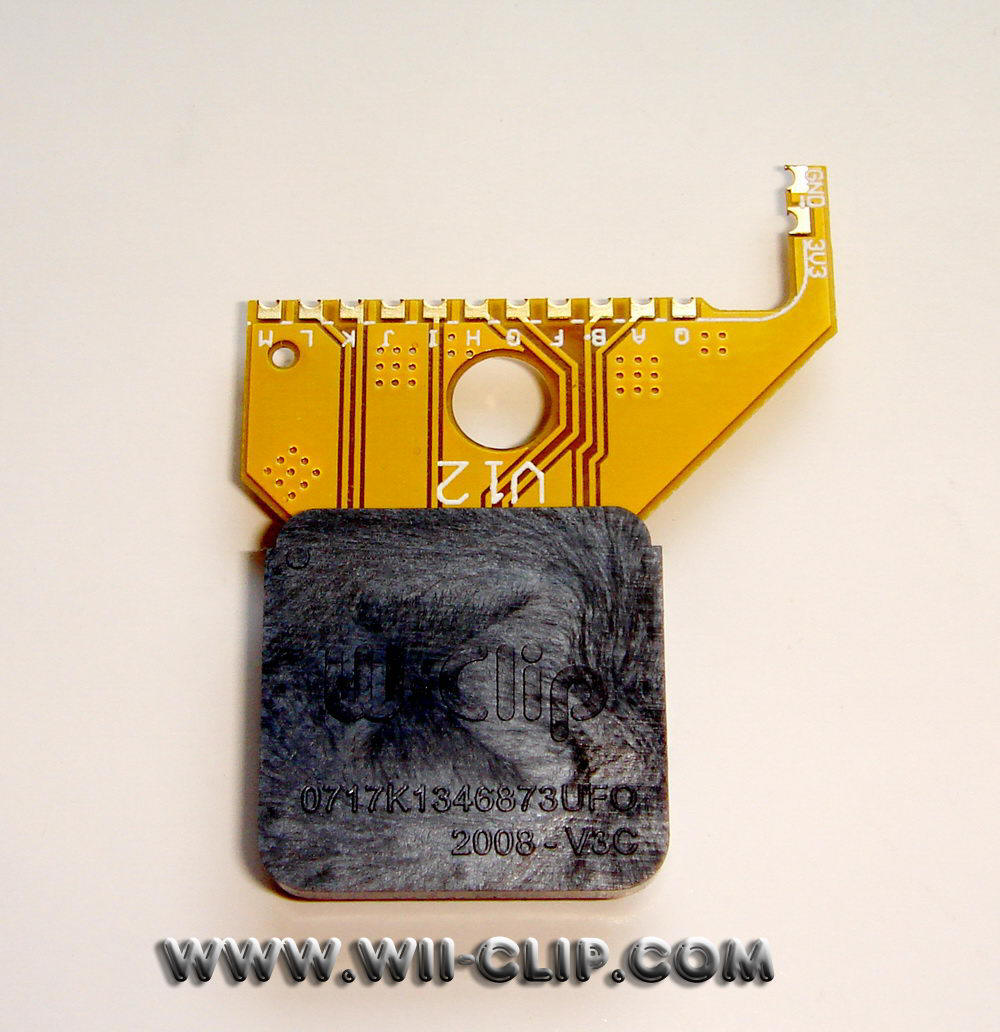

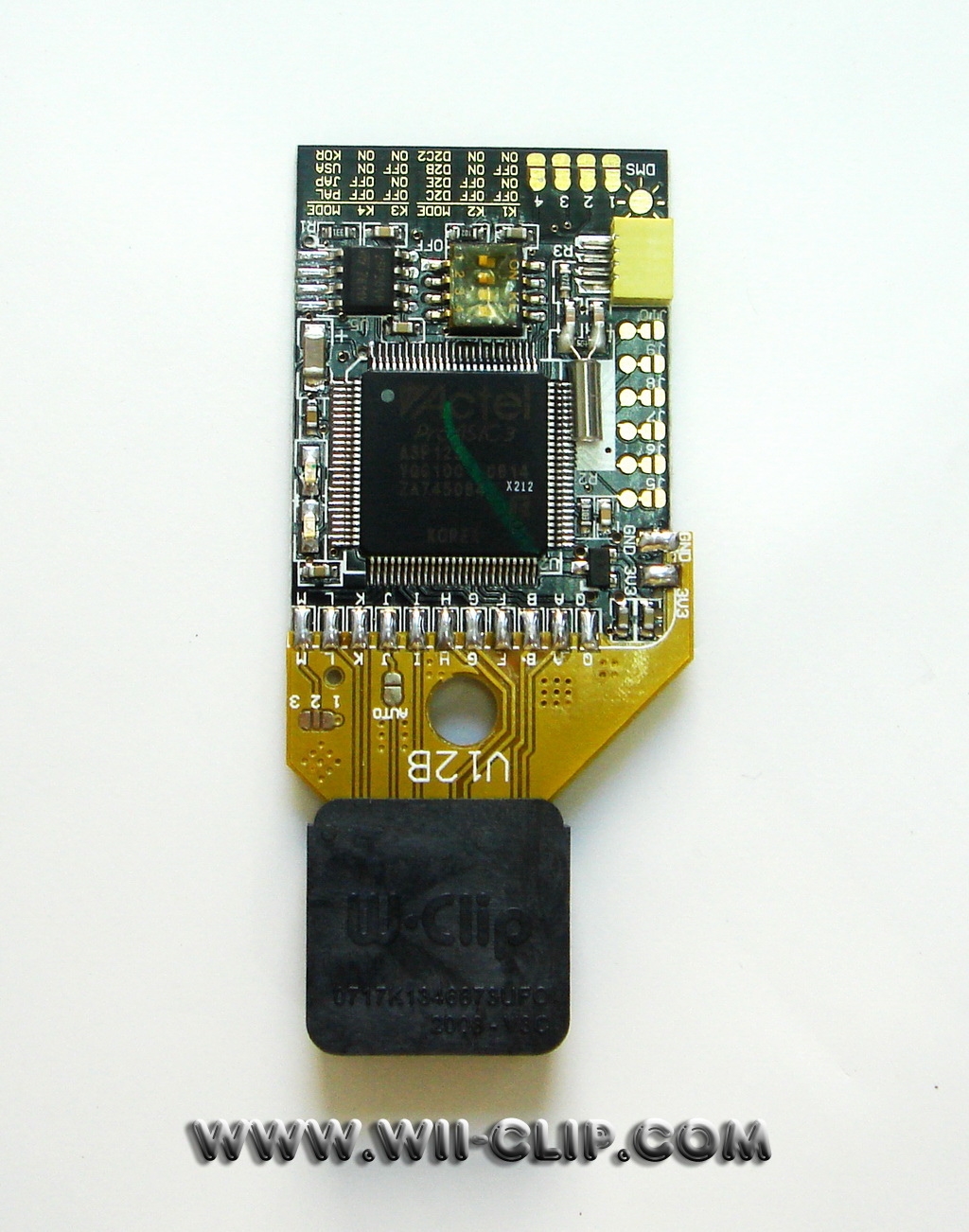

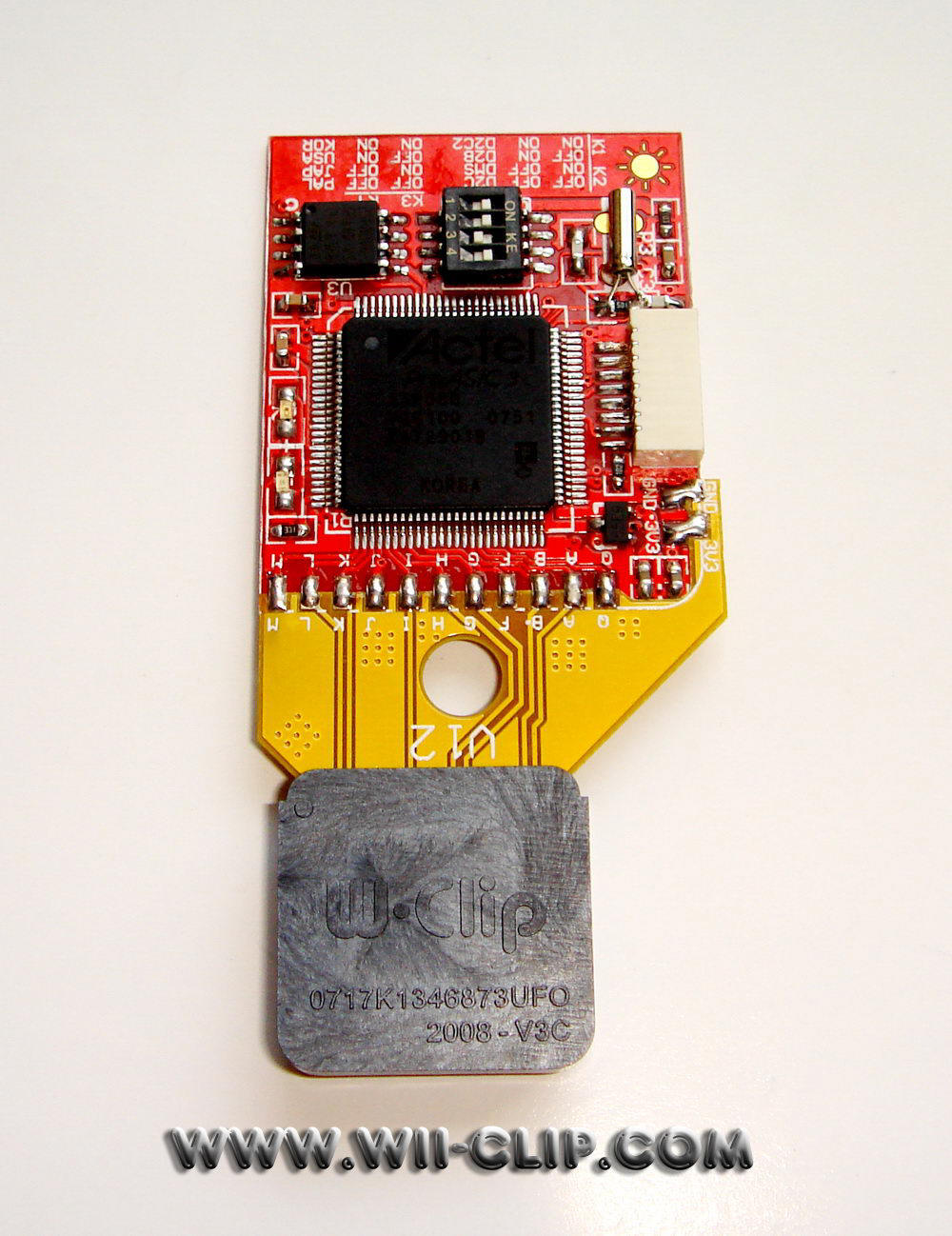

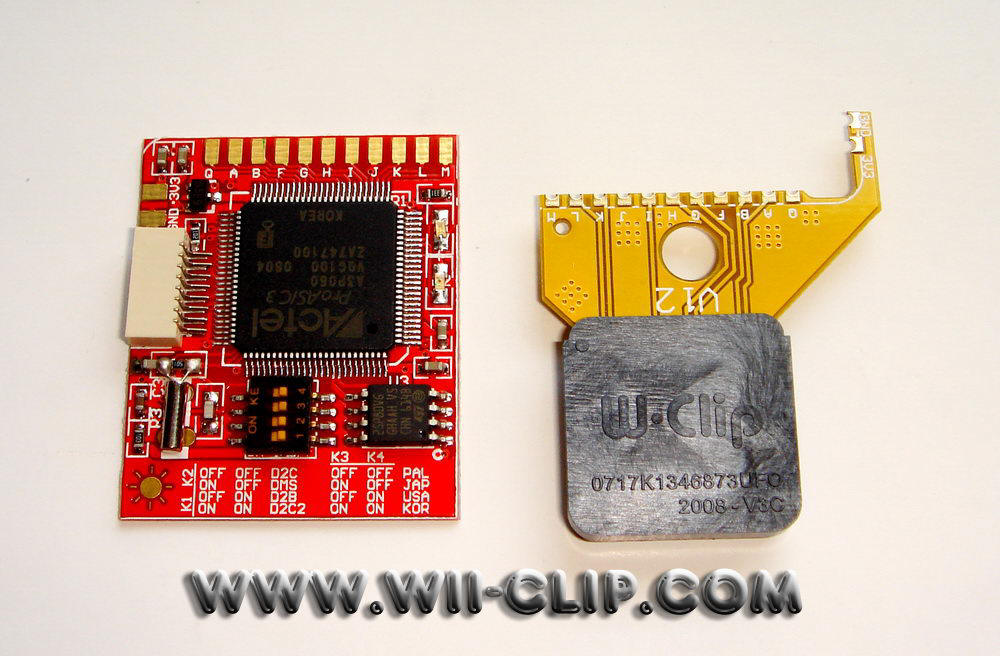

The WII-CLIP V12 for D2SUN v1.5 looking:

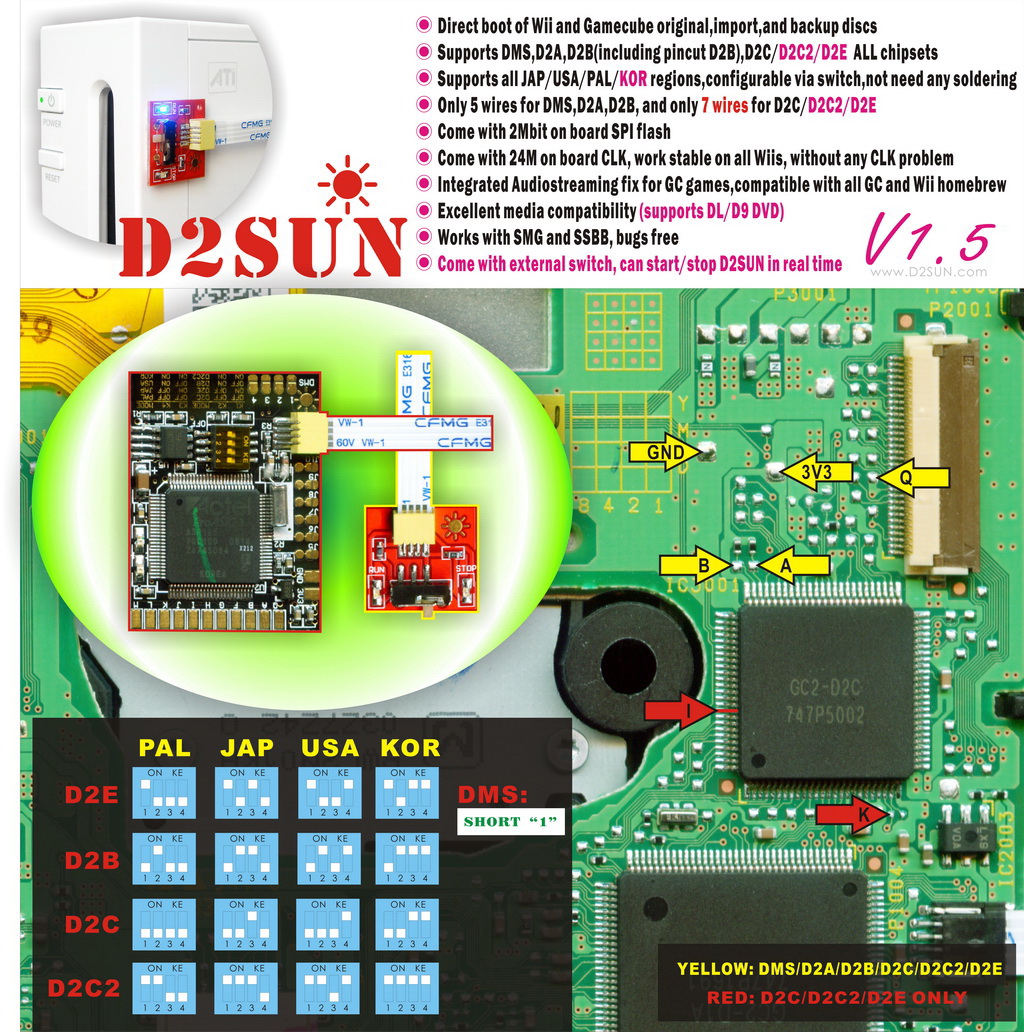

the old V1.5  install diagram:

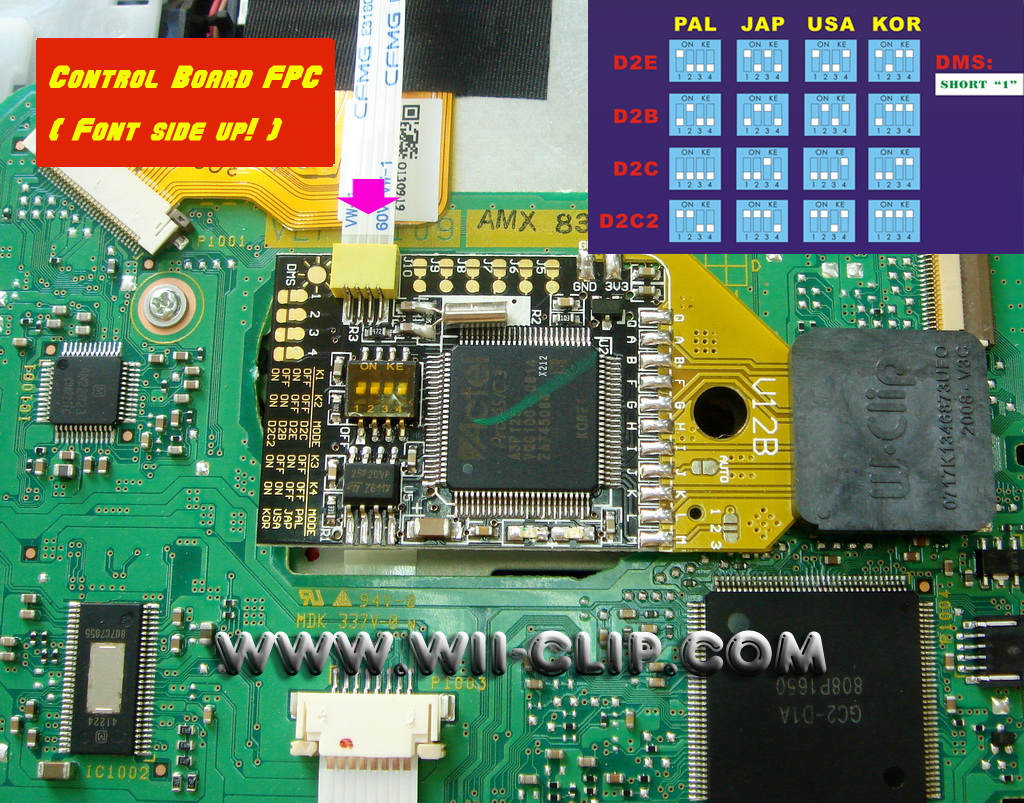

The new WII-CLIP install diagram: Zero wire need solder, plug and play! And don't need touch iron at all, 100% switch configure on all DMS/D2A/D2B/D2C/D2C2/D2E Wiis console !

Tips: If you want to use V1.5 on your the oldest DMS/D2A chipset, you can use one standard 12B pencil to draw the jumper "1" and make it bridge, after it work you can use some adhesive tape to cover this jumper "1" for protect if you want.

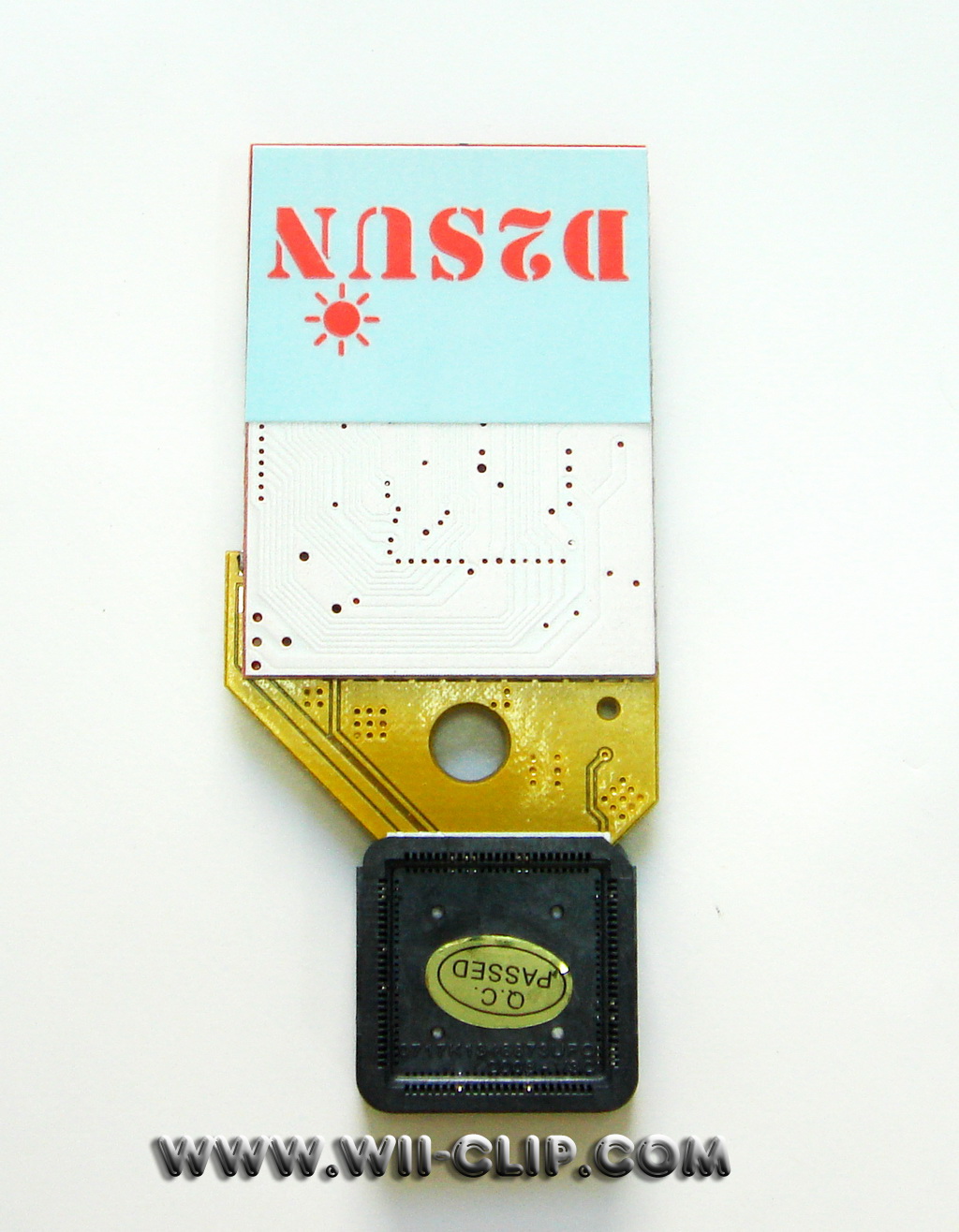

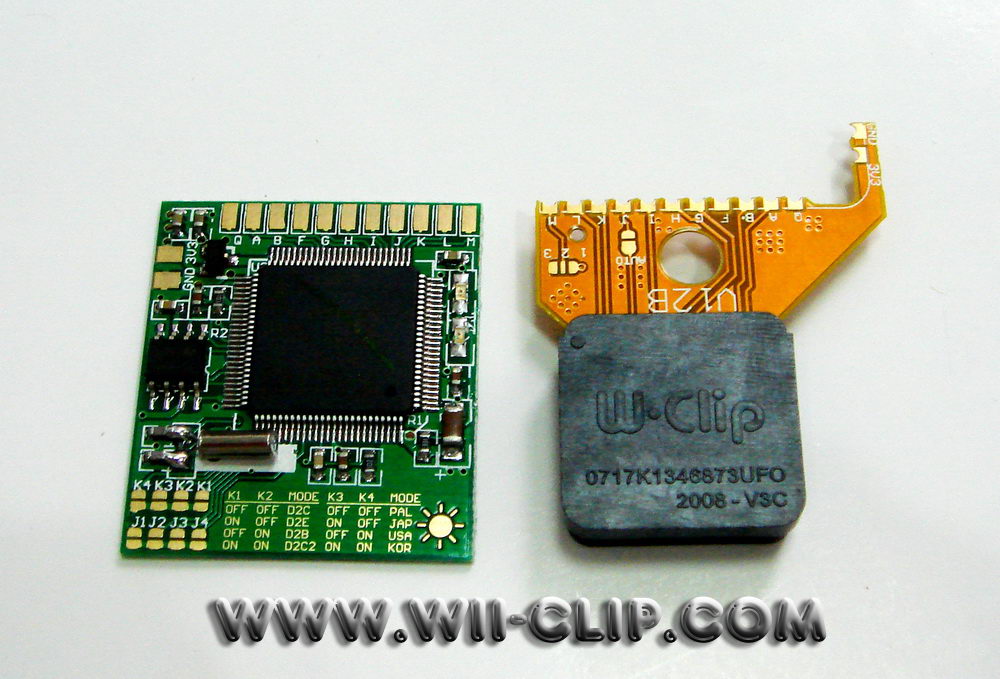

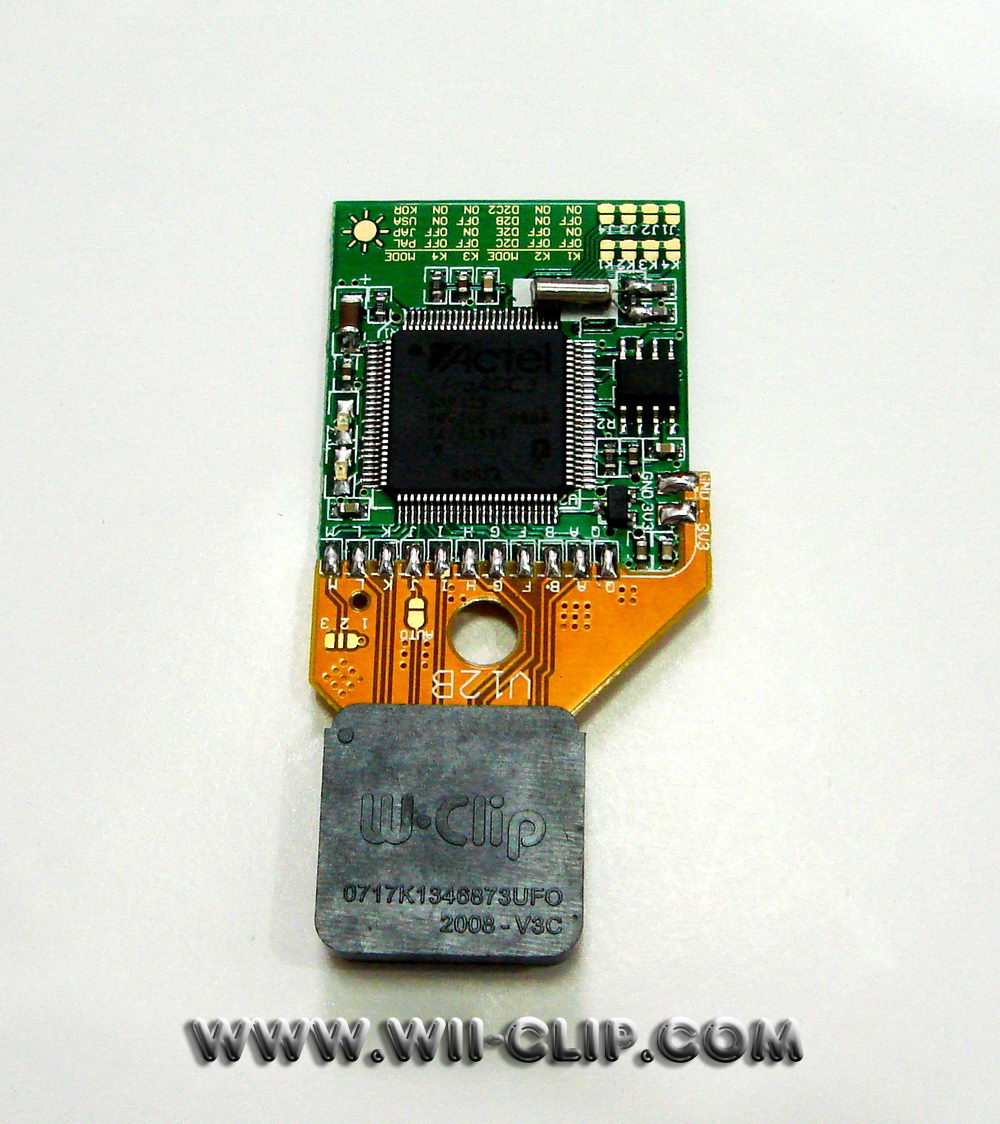

The WII-CLIP V12 for D2SUN v1.3A looking:

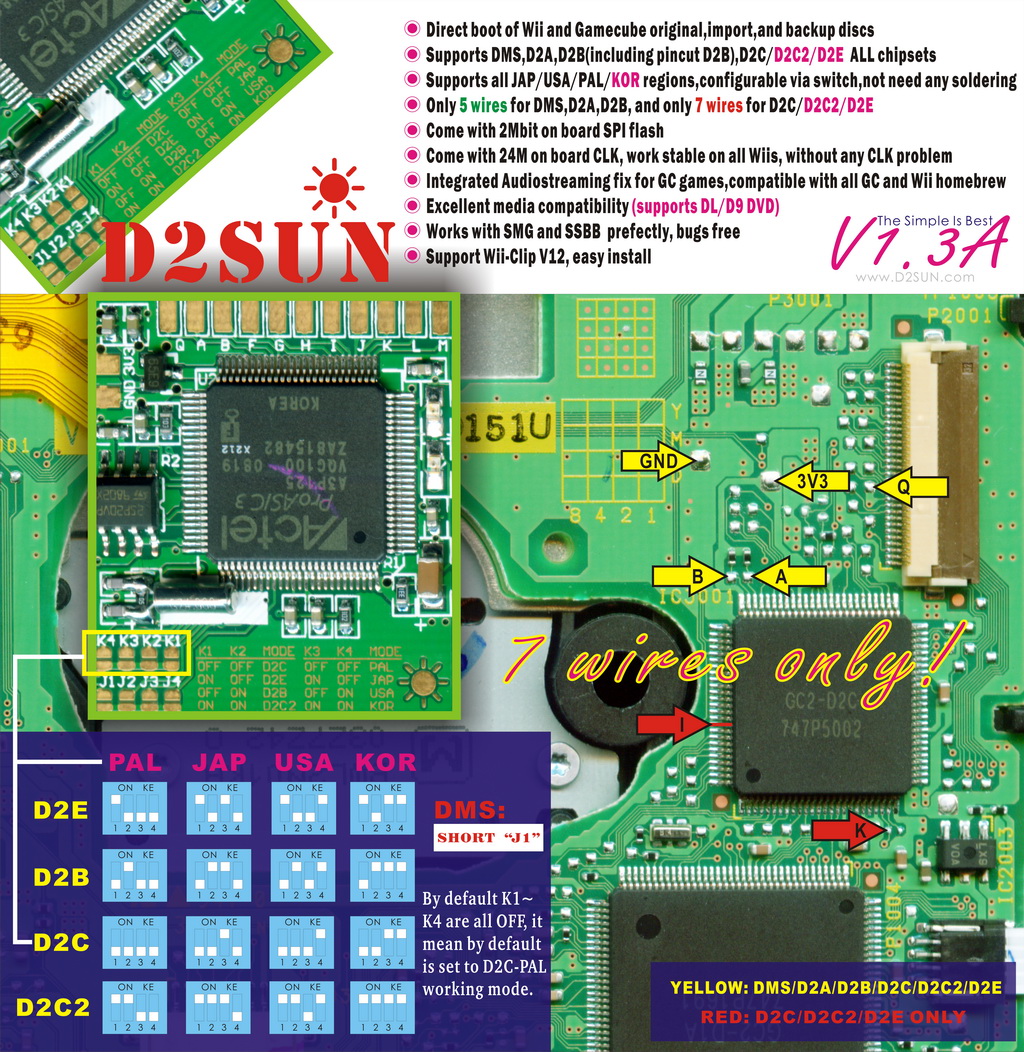

the old V1.3A  install diagram:



The new WII-CLIP install diagram: Zero wire need solder, plug and play! But it need use iron to adjust the working mode.

Tips: If you don't have iron , you can use one standard 12B pencil to draw these jumper  and make them  bridge, after it work you can use some adhesive tape to cover them for protect if you want.

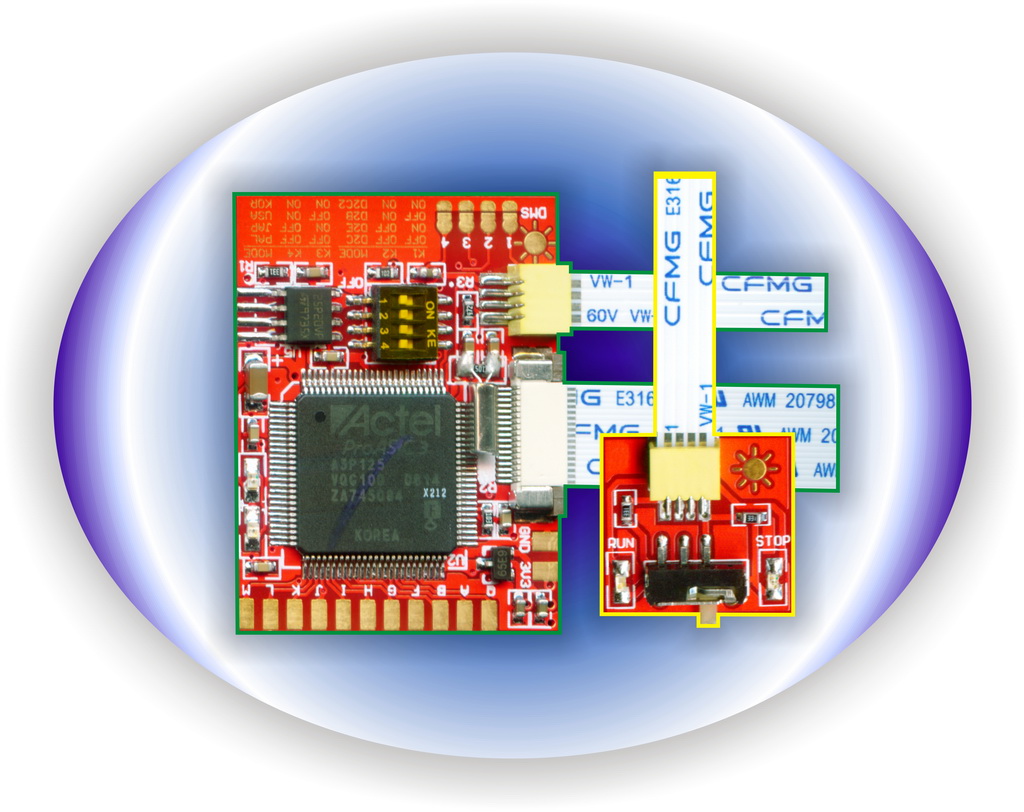

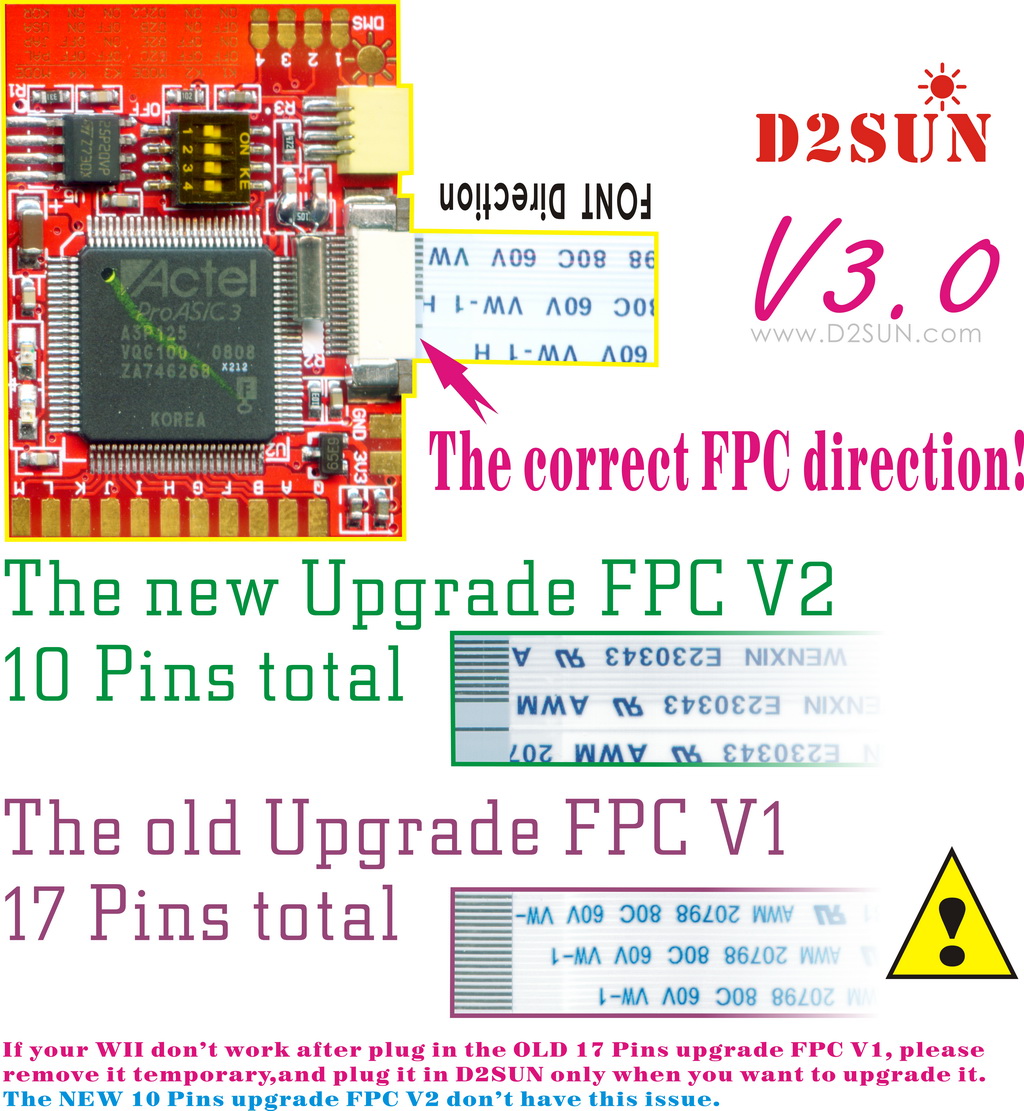

The WII-CLIP V12 for D2SUN v3.0 looking:





How to adjust the D2SUN V3.0 to work with your WII:

  PAL JAP USA KOR
DMS & D2A
SHORT
jumper "1"
K3 K4
OFF OFF
SHORT
jumper "1"
K3 K4
ON OFF
SHORT
jumper "1"
K3 K4
OFF ON
SHORT
jumper "1"
K3 K4
ON ON
D2E
K1 K2 K3 K4
ON OFF OFF OFF
K1 K2 K3 K4
ON OFF ON OFF
K1 K2 K3 K4
ON OFF OFF ON
K1 K2 K3 K4
ON OFF ON ON
D2B
(Included cut-pins version)
K1 K2 K3 K4
OFF ON OFF OFF
K1 K2 K3 K4
OF ON ON OFF
K1 K2 K3 K4
OFF ON OFF ON
K1 K2 K3 K4
OFF ON ON ON
D2C
K1 K2 K3 K4
OFF OFF OFF OFF
K1 K2 K3 K4
OFF OFF ON OFF
K1 K2 K3 K4
OFF OFF OFF ON
K1 K2 K3 K4
OFF OFF ON ON
D2C2
K1 K2 K3 K4
ON ON OFF OFF
K1 K2 K3 K4
ON ON ON OFF
K1 K2 K3 K4
ON ON OFF ON
K1 K2 K3 K4
ON ON ON ON

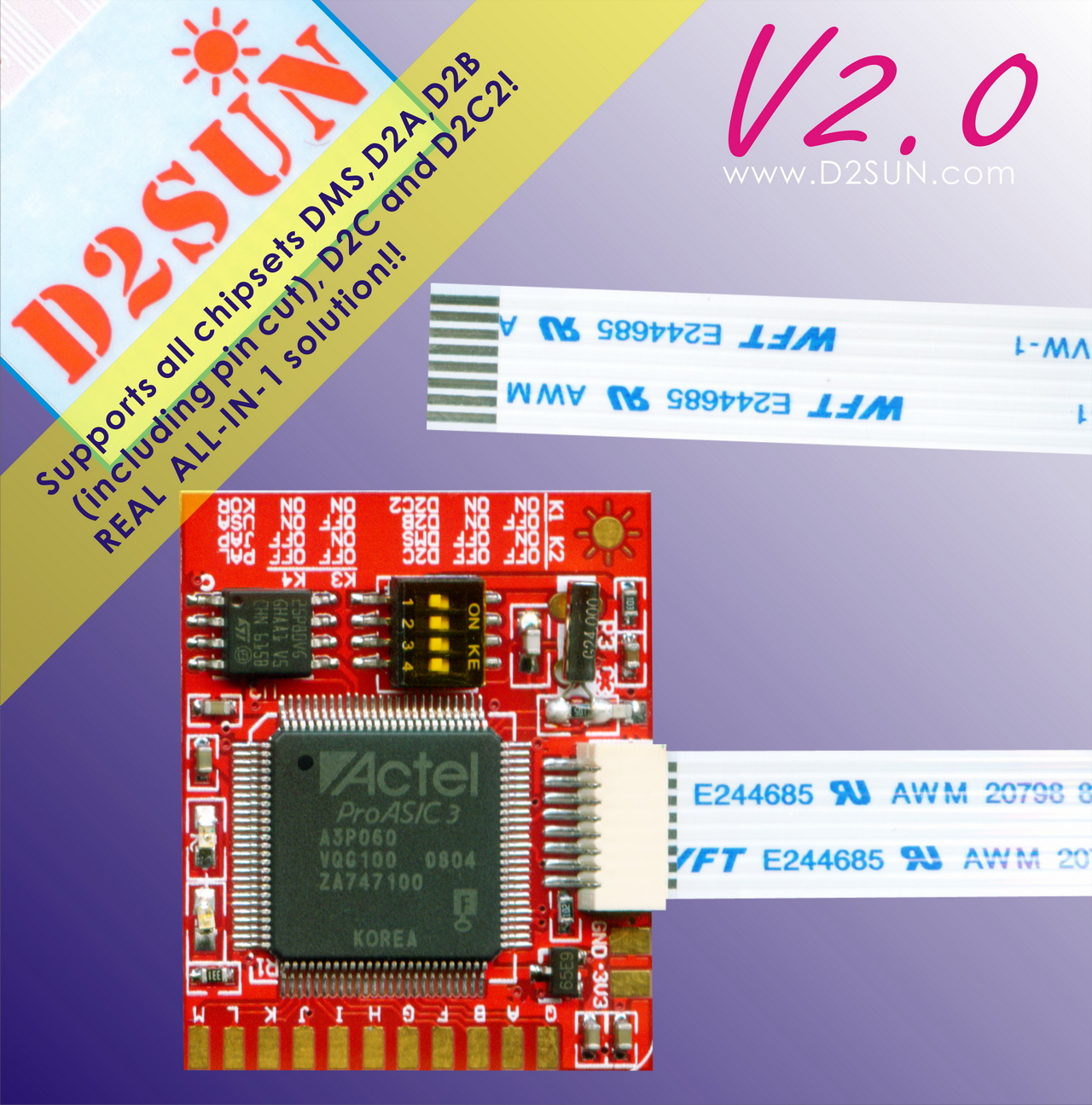

The WII-CLIP V12 for D2SUN v2.0 looking:





After soldered:

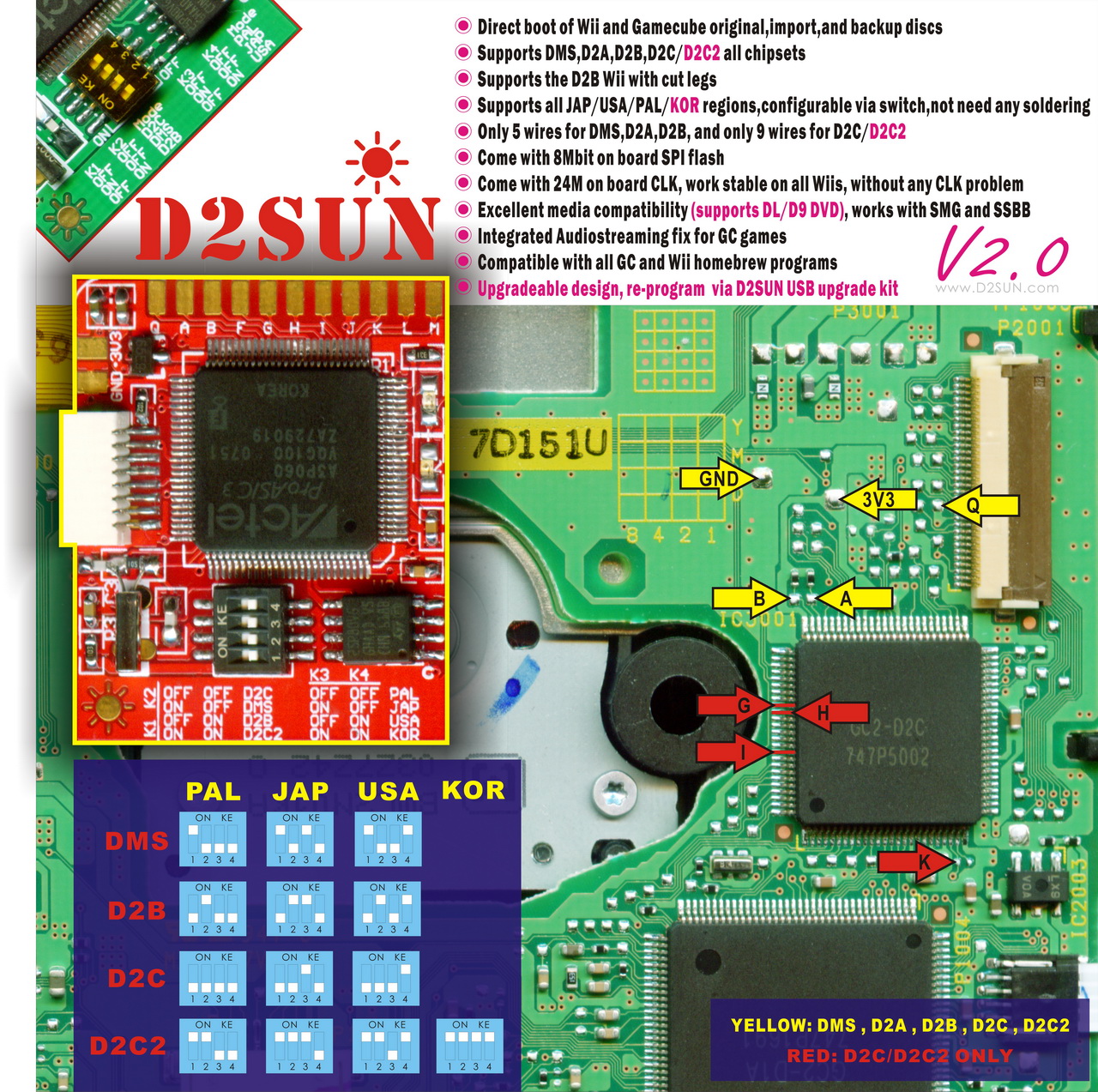

The old D2SUN V1.1 / V1.2 install diagram: 9 wires

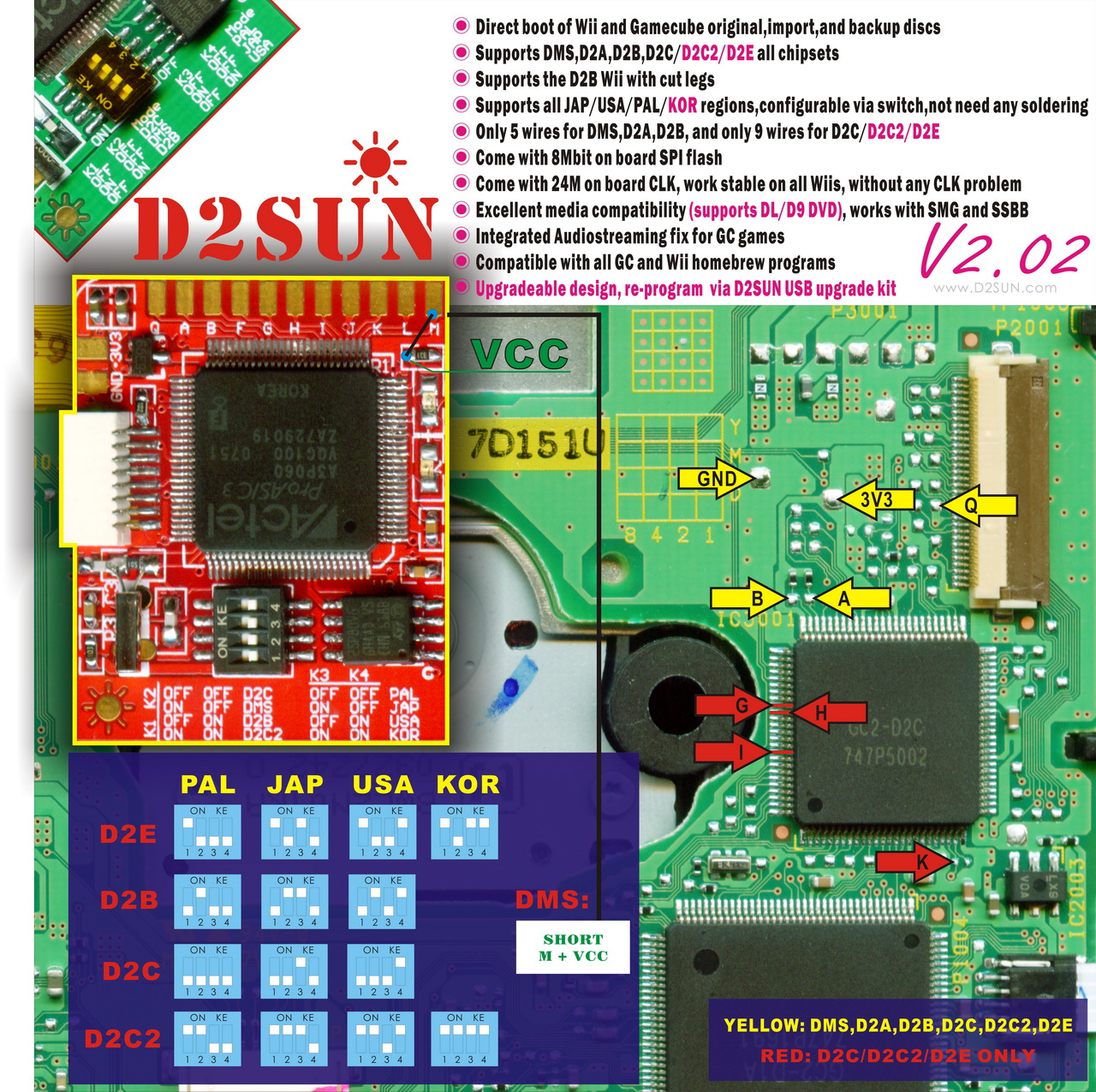

the old V2.02 (D2E) install diagram:





How to adjust the D2SUN V2.02 to work with your WII:

  PAL JAP USA KOR
DMS & D2A
SHORT
M+VCC
K3 K4
OFF OFF
SHORT
M+VCC
K3 K4
ON OFF
SHORT
M+VCC
K3 K4
OFF ON

D2E
K1 K2 K3 K4
ON OFF OFF OFF
K1 K2 K3 K4
ON OFF ON OFF
K1 K2 K3 K4
ON OFF OFF ON
K1 K2 K3 K4
ON OFF ON ON
D2B
(Included cut-pins version)
K1 K2 K3 K4
OFF ON OFF OFF
K1 K2 K3 K4
OF ON ON OFF
K1 K2 K3 K4
OFF ON OFF ON

D2C
K1 K2 K3 K4
OFF OFF OFF OFF
K1 K2 K3 K4
OFF OFF ON OFF
K1 K2 K3 K4
OFF OFF OFF ON

D2C2
K1 K2 K3 K4
ON ON OFF OFF
K1 K2 K3 K4
ON ON ON OFF
K1 K2 K3 K4
ON ON OFF ON
K1 K2 K3 K4
ON ON ON ON



the old V2.01 (D2C2) install diagram:





The new WII-CLIP install diagram: Zero wire need solder, plug and play! And don't need touch iron at all, 100% switch configure on all DMS/D2A/D2B/D2C/D2C2/D2E Wiis console !







How to adjust the D2SUN V2.01 to work with your WII:

  PAL JAP USA KOR
DMS & D2A
K1 K2 K3 K4
ON OFF OFF OFF
K1 K2 K3 K4
ON OFF ON OFF
K1 K2 K3 K4
ON OFF OFF ON

D2B
(Included cut-pins version)
K1 K2 K3 K4
OFF ON OFF OFF
K1 K2 K3 K4
OF ON ON OFF
K1 K2 K3 K4
OFF ON OFF ON

D2C
K1 K2 K3 K4
OFF OFF OFF OFF
K1 K2 K3 K4
OFF OFF ON OFF
K1 K2 K3 K4
OFF OFF OFF ON

D2C2
K1 K2 K3 K4
ON ON OFF OFF
K1 K2 K3 K4
ON ON ON OFF
K1 K2 K3 K4
ON ON OFF ON
K1 K2 K3 K4
ON ON ON ON

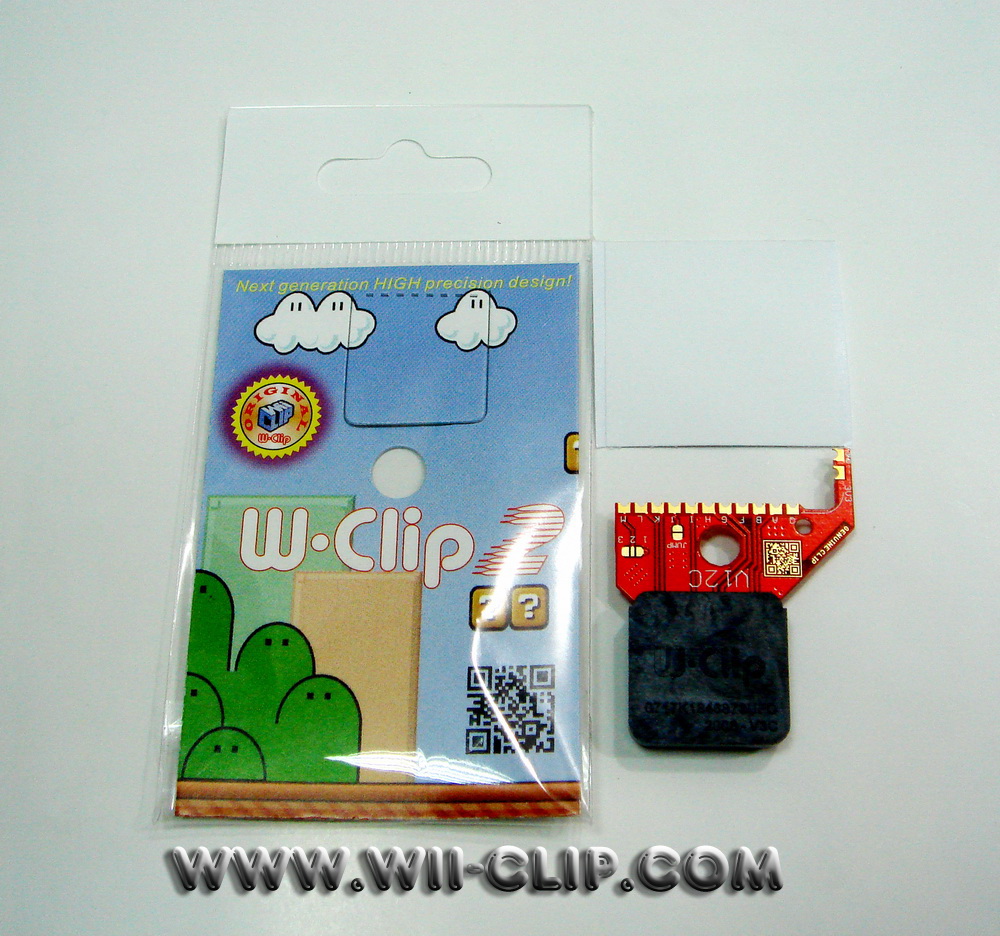

The retail packing:
