WII-CLIP V2 --->  Support ARGON chip

Discuss : http://wiinewz.com/forums/infectus-argon-wiiktus/67865-wii-clip-v2-support-argon-chip.html

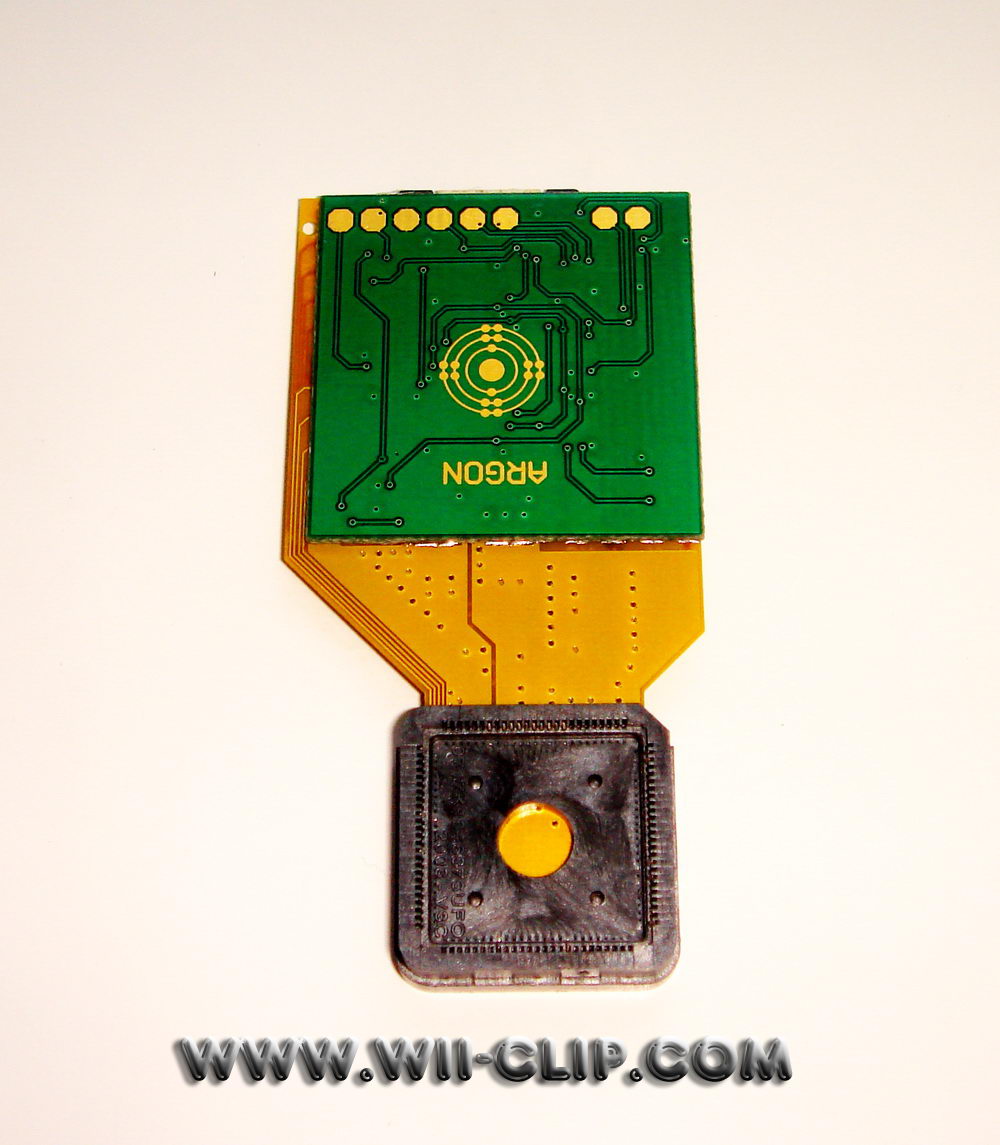

The V2 looking

V2 and Argon


How to install:

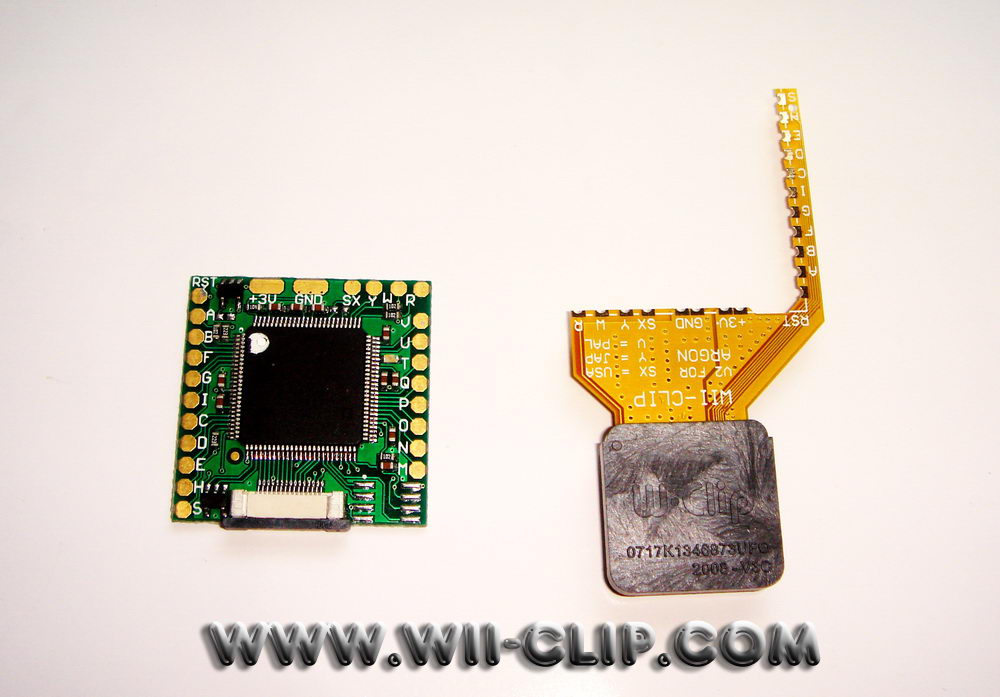

Step 1, line the WII-CLIP onto the corresponding MOD chip board, and solder all pins.

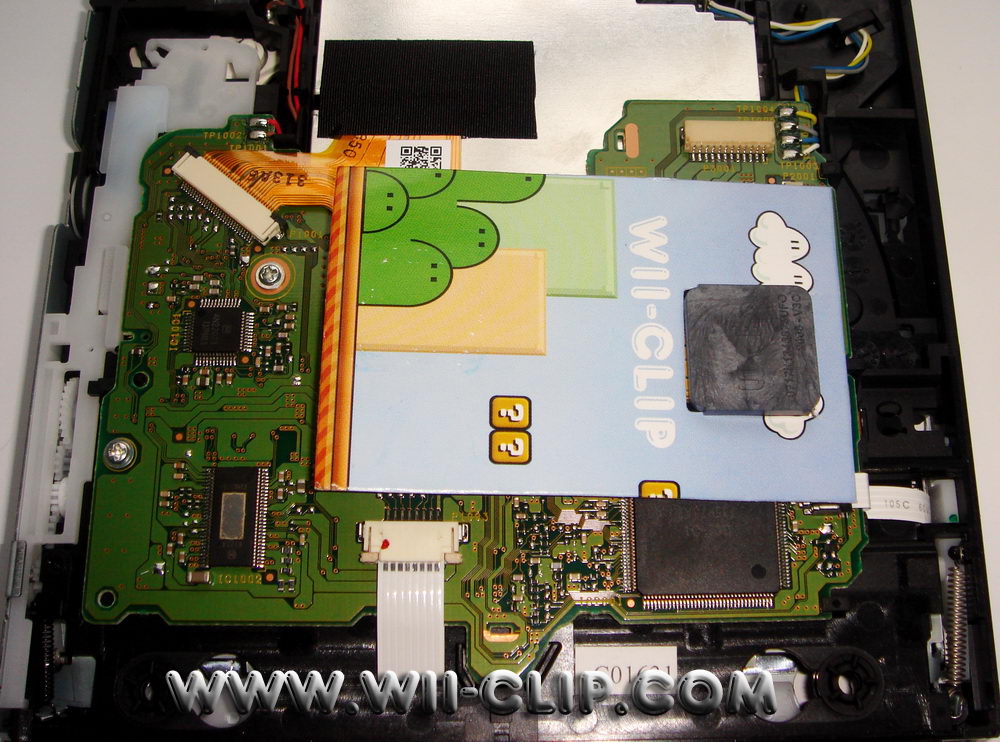

Step 2, Please use the "protect label" to cover these test points, for the open-short protection.


The old ARGON install diagram: 13 wires

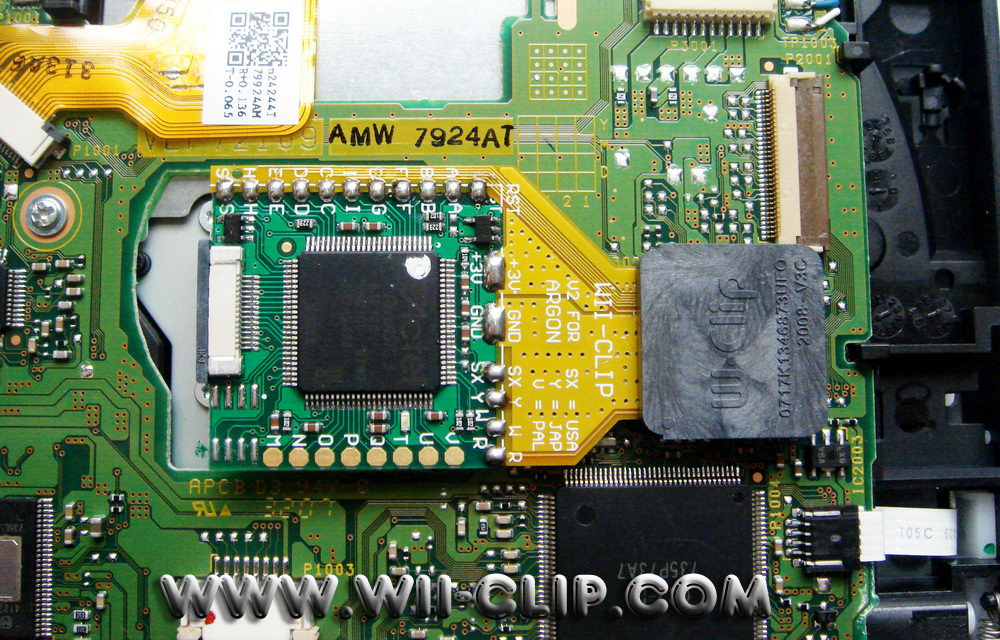

The new WII-CLIP install diagram: Plug and Play, 0 wires
(If need use region free option, then need solder P / Q / O / SX or Y or V 4 wires)


The 4 wires come with the packing.


If you don't need the region free function, pass this step.

The region free mode Need solder these 4 wires:
for USA O , P , Q , SX
for JAP O , P , Q , Y
for PAL O , P , Q , V


Step 3. Plug and Play.

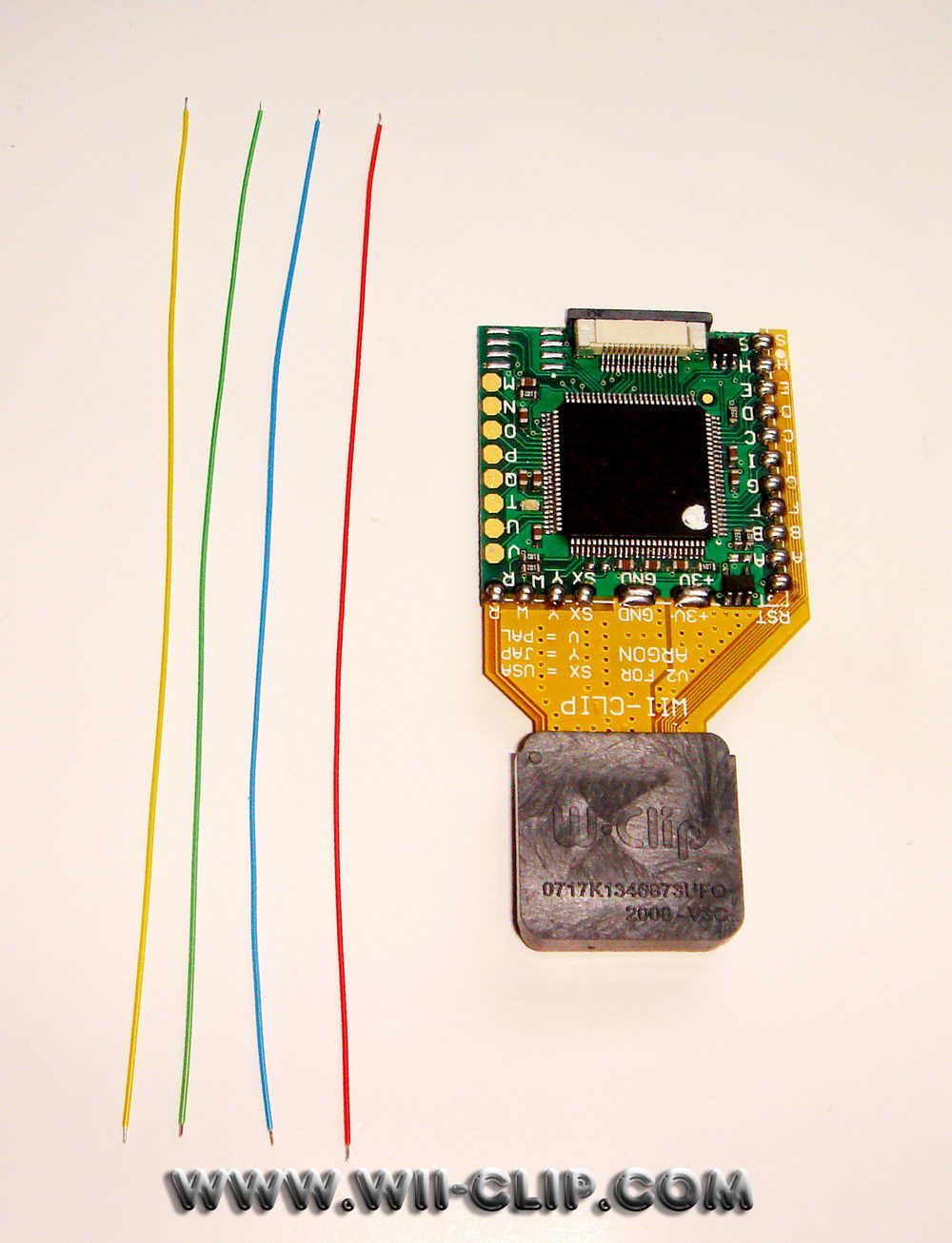

What come with the packing.


The retail packing.
