WII-CLIP V5 ---> Support WASABI chip , and it can support ALL DMS/D2A/D2B/D2C WII, even the legs cut D2B WII too!
Discuss: http://wiinewz.com/forums/wasabi/67862-wii-clip-v5-support-wasabi-chip.html

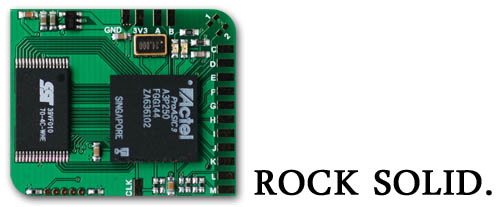

The V5 can support new D2C2 WASABI chip:

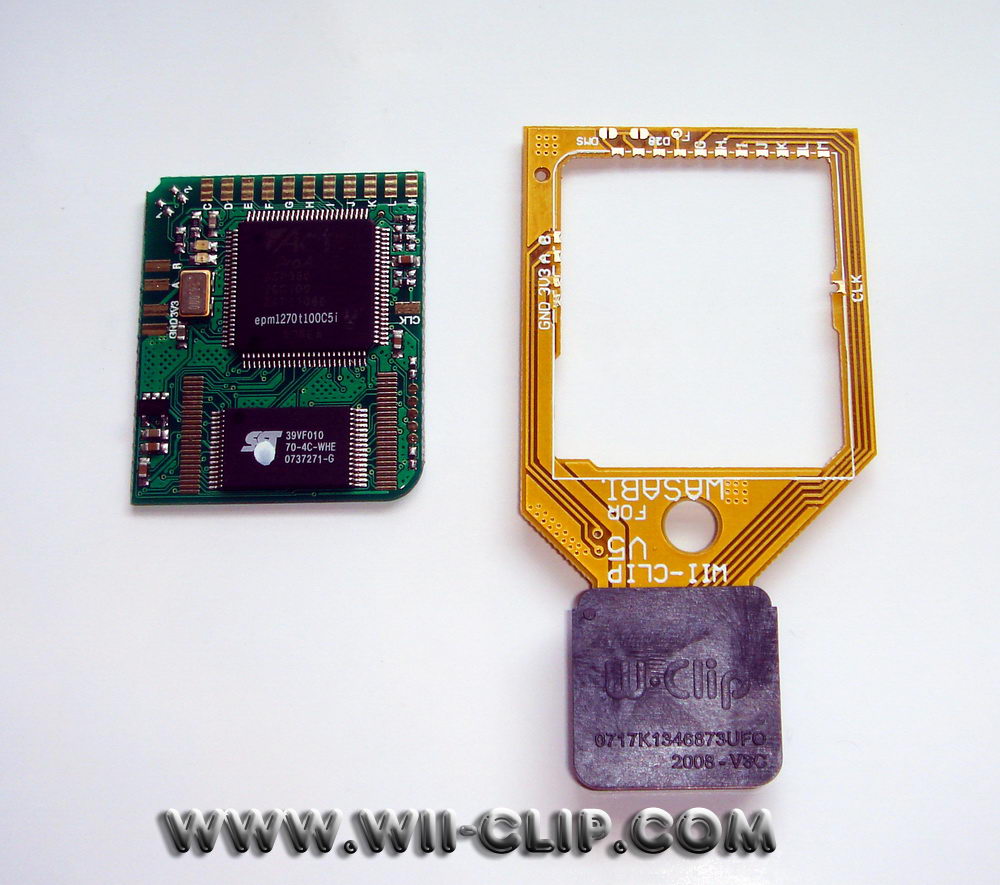

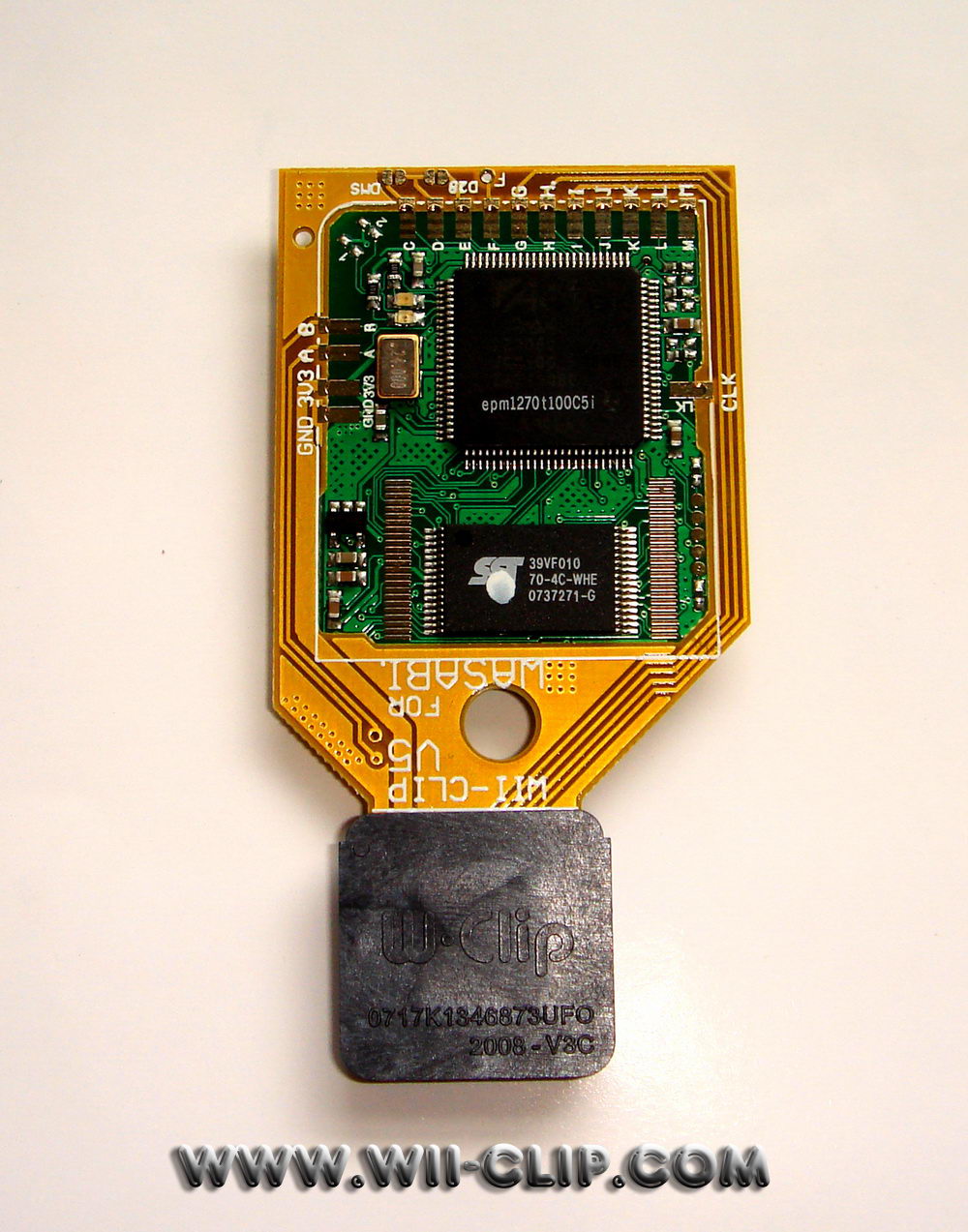

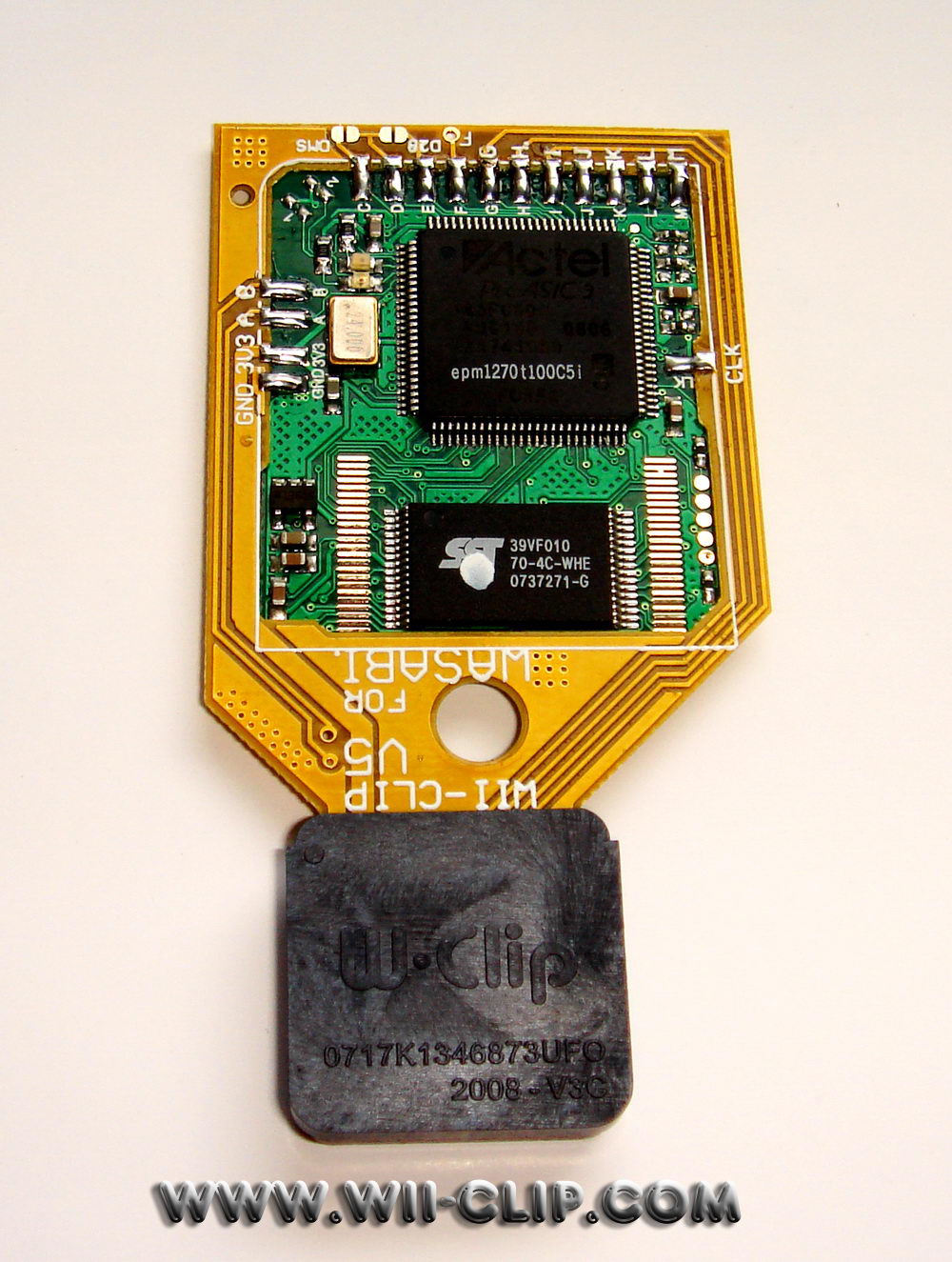

The V5 CLIP for wasabi looking:
How to install:

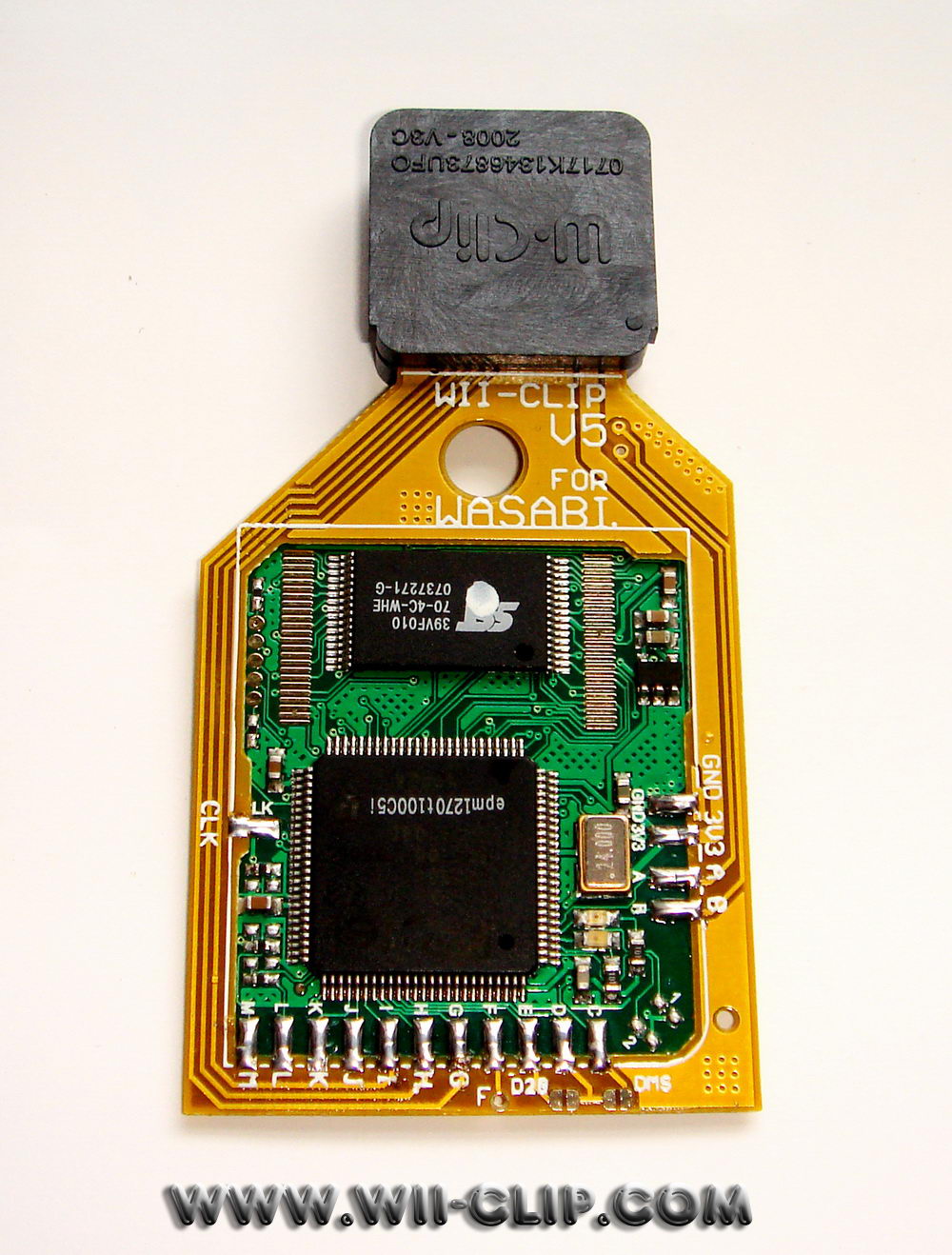

Step 1, line the V5 clip onto the Wasabi chip , and solder all pins.

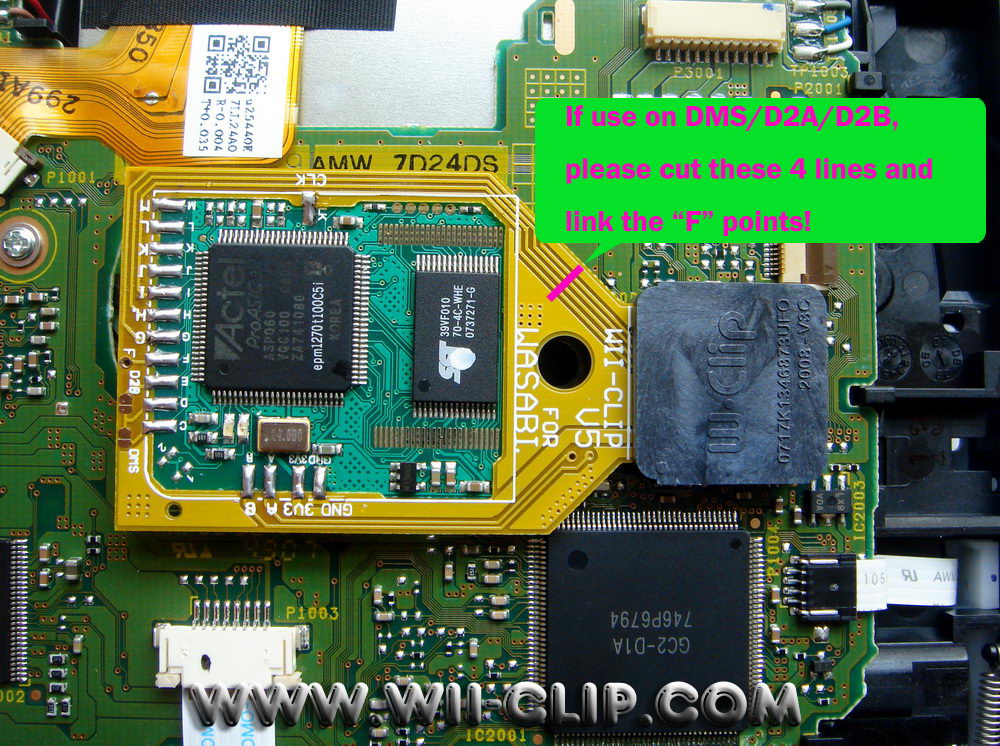

Pay Attention ! For DMS / D2A or D2B please cut these 4 lines and NEED link these 2 "F" points!
Here is the complete install method for NON-D2C:

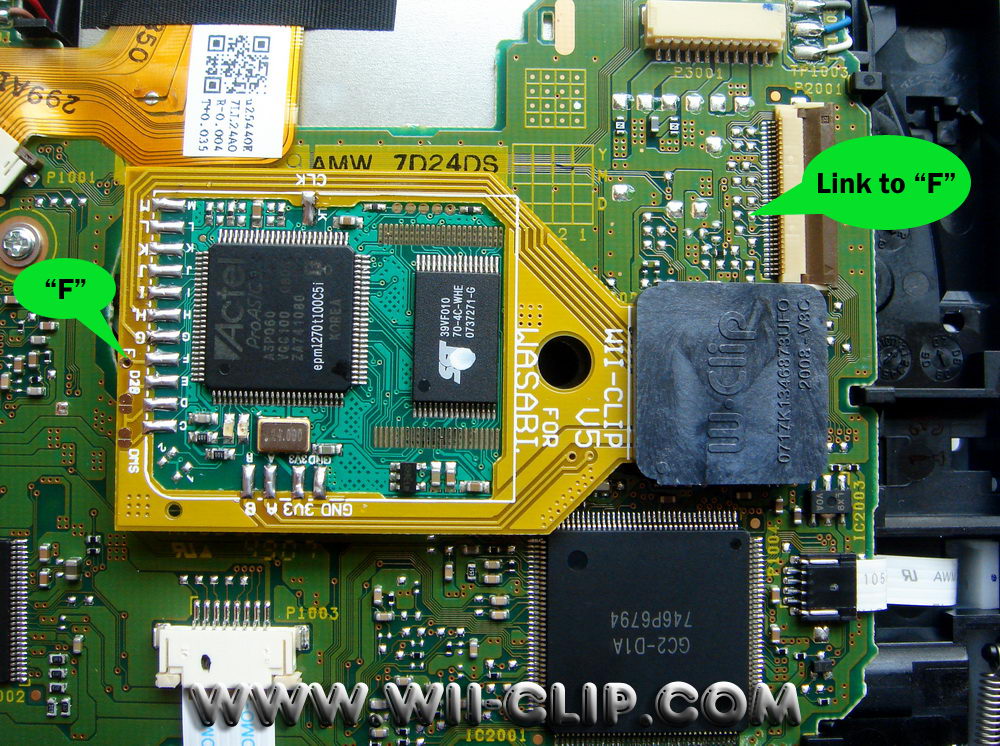

Step 2. The retail packing come with one wire, need solder this wire to point "F"
The old WASABI install diagram: 9 wires

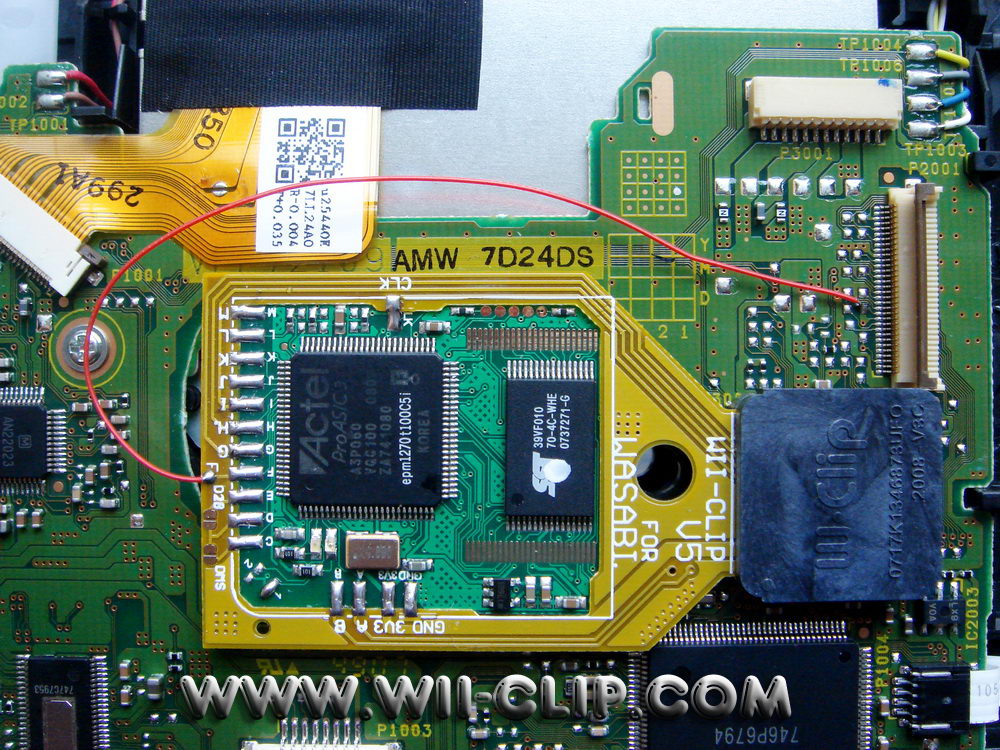

The new WII-CLIP install diagram: need solder 1 wire from CLIP "F" to WII motherboard "F" if your wii is D2C version.

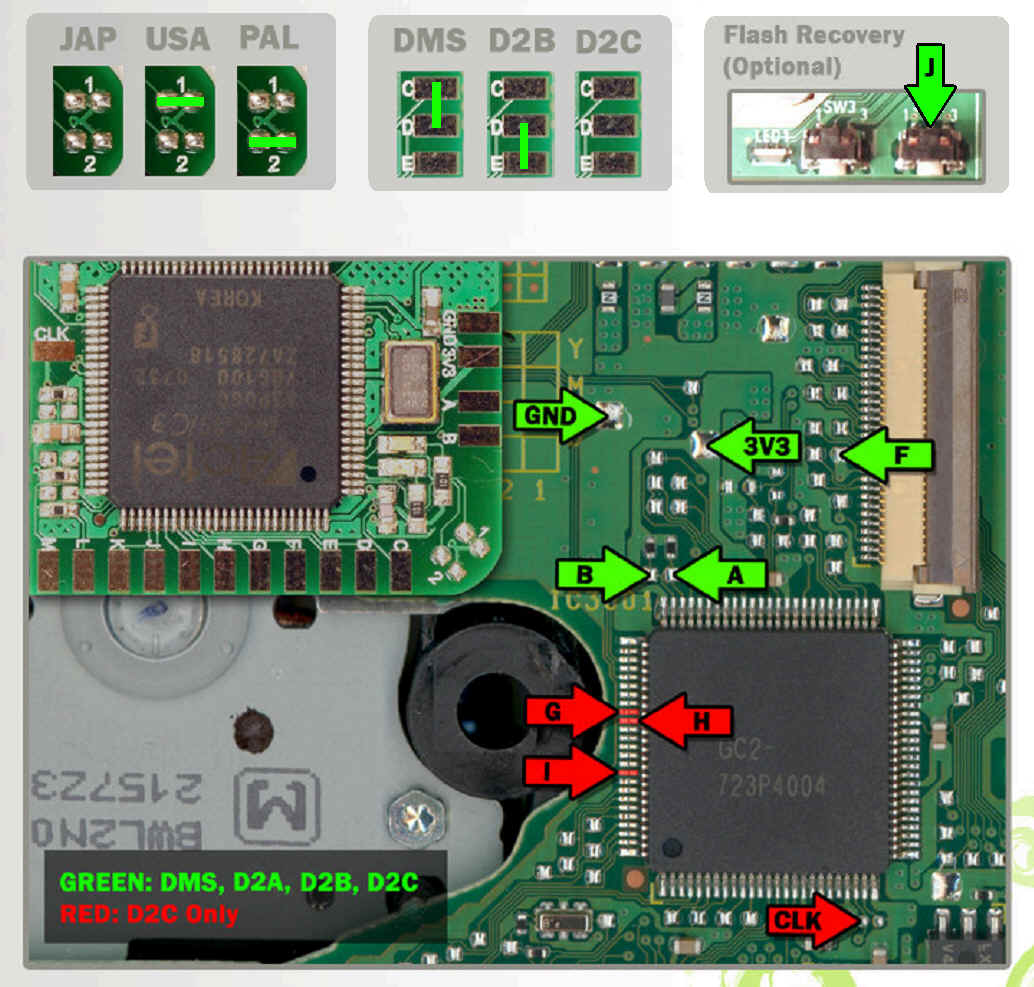

And 2 steps for setup your wasabi chip correctly :
| Step #1 | Step #2 |
|
If your WII is DMS/D2A chipset, need short the "DMS" jumper of V5 CLIP If your WII is D2B chipset, need short the "D2B" jumper of V5 CLIP If your WII is D2C chipset, don't need do anything. |
If your WII is USA version, need short the jumper
"1" of WASABI chip If your WII is PAL version, need short the jumper "2" of WASABI chip If your WII is JAP version, don't need do anything. |

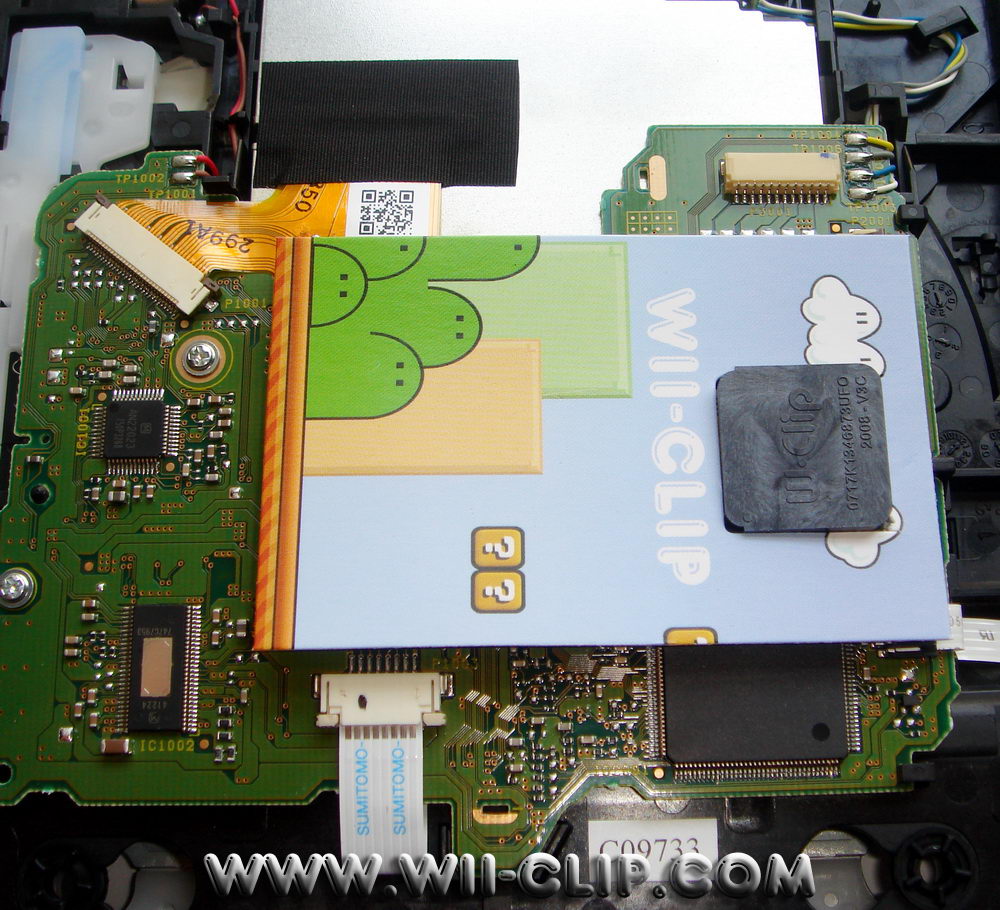

Step 3. use the protection paper to cover the whole V5 CLIP. Then all finished.

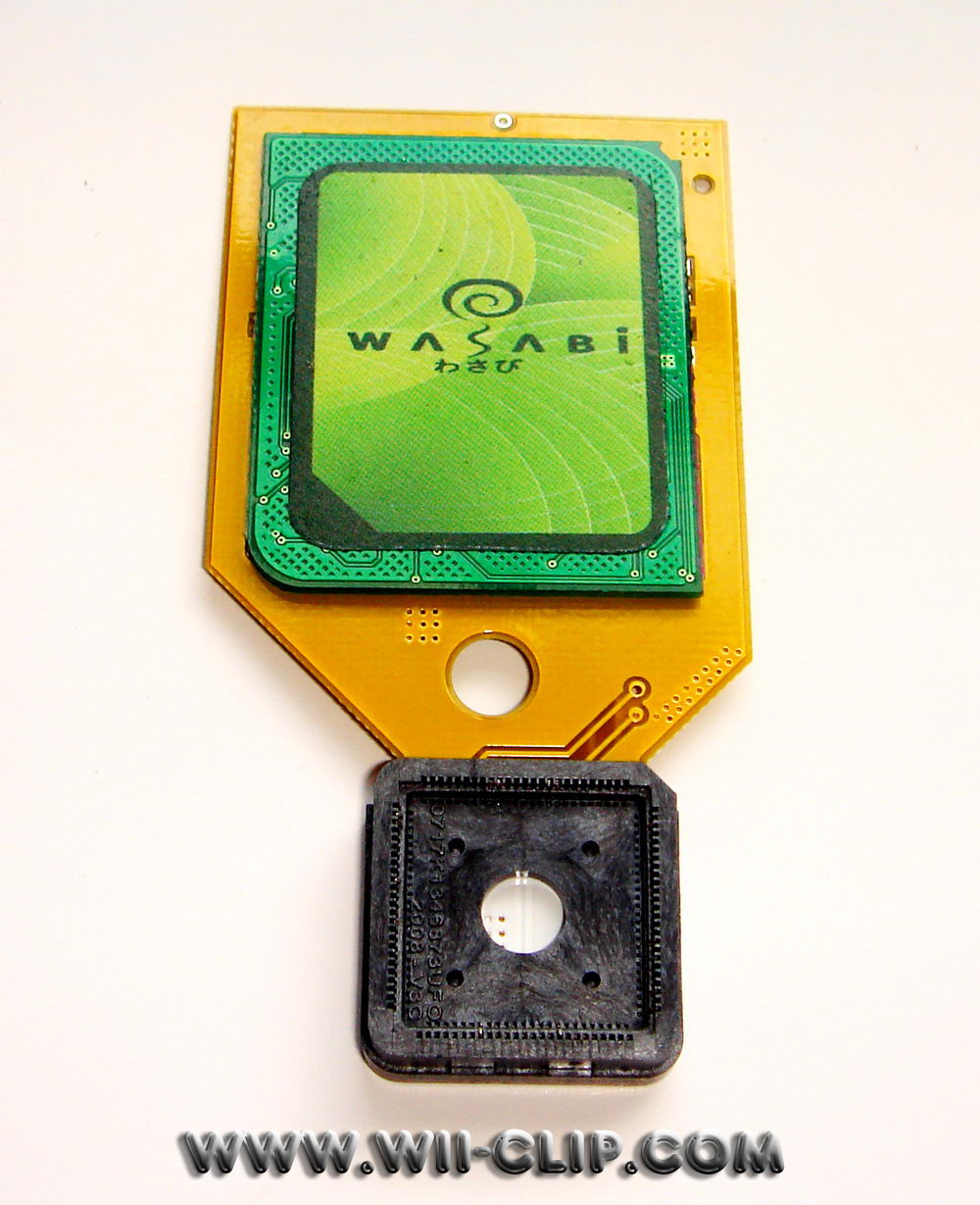

The retail packing

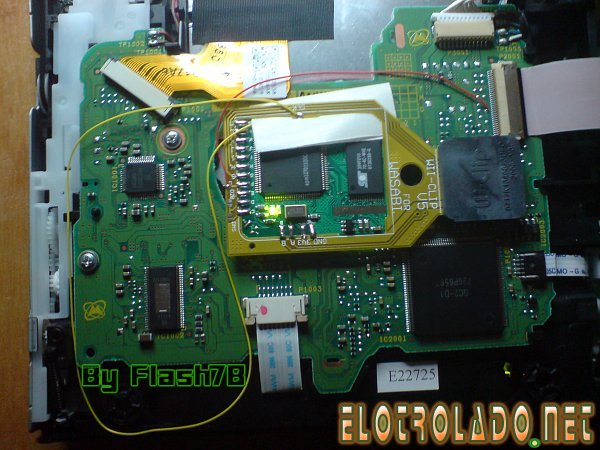

You can't make your wasabi work? check here to make the CLK wire more longer, will fix this issue!
link: http://wiinewz.com/forums/wasabi/67703-have-you-any-problem-with-wasabi-easy-fix.html Este problema se puede solucionar al menos en las maquinas que he probado alargando el cable Clk, a continuacion podreis ver el resultado. Existe otro fix usando un condensador pero no he necesitado usarlo.  |
