WII-CLIP V6 --->  Support D2CPRO 21 wires version (GW619)

Discuss : http://wiinewz.com/forums/d2ckey/68734-wii-clip-v6-support-d2cpro-21-wires-version-gw619-a.html

Status: In stock now.

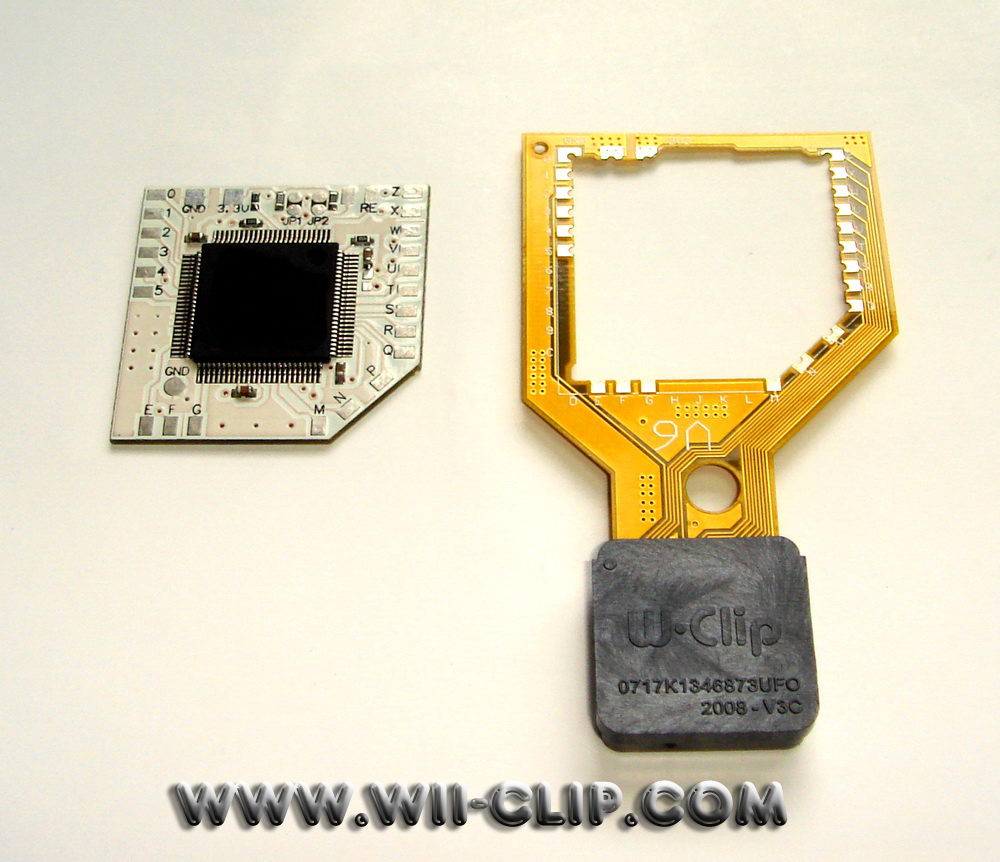

The V6 looking:

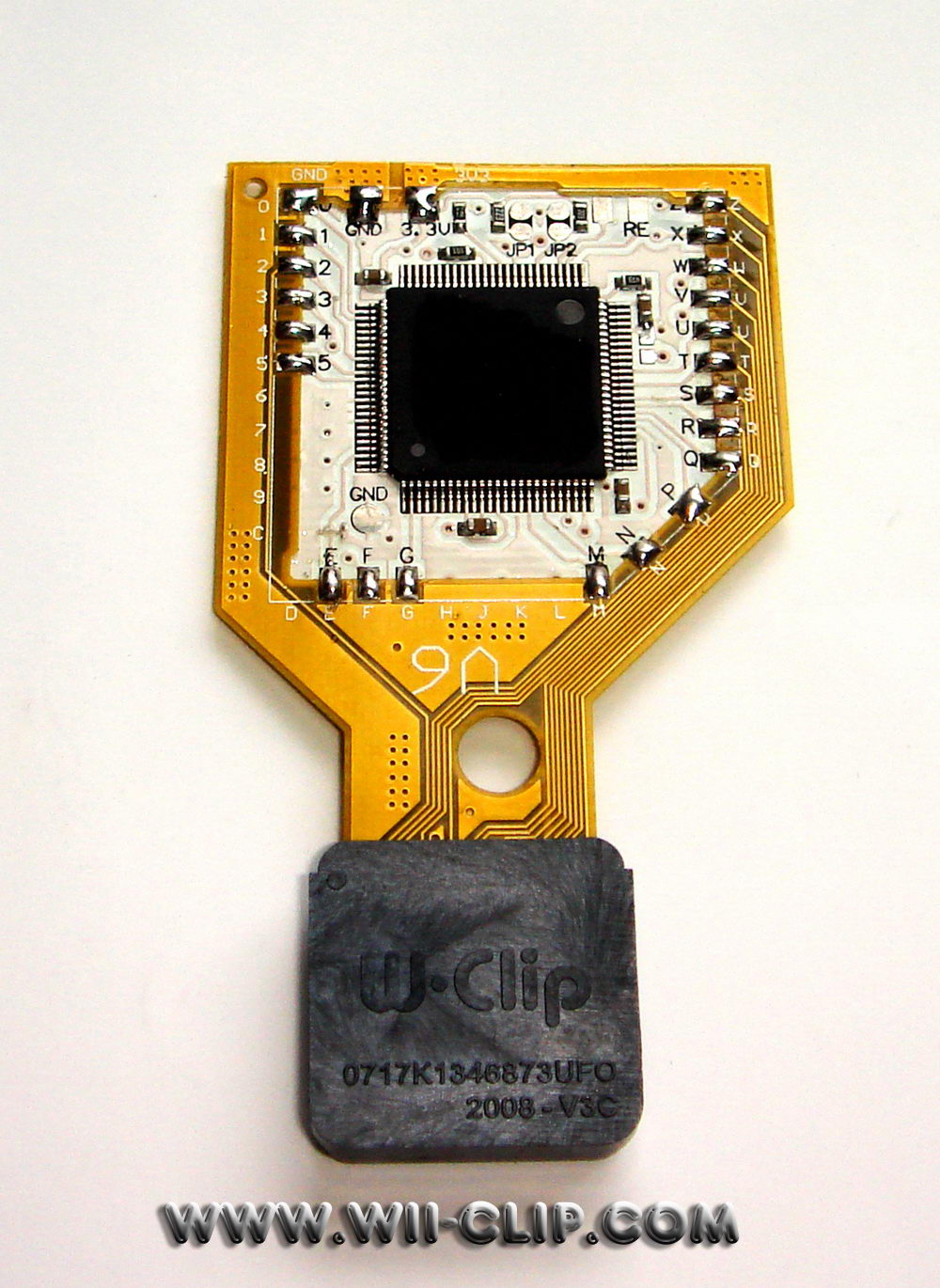

After soldered:

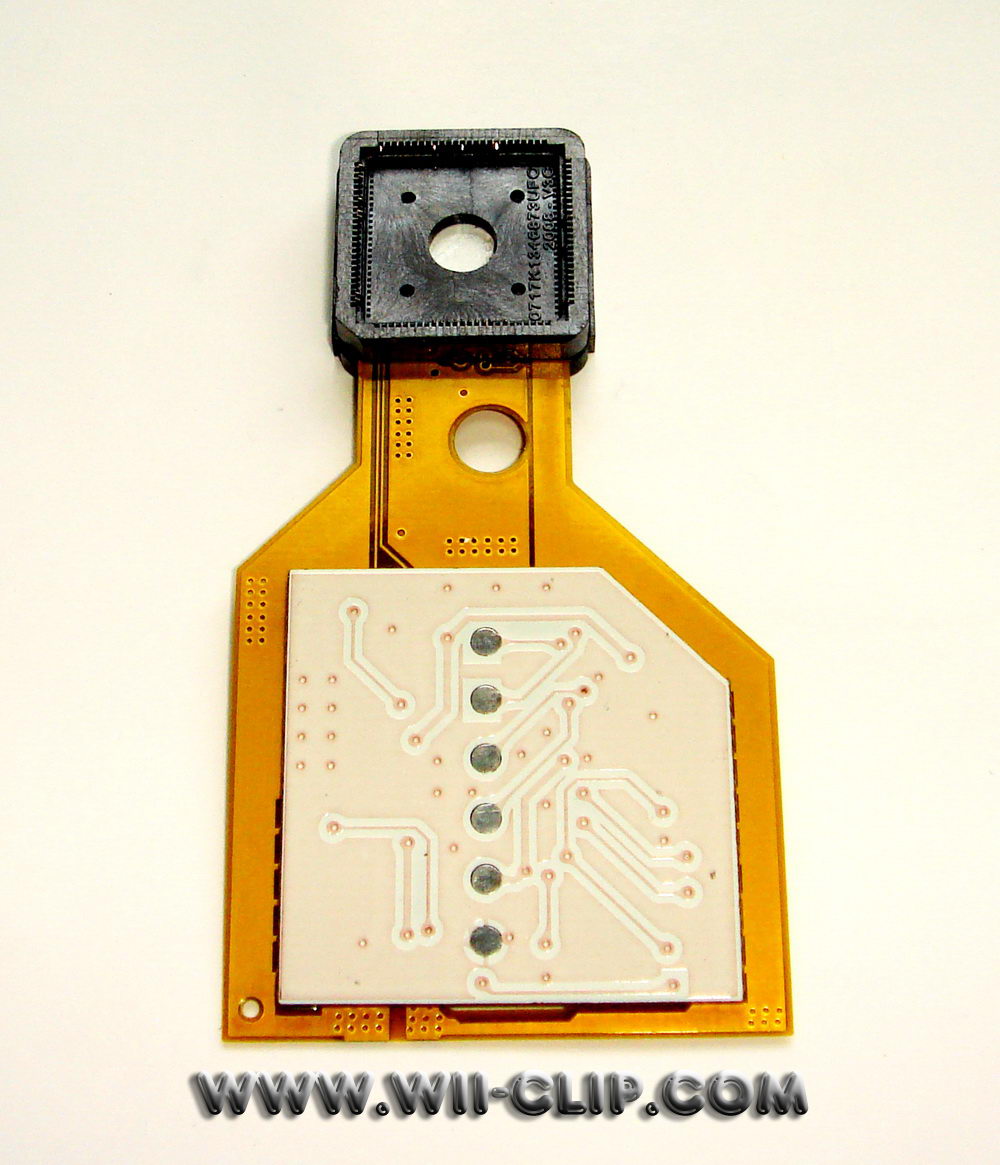

the back view, remember use the open-short protect label to cover these testing pins.

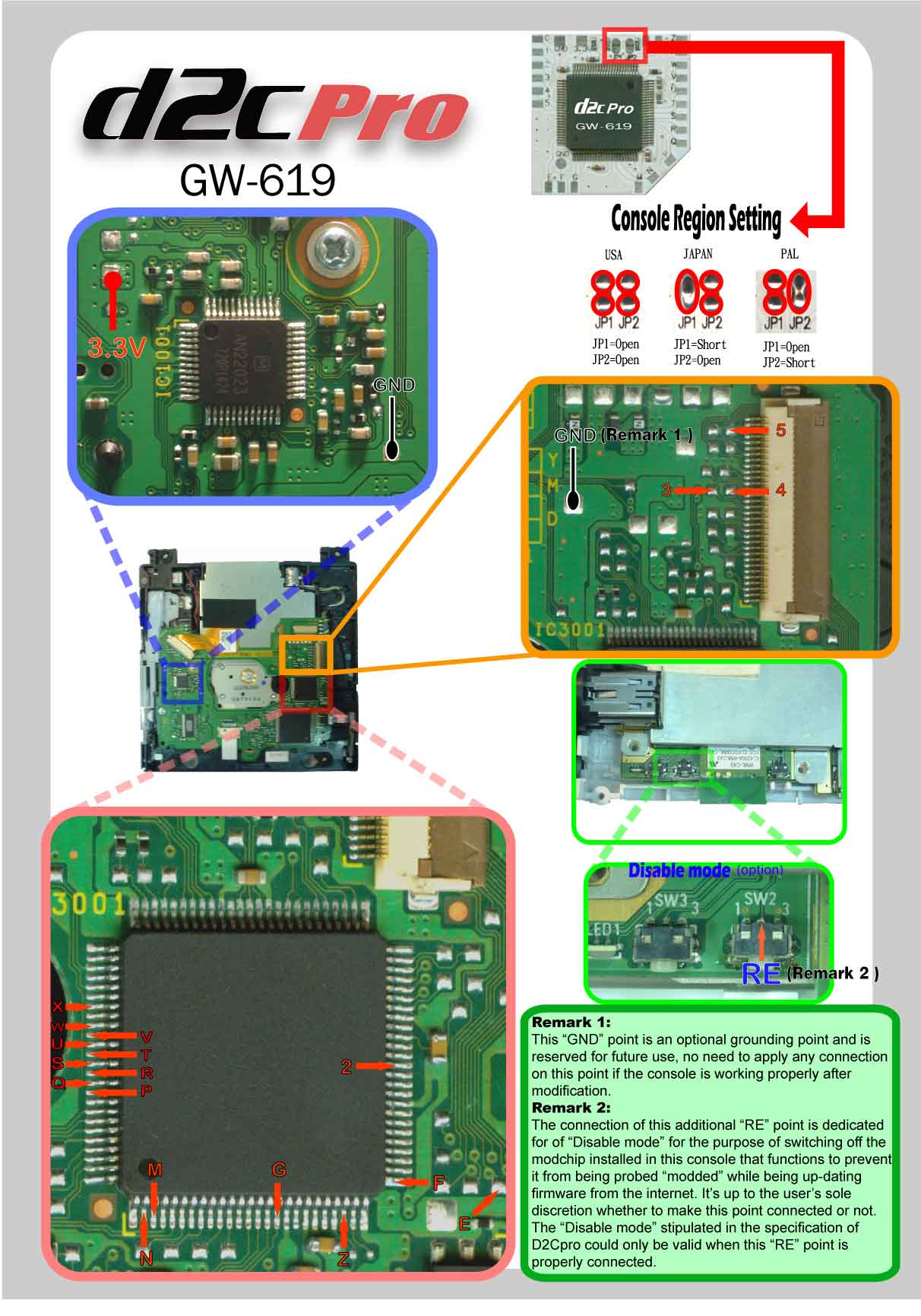

The old original install diagram:

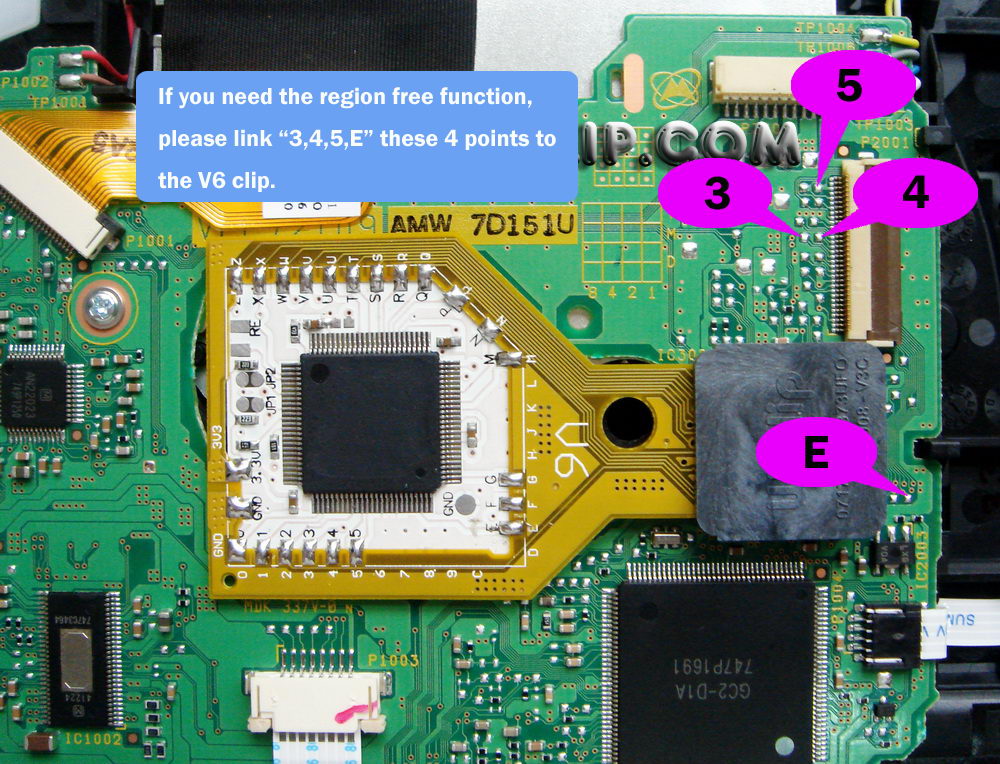

The new WII-CLIP V6 install diagram: Plug and Play, 0 wires
(If need use region free option, then need solder  3 / 4 / 5 / E  four wires)



What come with the packing:


The retail packing:


It come with 4 wires for the region free option too:
