WII-CLIP V2B --->  Support ARGON 9 wires chip

Discuss : WII-CLIP V2B ---> Support ARGON 9 wires chip

Status: In stock now

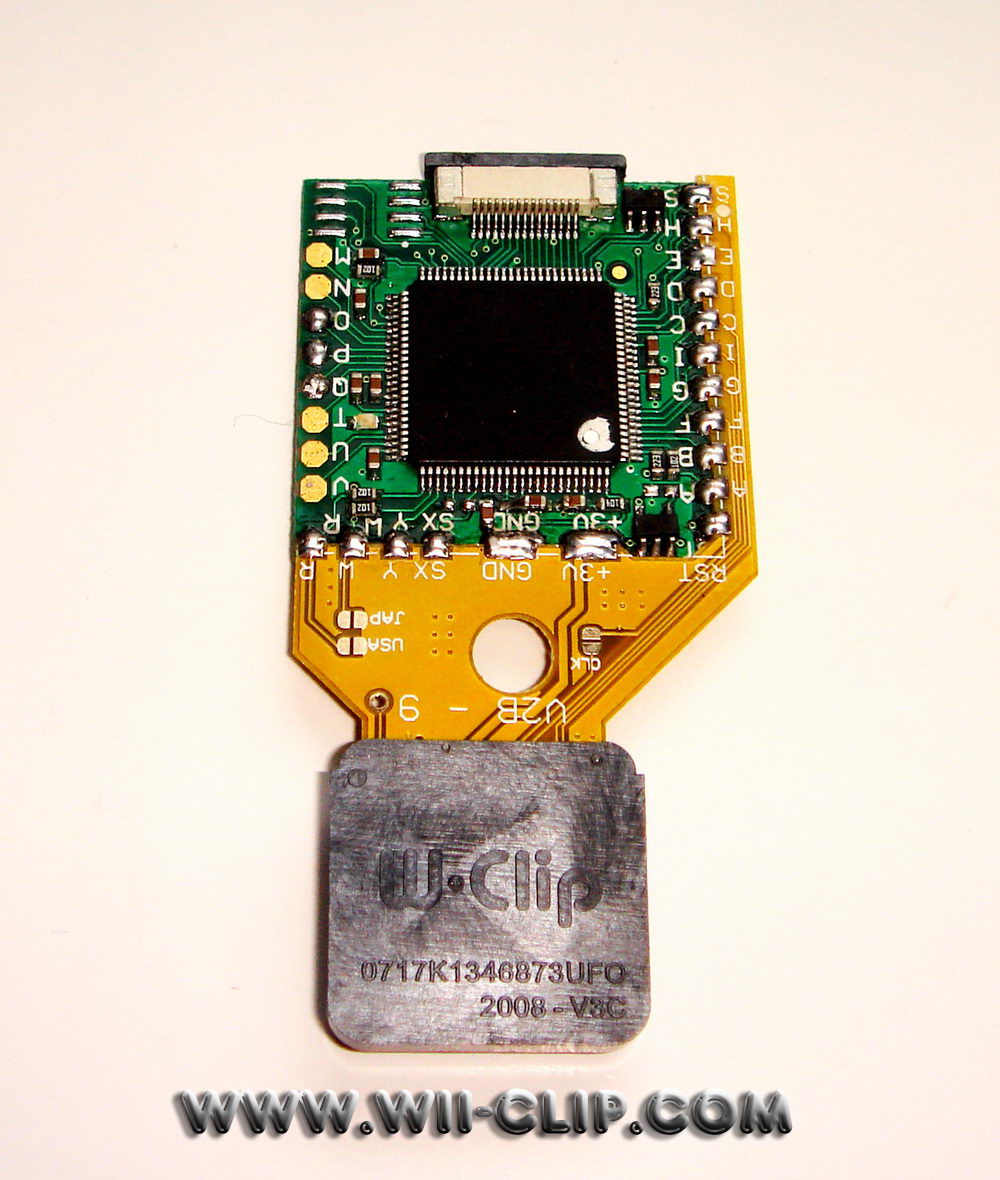

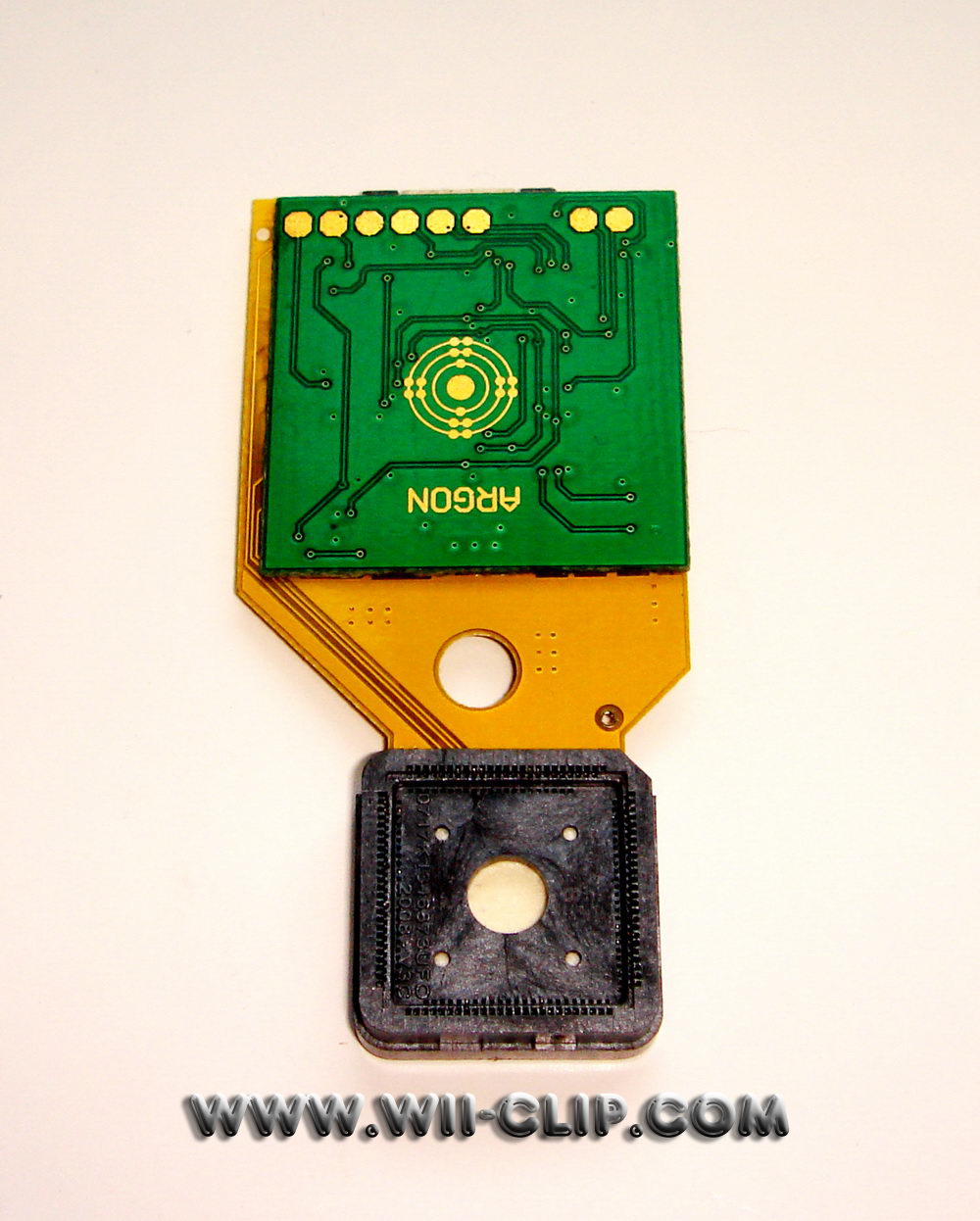

The V2B for Argon 9 wires looking:



After soldered:





The old ARGON install diagram: 9 wires

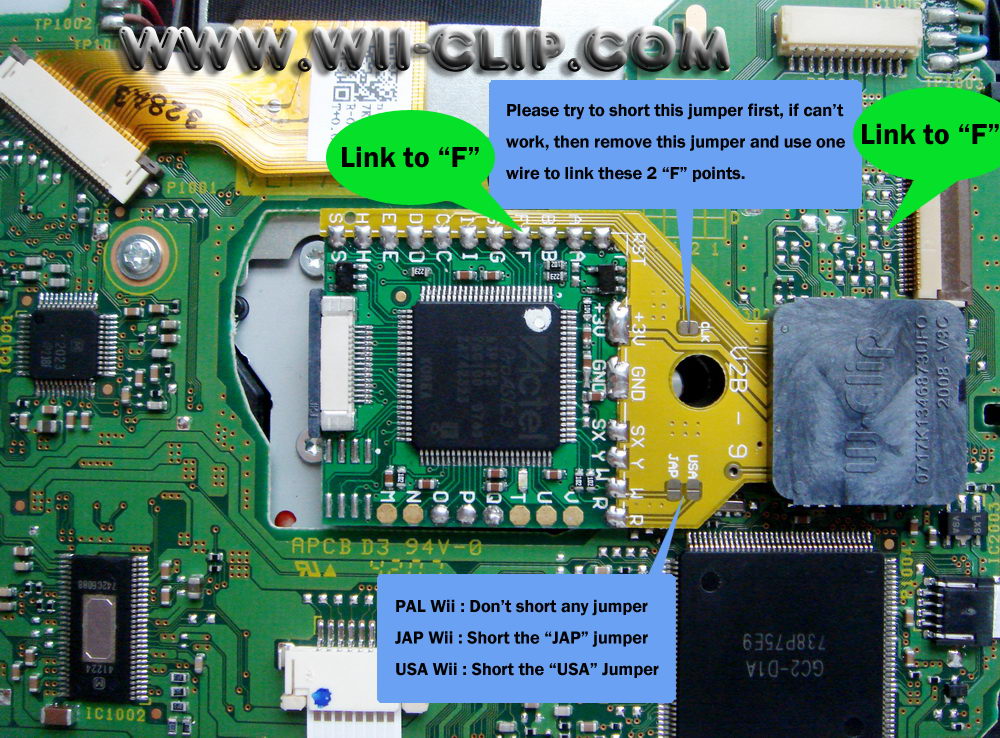

The new V2B install diagram, firstly you just need short the "CLK" jumper, and test it, if it working fine, then  you don't need solder any extra wires again. This way should work with almost wii.

If this way don't work with you, please remove the "CLK" jumper and use one wire to link these 2 "F" points.

Warning: don't keep the "CLK" jumper and link 2 "J" points at the same time!





What come with the packing.



some help for Problems with playing games on agron chip
