WII-CLIP V4 --->  Support D2pro chip

Discuss : http://wiinewz.com/forums/d2pro/67866-wii-clip-v4-support-d2pro-chip.html



The WII-CLIP V4 looking

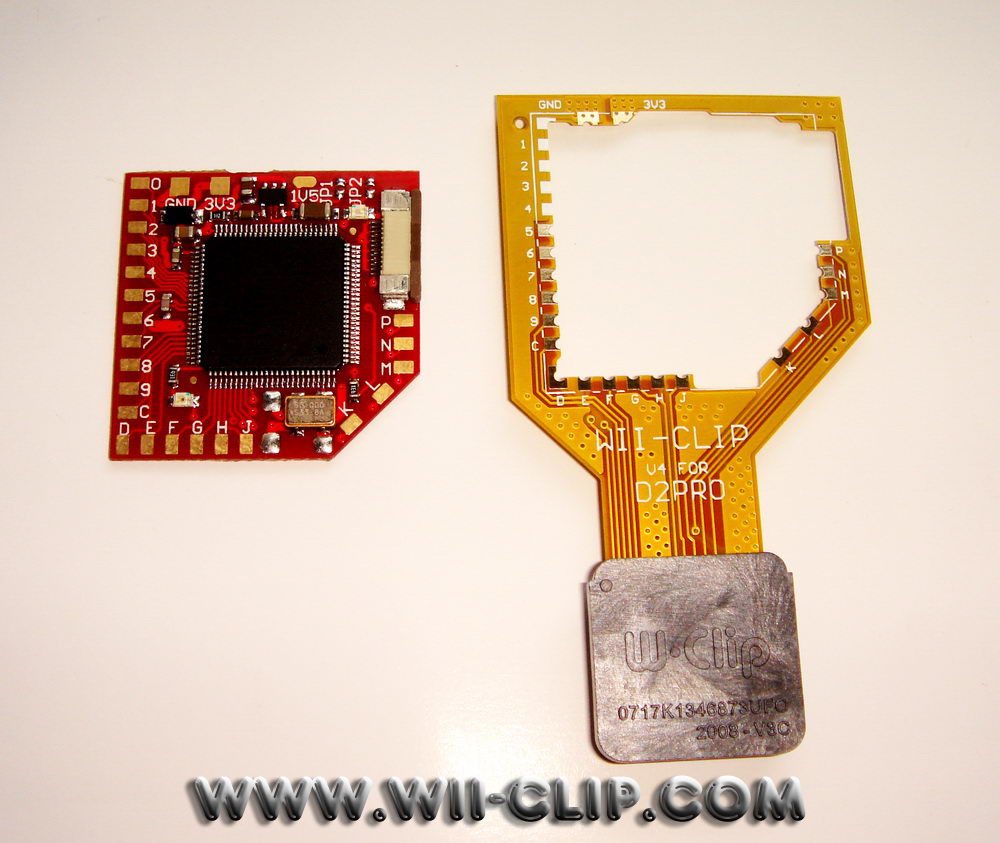

V4 and D2PRO



How to install:

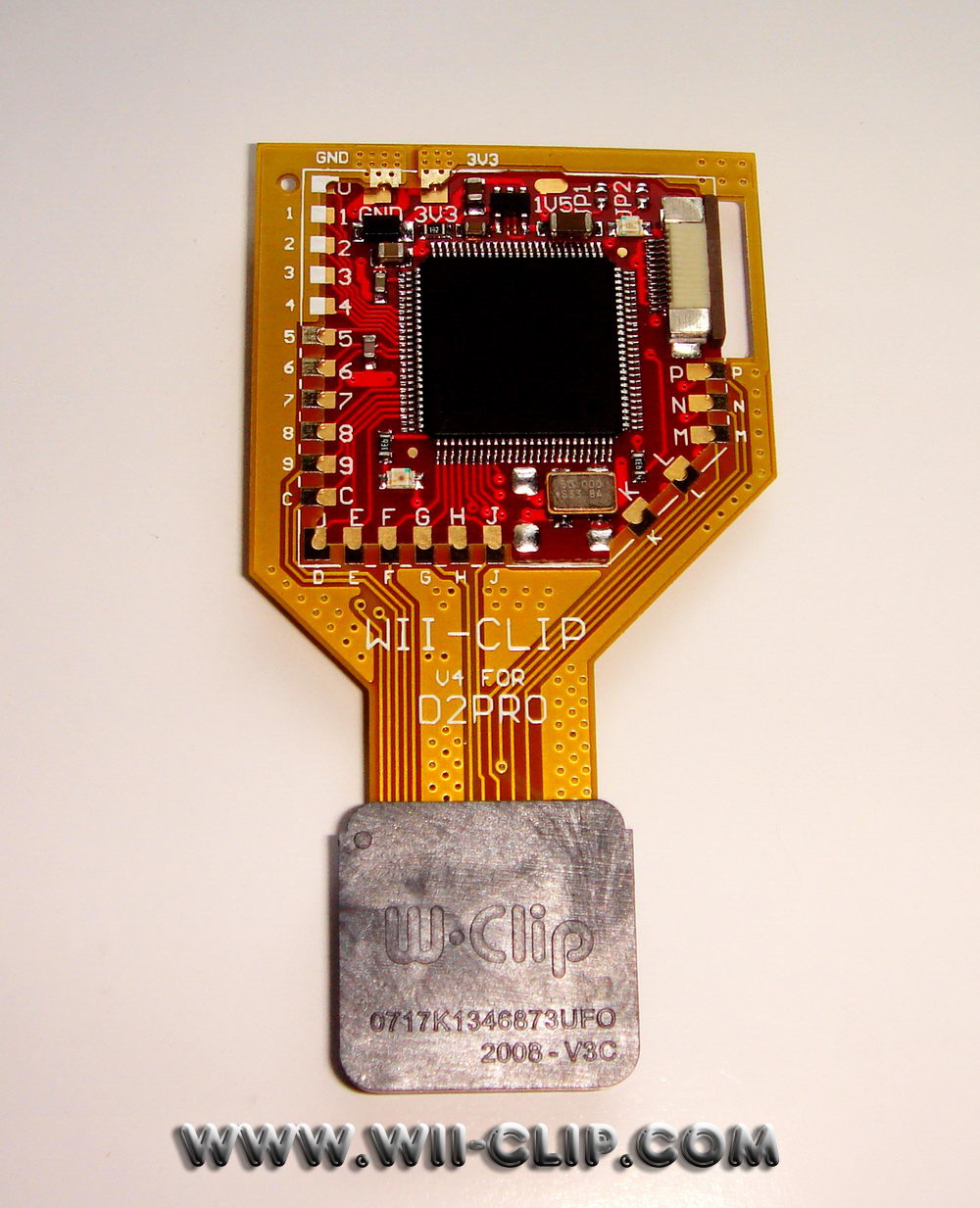

Step 1, line the WII-CLIP onto the corresponding MOD chip board, and solder all pins.

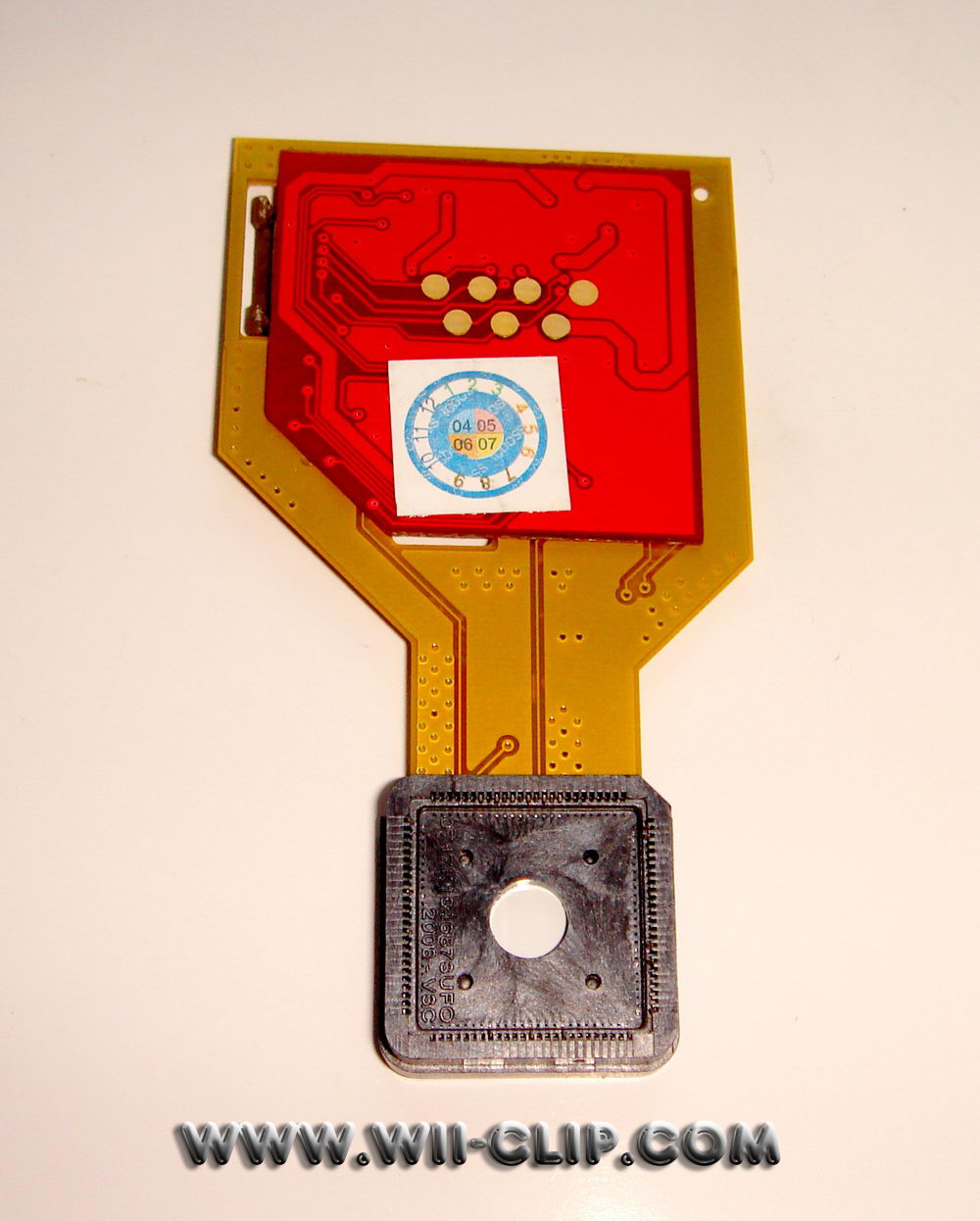

Step 2, Please use the "protect label" to cover these test points, for the open-short protection.



The old D2PRO install diagram: 13/15/19 wires

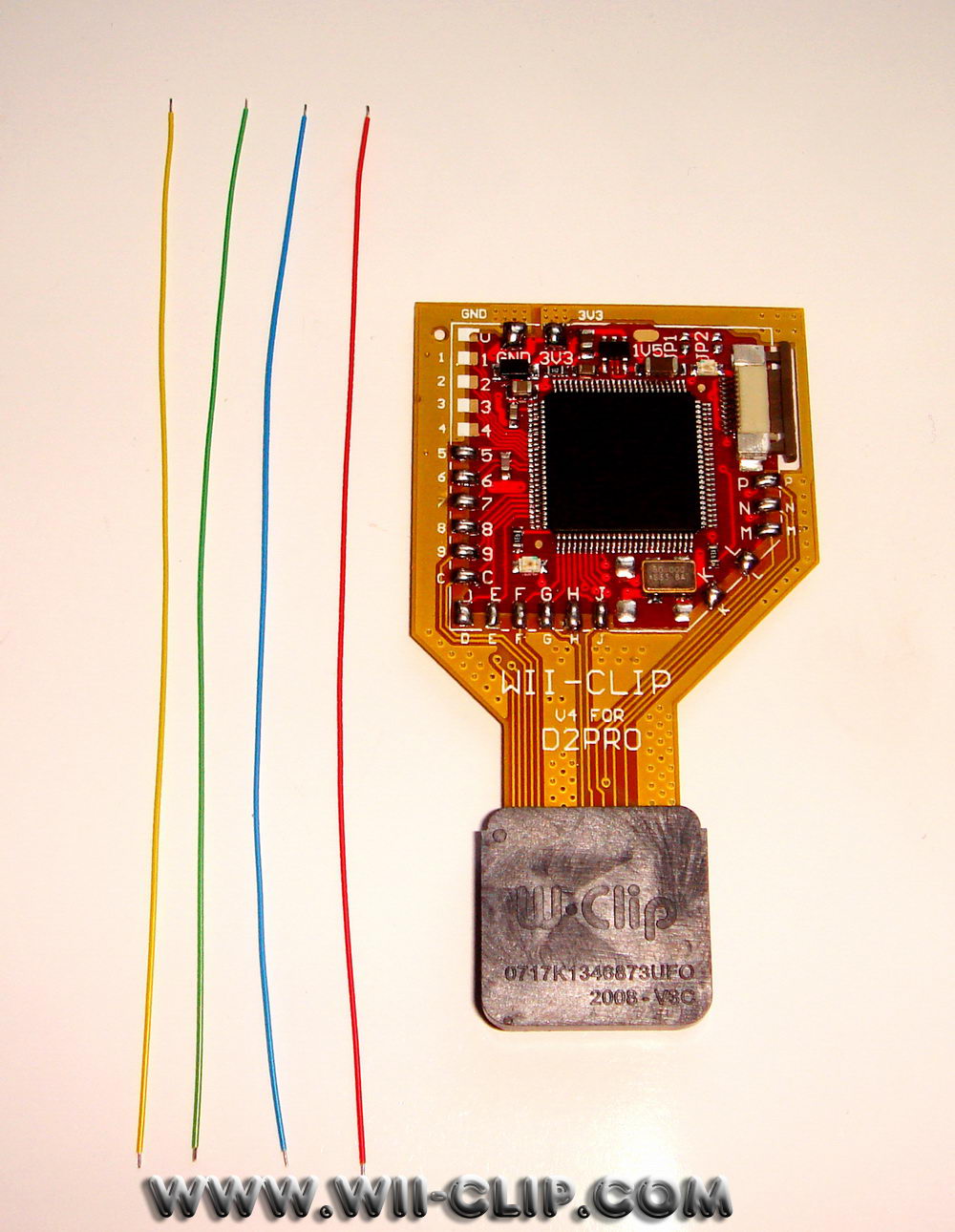

The 4 wires come with the packing.

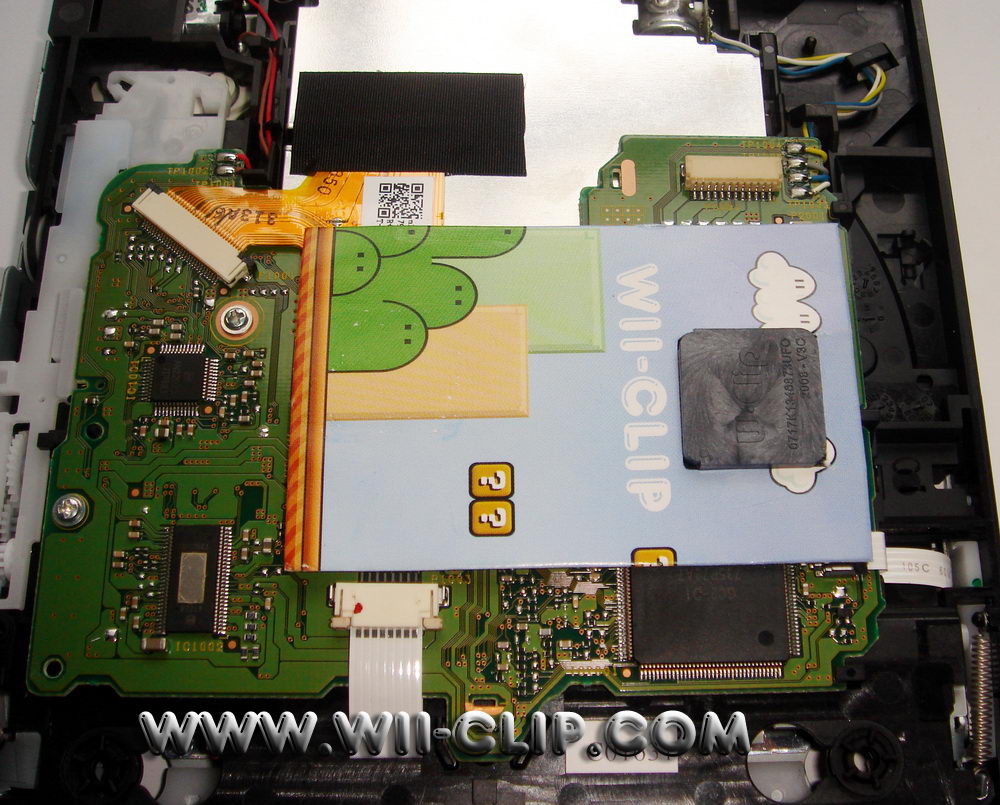

The new WII-CLIP install diagram: Plug and Play, 0 wires
If you don't need the region free function, just pass the next step.

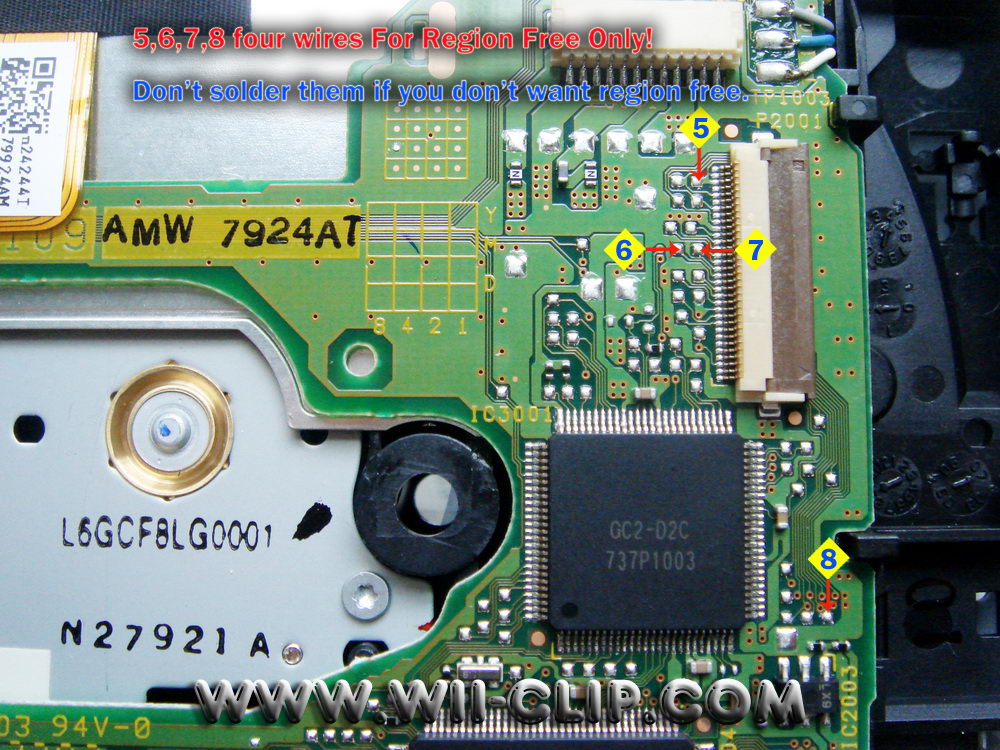

If need use region free option, then need solder  5 / 6 / 7 / 8  four wires) , and short the "JP1" & "JP2" to match your region:



Step 3. Plug and Play.





What come with the packing.



The retail packing.

investing
some funny DIY for D2pro 9 wires:

Wii-clip V4"C" para D2Pro 9

Mensajepor kytu 30 Abr 2008 23:32

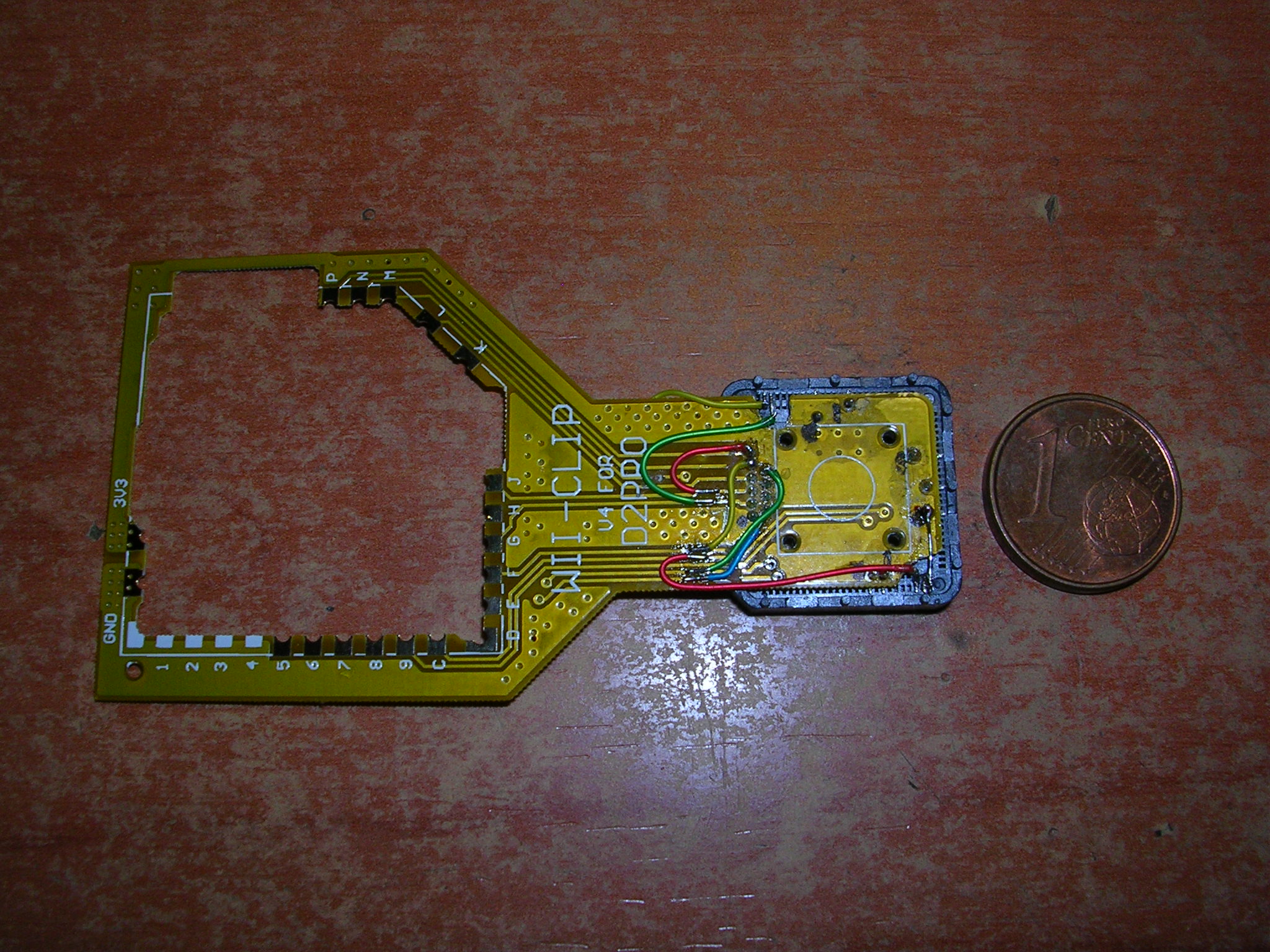

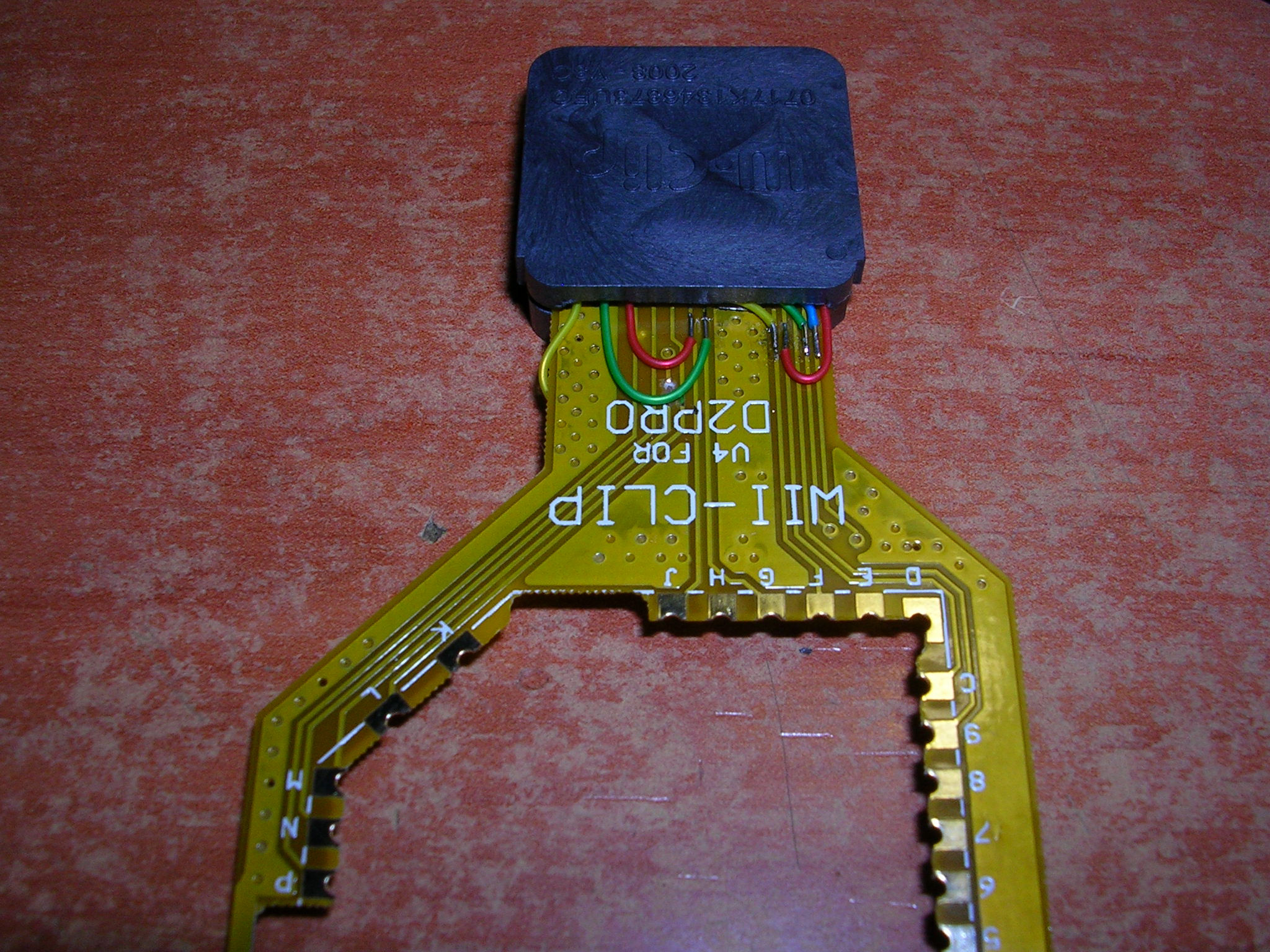

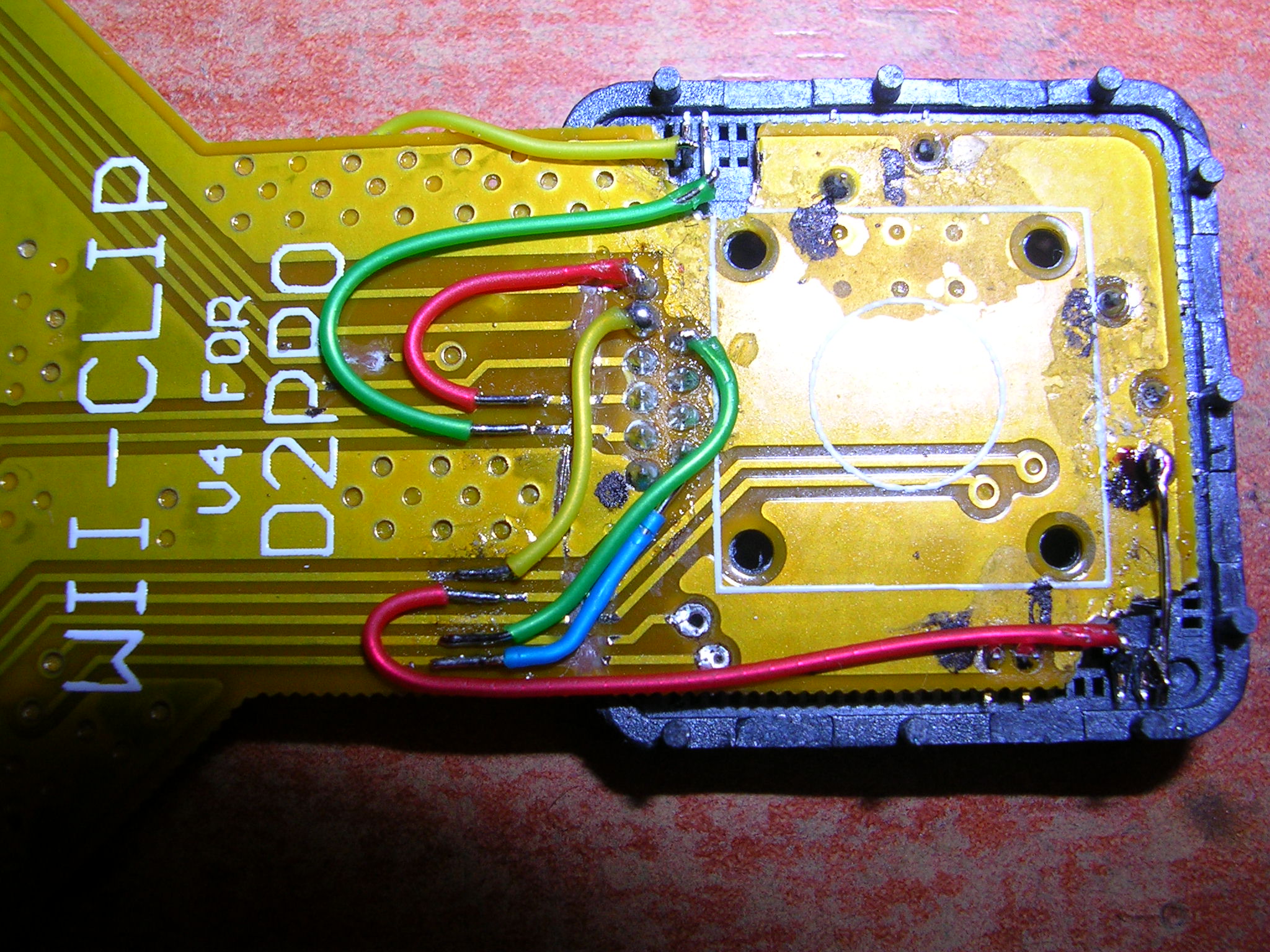

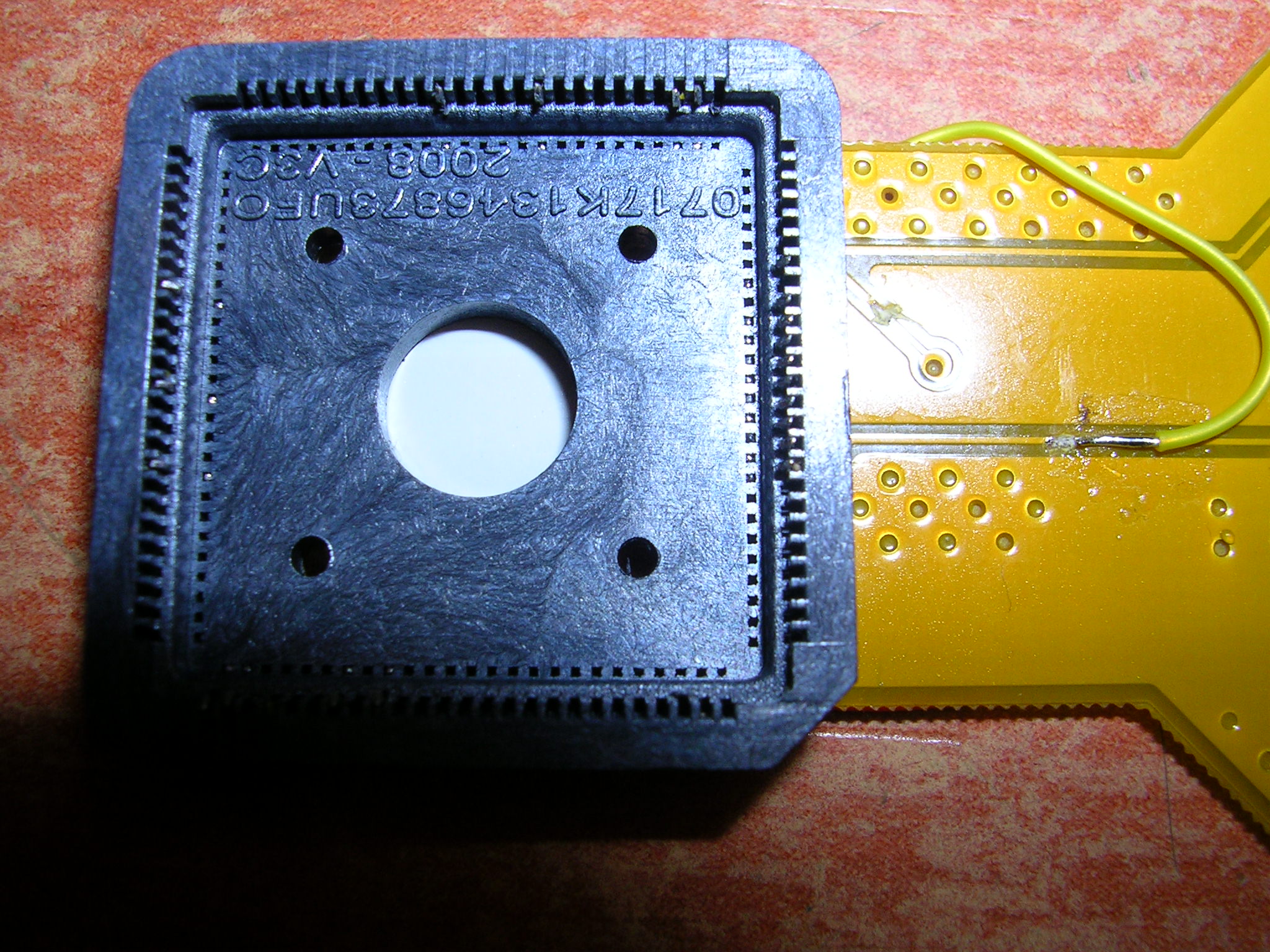

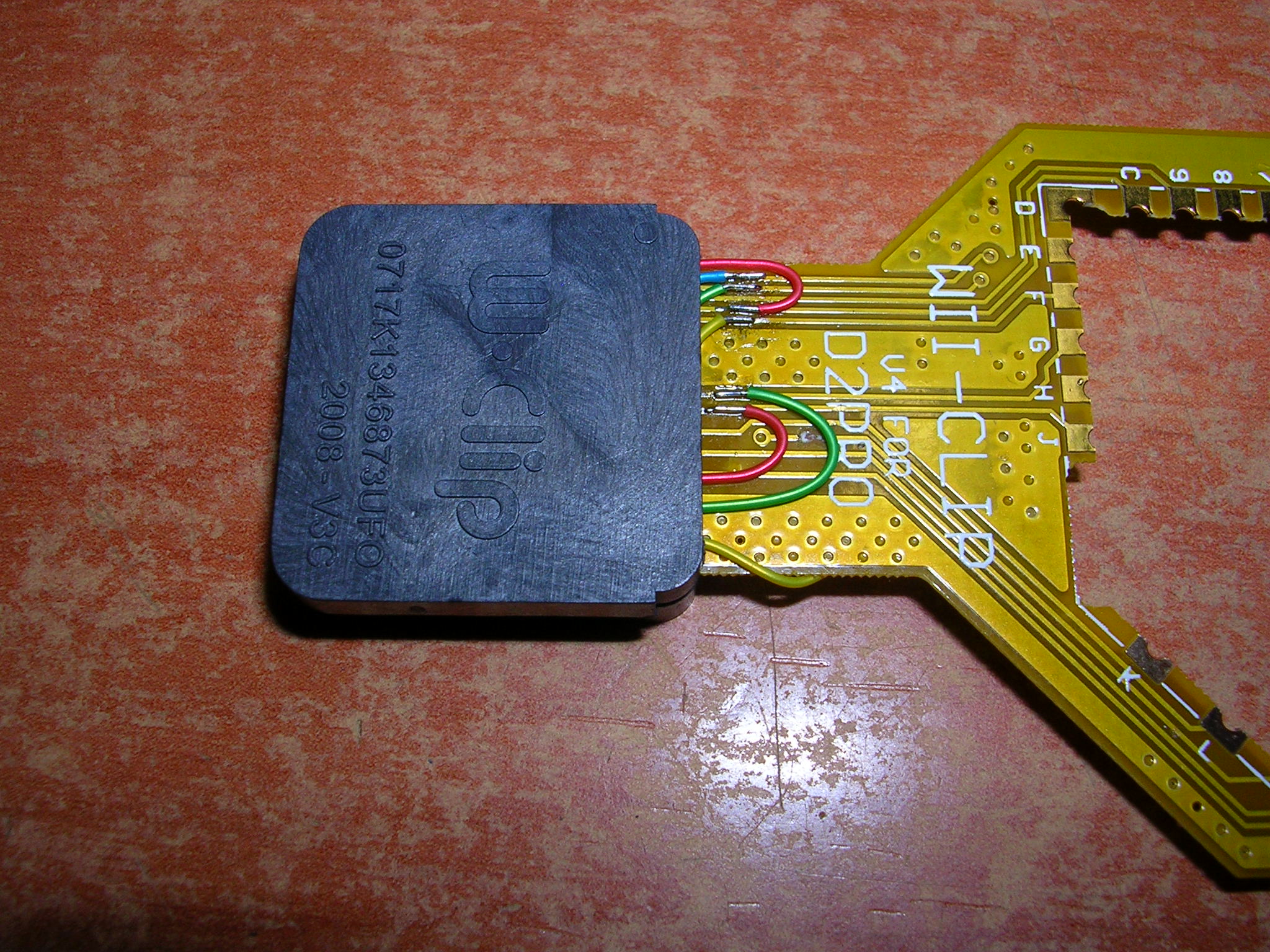

visto que ya a salido el Wii-clip V4B para el D2Pro 9, y visto que la an vuelto a cagar al no poner el punto J en el wii-clip a Flash se le ocurrio hacer una version "C", he comrpado un V4 normal y lo e modificado para la version D2Pro 9, Flash esta haciendo otro, a falta de poder probarlo aki os pongo unas fotos, opinad:

Imagen

Imagen

Imagen

Imagen

Imagen
