WII-CLIP V7B --->  Support INFECTUS2 9wires version , in stock now.

Discuss : WII-CLIP V7B ---> Support INFECTUS2 9wires version , in stock now

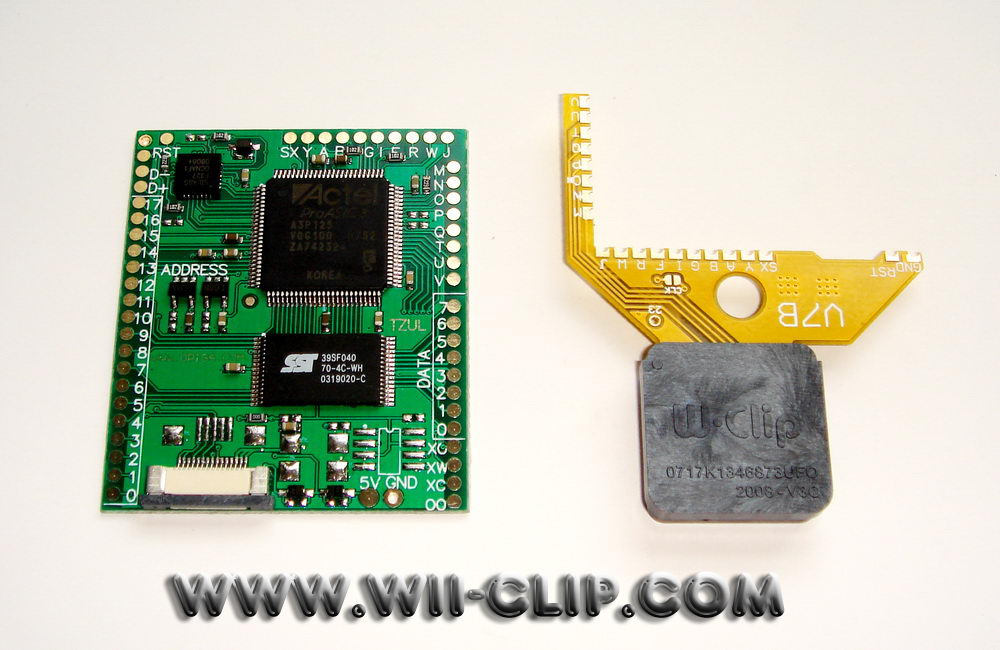

the V7B clip looking:

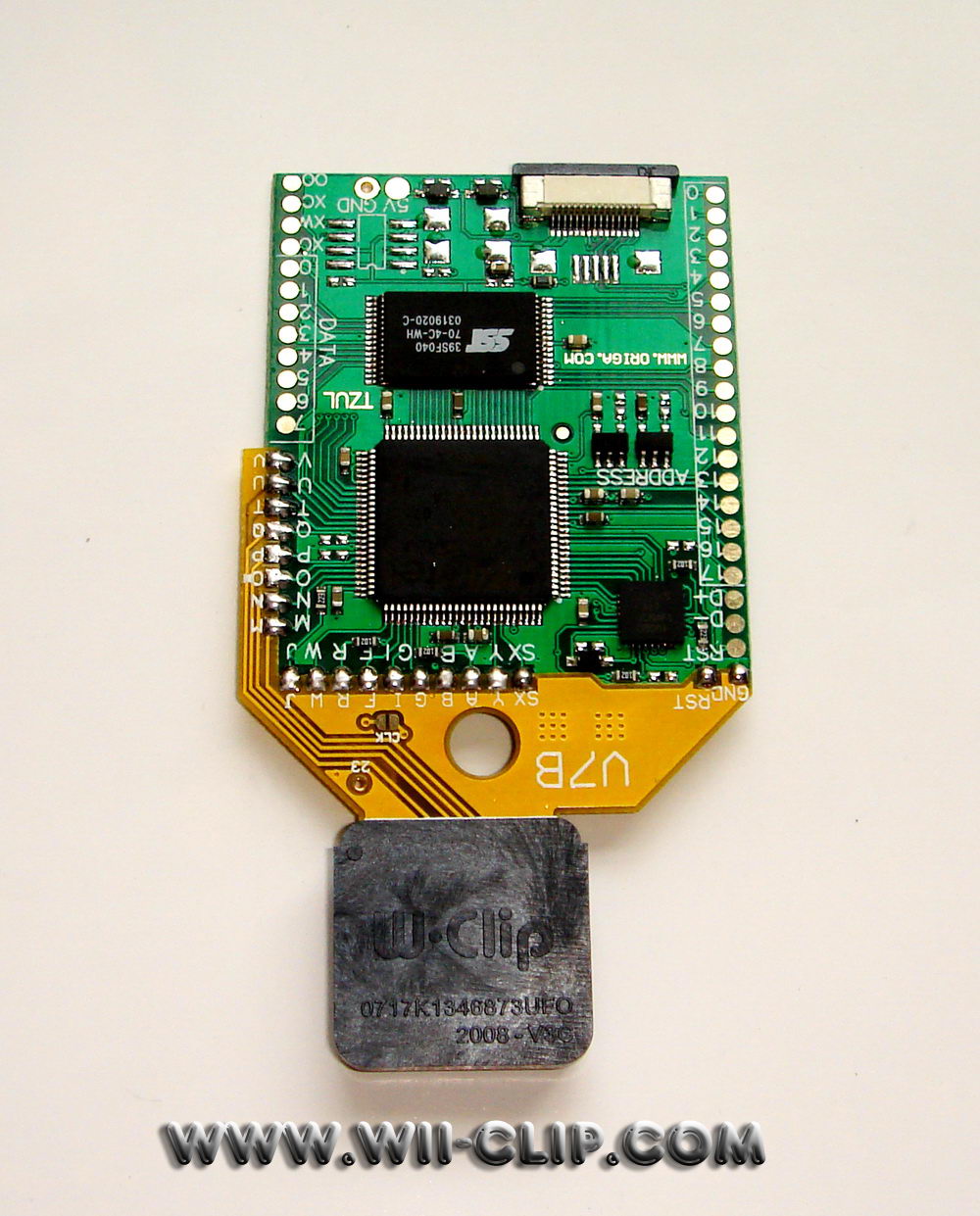

after soldered:

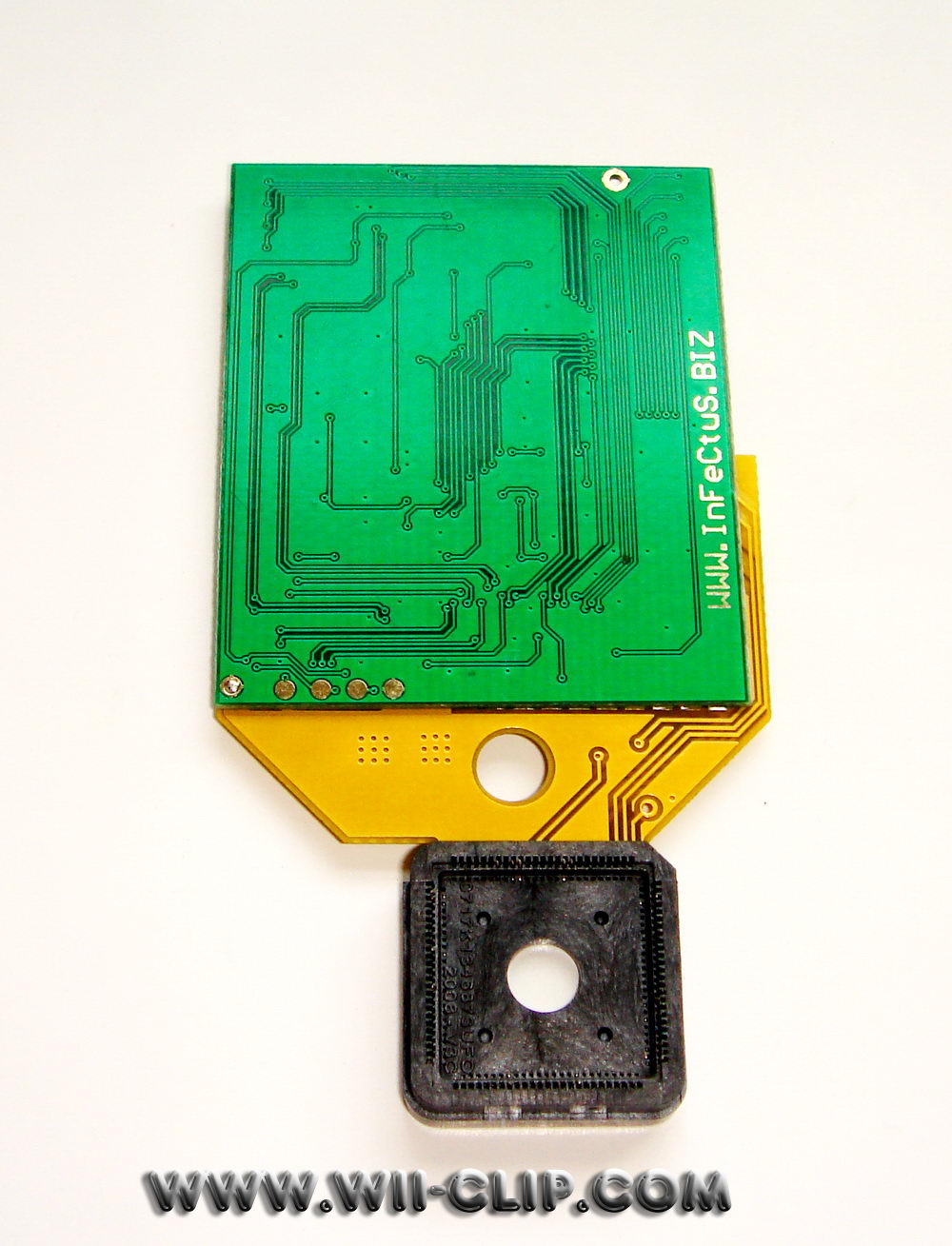

back view:



The old Infectus2 9wires diagram: --- need solder the one wire from the CLIP "O" pin to the WII motherboard  "O" point, and use one thick wire to link these two 5V power points:



The new V7B install diagram, firstly you just need short the "CLK" jumper, and test it, if it working fine, then  you don't need solder any extra wires again. This way should work with almost wii.

If this way don't work with you, please remove the "CLK" jumper and use one wire to link these 2 "O" points.

Note: remember use one thick wire to link these 2 "+5V" power points!

Warning: don't keep the "CLK" jumper and link 2 "O" points at the same time!

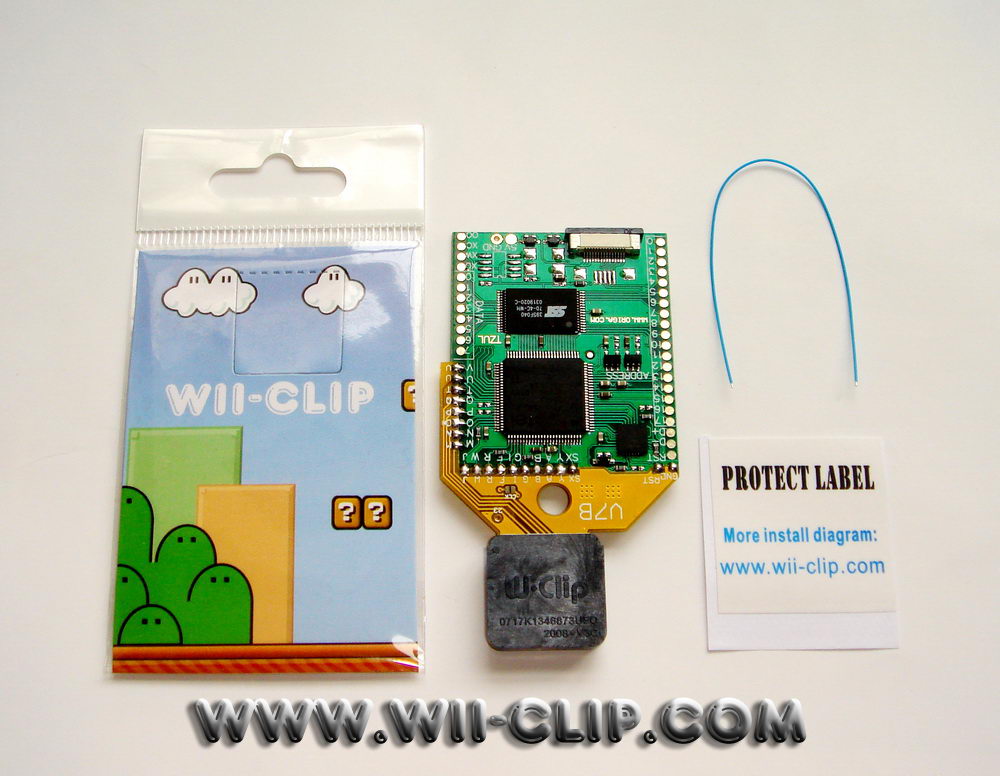

what come with the packing:

The retail packing:
